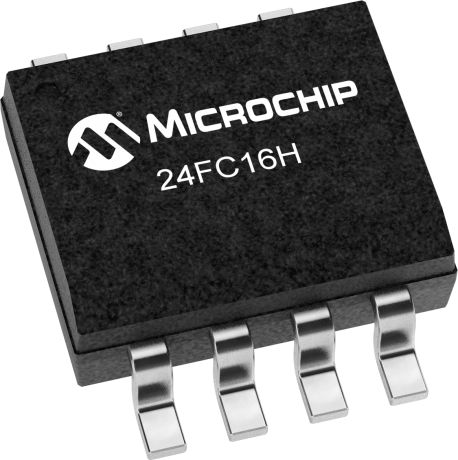

24FC16HT-I/SN More Semiconductors - ICs by Microchip Technology
16Kb I2C Serial EEPROM with Half-Array WP
| Status: | Active |
|---|---|
| Series: | 24FC16H |
| RoHS: | Compliant |
Features
| Single Supply with Operation Down to 1.7V |
| 2-Wire Serial Interface, I2C™ Compatible |
| Schmitt Trigger Inputs for Noise Suppression |
| Output Slope Control to eliminate Ground Bounce |
| 100 kHz, 400 kHz, and 1MHz Clock Compatibility |
| Page Write Time 3 ms, typical |
| Self-Timed Erase/Write Cycle |
| 16-Byte Page Write Buffer |
| Hardware Write-Protect for Half-Array (400h-7FFh) |
| ESD Protection >4,000V |
| More than 1 Million Erase/Write Cycles |
| Data Retention >200 years |
Specifications
| Density (Organization) | 16K bits (x8) |
|---|---|
| Operating Voltage Min. (V) | 1.7 |
| Oper Voltage Max (V) | 5.5 |
| Max. Clock Freq. | 1 MHz |
| Page Size (bytes) | 16 |
| Write Protected | False |
| Write Protect Scheme | Upper Half |
| Endurance | 1,000,000 |
| Data Retention (Years) | 0 |
| Battery Backup | False |
| Pins | Packaging | 8 | SOIC |
| Temp Range | -40C to +85C |
| Packing Media | Tape and reel (3300) |
Last 6 months Inventory & Pricing History
Resources
Board Design Files |
|---|
| Verilog Model - 24xx16H Devices |
Brochures |
|---|
| Serial EEPROM - Automotive Brochure |
| Corporate Product Selector Guide |
| Electronic Solutions for Medical and Fitness |
| MPLAB® X IDE Product Overview |
| Memory Products Brochure |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.078 |
| Shipping Weight (kg) | 0.230303 |
| Lead Count | 8 |
| Package Type | SOIC |
| Package Width or Size | .150In(3.90mm) |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| 16Kb I2C EEPROM, 1MHz 1.7-5.5V, 8-SOIC, IND W/HALF ARRAY WP | Microchip Technology |
| 16Kb I2C Eeprom, 1Mhz 1.7-5.5V, 8-Soic, Ind W/Half Array Wp 8 Soic 3.90Mm(.150In) T/R Rohs Compliant: Yes |Microchip Technology 24FC16HT-I/SN | Newark Electronics |
| IC: EEPROM memory | TME |
| EEPROM, AEC-Q100, 16KBIT, -40TO85DEG C | Farnell |
| EEPROM Serial I2C 16K-bit 1MHz 1.7V 8-Pin SOIC T/R | EBV Elektronik |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 24FC16HT-I/SN?
Additional datasheets, footprints and schematics for 24FC16HT-I/SN are listed on our Part Details page. You can also find images and similar parts to 24FC16HT-I/SN on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 24FC16HT-I/SN on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 24FC16HT-I/SN price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 24FC16HT-I/SN fall under?
The 24FC16HT-I/SN is listed under Semiconductors - ICs > More Semiconductors - ICs.
Can I view similar or alternative parts?
You can view similar parts to 24FC16HT-I/SN when available in the More Semiconductors - ICs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 24FC16HT-I/SN you can contact the distributor directly for product support, shipping queries etc.
Is the 24FC16HT-I/SN RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Microchip Technology.
Which authorised distributors for 24FC16HT-I/SN have stock available?
Authorised distributors including Microchip Technology, Newark Electronics, TME, Farnell and EBV Elektronik have stock available or on a lead time for 24FC16HT-I/SN.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 24FC16HT-I/SN often in real-time on the comparison pages.
What if I can't find stock of 24FC16HT-I/SN?
You can fill out our help required form which you can use to request a quote for 24FC16HT-I/SN from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
