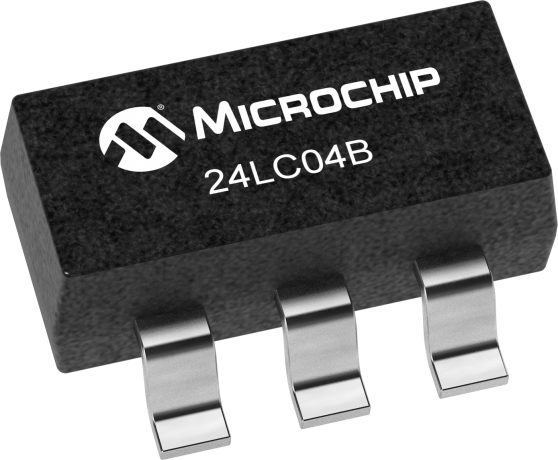

24LC04BT-E/OT by Microchip Technology
4Kb I2C compatible 2-wire Serial EEPROM
| Status: | Active |
|---|---|
| Series: | 24LC04B |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$0.30
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$0.40
|
3,000
in stock
|
Buy Now |
|
Microchip Technology
from US$0.30
|
2,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.37
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.30
|
0
in stock
|
Buy Now |
|
TME
from US$0.35
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| Single supply with operation down to 2.5V |
| Low-power CMOS technology |
| 2-wire serial interface, I2C™ compatible |
| Schmitt Trigger inputs for noise suppression |
| Output slope control to eliminate ground bounce |
| 100 kHz and 400 kHz clock compatibility |
| Page write time 3 ms, typical |
| Self-timed erase/write cycle |
| 16-byte page write buffer |
| Hardware write-protect |
| ESD protection >4,000V |
| More than 1 million erase/write cycles |
| Data retention >200 years |
Specifications
| Density (Organization) | 4K bits (x8) |
|---|---|
| Operating Voltage Min. (V) | 2.5 |
| Oper Voltage Max (V) | 5.5 |
| Max. Clock Freq. | 400 kHz |
| Page Size (bytes) | 16 |
| Write Protected | False |
| Write Protect Scheme | Whole Array |
| Endurance | 1,000,000 |
| Pins | Packaging | 5 | SOT-23 |
| Temp Range | -40C to +125C |
| Packing Media | Tape and reel (3000) |
Last 6 months Inventory & Pricing History
Resources
Data Sheets |
|---|
| 24AA04/24LC04B/24FC04 4K I2C Serial EEPROM |
Board Design Files |
|---|
| Verilog model - 24xx04 devices |
| IBIS Model - 24xx04 Devices |
Brochures |
|---|
| Serial EEPROM - Automotive Brochure |
| Corporate Product Selector Guide |
| Electronic Solutions for Medical and Fitness |
| MPLAB® X IDE Product Overview |
| Memory Products Brochure |
Supporting Collateral |
|---|
| Serial EEPROM Cross Reference Guide |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.016 |
| Shipping Weight (kg) | 0.049 |
| Lead Count | 5 |
| Package Type | SOT-23 |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| EEPROM, 4KBIT, 400KHZ, I2C, SOT-23-5 | element14 |
| 4K, 512 X 8 2.5V SERIAL EE | Microchip Technology |
| Ic, serial Eeprom,512X8,cmos, tsop,6Pin, plastic Rohs Compliant: Yes |Microchip Technology 24LC04BT-E/OT | Newark Electronics |
| IC: EEPROM memory | TME |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 24LC04BT-E/OT?
Additional datasheets, footprints and schematics for 24LC04BT-E/OT are listed on our Part Details page. You can also find images and similar parts to 24LC04BT-E/OT on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 24LC04BT-E/OT on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 24LC04BT-E/OT price breaks, MOQs, lead times, inventory and SKUs from distributors.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 24LC04BT-E/OT you can contact the distributor directly for product support, shipping queries etc.
Is the 24LC04BT-E/OT RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Microchip Technology.
Which authorised distributors for 24LC04BT-E/OT have stock available?
Authorised distributors including element14, Microchip Technology, Newark Electronics, Avnet America and TME have stock available or on a lead time for 24LC04BT-E/OT.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 24LC04BT-E/OT often in real-time on the comparison pages.
What if I can't find stock of 24LC04BT-E/OT?
You can fill out our help required form which you can use to request a quote for 24LC04BT-E/OT from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
