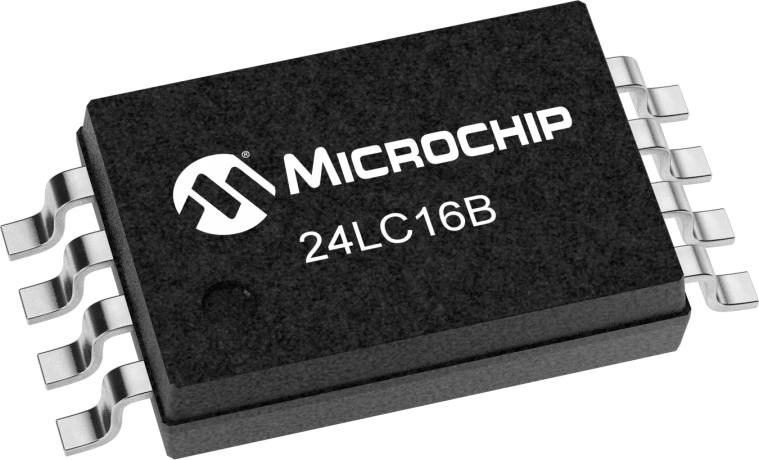

24LC16BT-E/ST More Semiconductors - ICs by Microchip Technology
16Kb I2C compatible 2-wire Serial EEPROM
| Status: | Active |
|---|---|
| Series: | 24LC16B |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$0.41
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$0.42
|
34,186
in stock
|
Buy Now |
|
Newark Electronics
from US$0.50
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.41
|
0
in stock
|
Buy Now |
|
TME
from US$0.47
|
0
in stock
|
Buy Now |
|
RS Americas
from US$0.50
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.47
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| Single supply with operation down to 2.5V for 24LC16B devices |
| Low-power CMOS technology |
| 2-wire serial interface, I2C™ compatible |
| Schmitt Trigger inputs for noise suppression |
| Output slope control to eliminate ground bounce |
| 100 kHz (2.5V) and 400 kHz clock compatibility |
| Page write time 5 ms max. |
| More than 1 million erase/write cycles |
| Data retention > 200 years |
Specifications
| Density (Organization) | 16K bits (x8) |
|---|---|
| Operating Voltage Min. (V) | 2.5 |
| Oper Voltage Max (V) | 5.5 |
| Max. Clock Freq. | 400 kHz |
| Page Size (bytes) | 16 |
| Write Protected | False |
| Write Protect Scheme | Whole Array |
| Endurance | 1,000,000 |
| Data Retention (Years) | 0 |
| Battery Backup | False |
| Pins | Packaging | 8 | TSSOP |
| Temp Range | -40C to +125C |
| Packing Media | Tape and reel (2500) |
Last 6 months Inventory & Pricing History
Resources
Data Sheets |
|---|
| 16K I2C Serial EEPROM Data Sheet |
| 24LC16B 16K I2C Serial EEPROM Extended (-55C to +125C) Operating Temperatures |
| 24LC16B 16-Kbit I2C Serial EEPROM High Temp Data Sheet |
Board Design Files |
|---|
| Verilog Model - 24xx16 Devices |
| IBIS Model - 24xx16 Devices |
Supporting Collateral |
|---|
| Serial EEPROM Cross Reference Guide |
Environmental Information
| JEDEC Indicator | e4 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.0358 |
| Shipping Weight (kg) | 0.1992 |
| Lead Count | 8 |
| Package Type | TSSOP |
| Package Width or Size | 4.4mm |
| Soldering Composition | NiPdAu |
Alternative Descriptions
| 16K, 2K X 8 2.5V SERIAL EE | Microchip Technology |
| Eeprom, 16Kbit, -40 To 125Deg C | Newark Electronics |
| IC: EEPROM memory | TME |
| 16K, 2K X 8 2.5V SERIAL EE, EXT | RS Americas |
| EEPROM, 16KBIT, -40 TO 125DEG C | Farnell |
