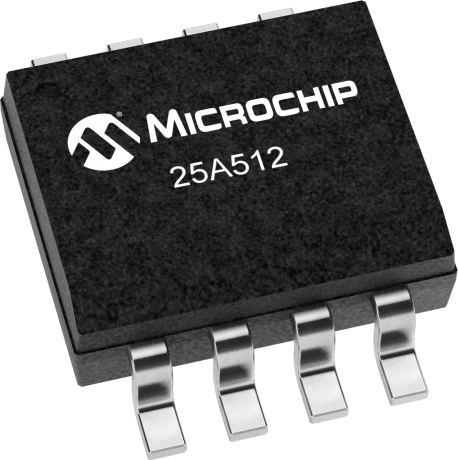

25A512-I/SN Memory by Microchip Technology
512Kb 1.7V - 3.0V SPI Serial EEPROM
| Status: | Active |
|---|---|
| Series: | 25A512 |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$1.72
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$1.72
|
1,900
in stock
|
Buy Now |
|
Avnet America
from US$1.72
|
0
in stock
|
Buy Now |
|
TME
from US$2.01
|
0
in stock
|
Buy Now |
|
element14
from US$2.36
|
0
in stock
|
Buy Now |
|
Farnell
from US$2.08
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| 64K x 8-bit (512 Kbit) |
| Supports SPI modes 0 and 3 |
| Up to 10 MHz clock frequency |
| Self-Timed Erase and Write Cycles (5 ms max.) |
| Read current: 10 mA (Max) at 10 MHz |
| Write current: 5 mA (Max) at 10 MHz |
| Standby current: 10 µA (Max) at 3.0V |
| Deep power-down current: 1 µA (Max) at 2.5 V |
| Block Write Protection: Protect 1/4, 1/2 or Entire Array |
| More than 1 million erase/write cycles |
| Data retention > 200 years |
| Industrial (I): -40°C to +85°C |
| Factory Programming Available |
| Available in standard package 8-lead SOIC and advanced package 8-lead TSSOP |
Specifications
| Density (Organization) | 512 Kbit |
|---|---|
| Operating Voltage Min. (V) | 1.7 |
| Oper Voltage Max (V) | 3 |
| Max. Clock Freq. | 10 MHz |
| Page Size (bytes) | 128 |
| Write Protected | True |
| Write Protect Scheme | Quarter, Half, Whole Array |
| Endurance | 1,000,000 |
| Data Retention (Years) | 200 |
| Bus Modes | SPI |
| Battery Backup | False |
| Pins | Packaging | 8 | SOIC |
| Temp Range | -40C to +85C |
| Packing Media | Tube (100) |
Last 6 months Inventory & Pricing History
Resources
Data Sheets |
|---|
| 25A512 512 Kbit SPI Bus Serial EEPROM Data Sheet |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.078 |
| Shipping Weight (kg) | 0.25 |
| Lead Count | 8 |
| Package Type | SOIC |
| Package Width or Size | .150In(3.90mm) |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| 512k SPI Serial EEPROM on 200K | Microchip Technology |
| EEPROM Serial-SPI 512K-bit 64K x 8 1.8V/2.5V 8-Pin SOIC N Tube | Avnet America |
| IC: EEPROM memory | TME |
| SERIAL EEPROM, 512KBIT, 10MHZ, SOIC-8 | element14 |
