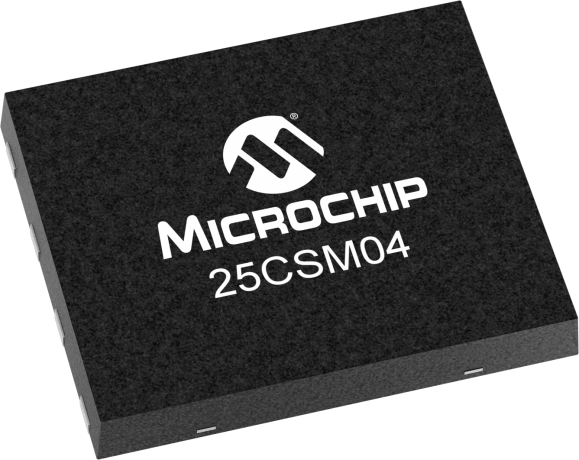

4Mb SPI Serial EEPROM
| Status: | Active |
|---|---|
| Series: | 25CSM04 |
| RoHS: | Compliant |
Features
| 524,288 x 8 bit; page size of 256 bytes |
| Byte or sequential reads; byte or page writes |
| Self-timed write cycle (5 ms maximum) |
| Security register featuring preprogrammed 128-bit serial number and 256-byte user-programmable lockable ID page |
| Built-in Error Correction Code (ECC) Logic with ECC Status bit via the STATUS register |
| JEDEC(R) SPI Manufacturer Read ID Support |
| High-Speed Clock Frequency of 8MHz at Vcc > 3.0V; 5MHz at Vcc >2.5V |
| Legacy Write Protection Mode with a quarter, half, or entire array protection |
| Enhanced Software Write Protection Mode with user-definable partitions and each partition settable with unique protection behavior |
| Write current: 3.0mA at 5V; Read current: 3.0mA at 5V, 8MHz, Standby Current 1.0uA at 2.5V |
| More than one million erase/write cycles |
| Data Retention > 100 years |
| ESD Protection > 4000V |
| Industrial Temp Range |
Specifications
| Density (Organization) | 4 Mbit |
|---|---|
| Operating Voltage Min. (V) | 2.5 |
| Oper Voltage Max (V) | 5.5 |
| Max. Clock Freq. | 8 MHz |
| Page Size (bytes) | 256 |
| Write Protected | True |
| Write Protect Scheme | Software Configurable |
| Endurance | 1,000,000 |
| Data Retention (Years) | 0 |
| Bus Modes | SPI |
| Battery Backup | False |
| Pins | Packaging | 8 | TDFN-S |
| Temp Range | -40C to +85C |
| Packing Media | Tape and reel (2000) |
Last 6 months Inventory & Pricing History
Resources
Data Sheets |
|---|
| 25CSM04 - 4-Mbit SPI Serial EEPROM With 128-Bit Serial Number and Enhanced Write Protection Data Sheet |
Board Design Files |
|---|
| IBIS Model - 25CSM04 Device |
| Verilog Model - 25CSM04 Device |
Brochures |
|---|
| Corporate Product Selector Guide |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.0738 |
| Shipping Weight (kg) | 0.2 |
| Lead Count | 8 |
| Package Type | TDFN-S |
| Package Width or Size | 6x5x0.8mm |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| Eeprom, 4Mbit, -40 To 85Deg C | Newark Electronics |
| IC: FLASH memory | TME |
| 4M SPI SEEPROM | Microchip Technology |
| EEPROM, 4MBIT, -40 TO 85DEG C | Farnell |
| EEPROM Serial SPI 4Mbit 512K X 8 2.5V to 5.5V 8-Pin TDFN-S T/R | EBV Elektronik |
