26604100 KK 396 by Molex

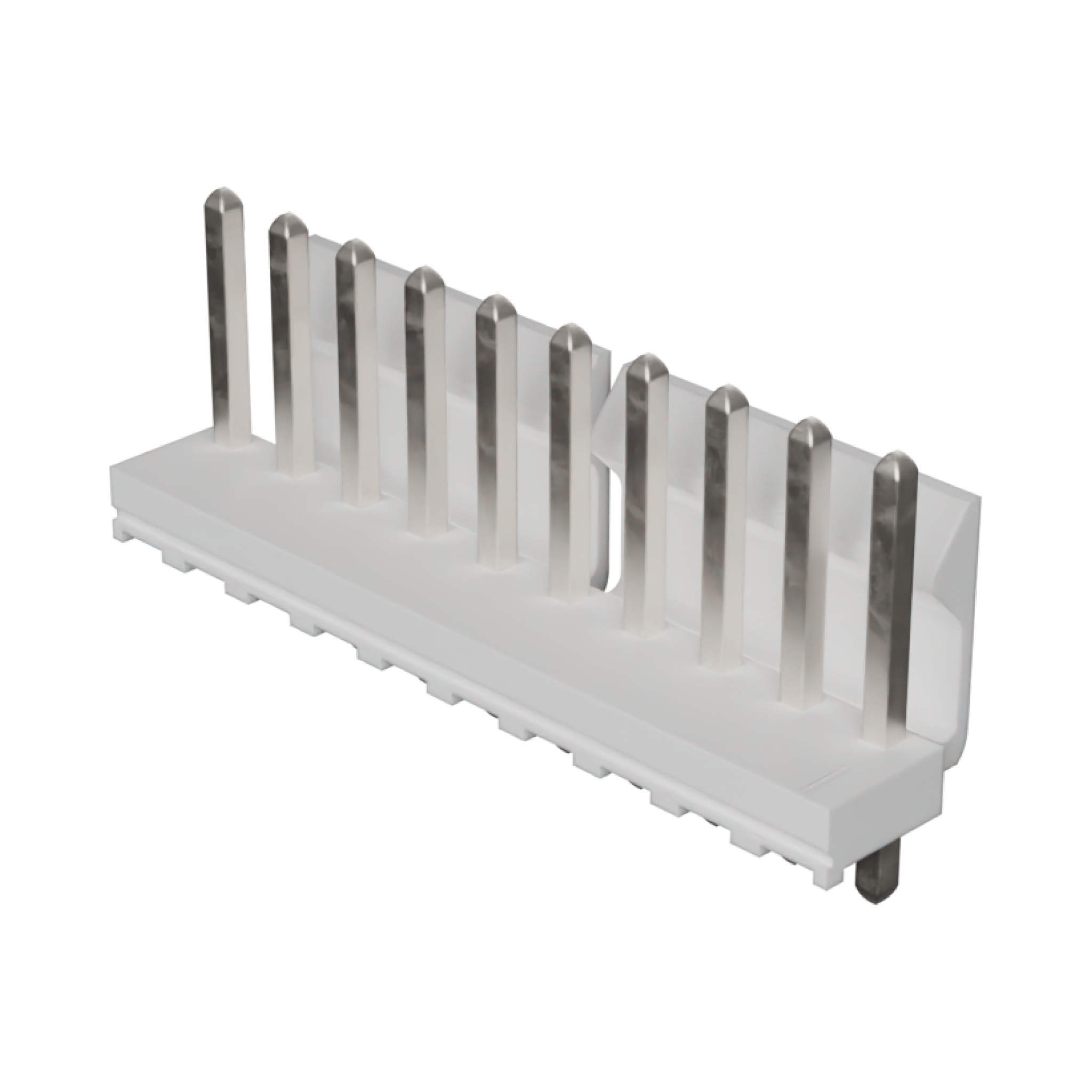

KK 396 Header, Vertical, Friction Lock, 10 Circuits, Tin (Sn) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
26-60-4100,
0026604100, 41791-0010 |
Where to Buy
Prices starting from US$0.40
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.49
|
14,056
in stock
|
Buy Now |
|
Heilind Americas
from US$0.40
|
8,947
in stock
|
Buy Now |
|
Conrad
from US$0.95
|
4,800
in stock
|
Buy Now |
|
Newark Electronics
from US$0.78
|
2,756
in stock
|
Buy Now |
|
element14
from US$0.56
|
2,756
in stock
|
Buy Now |
|
Farnell
from US$0.71
|
2,756
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.44
|
1,200
in stock
|
Buy Now |
|
RS
from US$0.75
|
278
in stock
|
Buy Now |
|
TME
from US$0.57
|
96
in stock
|
Buy Now |
|
|
RS Americas
from US$0.69
|
77
in stock
|
Buy Now |
|
Avnet America
from US$0.48
|
0
in stock
|
Buy Now |
|
Compona
from US$0.51
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.45
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.40
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 396 |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Resin | Polyester |
| Net Weight | 3.740/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.56mm |
| Pitch Mating Interface | 3.96mm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Shrouded | Partially Shrouded |
| Stackable | Yes |
| Temperature Range Operating | See Product Specification |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| KK .156 HDR 10P VT SN | TTI Americas |
| KK 156 HDR ASSY FRLK 10 CKT TI | Heilind Americas |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 10 Rastermaß: 3.96 mm 26604100 1 St. Bag | Conrad |
| Wire-To-Board Connector, Vertical, Kk 41791 Series, Through Hole, Header, 10, 3.96 Mm Rohs Compliant: Yes |Molex 26-60-4100 | Newark Electronics |
| CONNECTOR, HEADER, 10POS, 1ROW, 3.96MM | element14 |
| 3.96 MM KK HEADER VERT F/L 10C | TTI Europe |
| Molex 26-60-4100 Pin Header | RS |
| Connector: wire-board | TME |
| 3.96MM, HEADER, KK, VERT, SN, FRICTN LOCK,10W | RS Americas |
| Pin Header, Vertical, Power, Wire-to-Board, 3.96 mm, 1 Rows, 10 Contacts, Through Hole Straight | Avnet America |
| MOLEX 26-60-4100 Plug Square 10p THT Tin (Sn) Plating | Compona |
