304901012 Mini-Fit Jr. by Molex

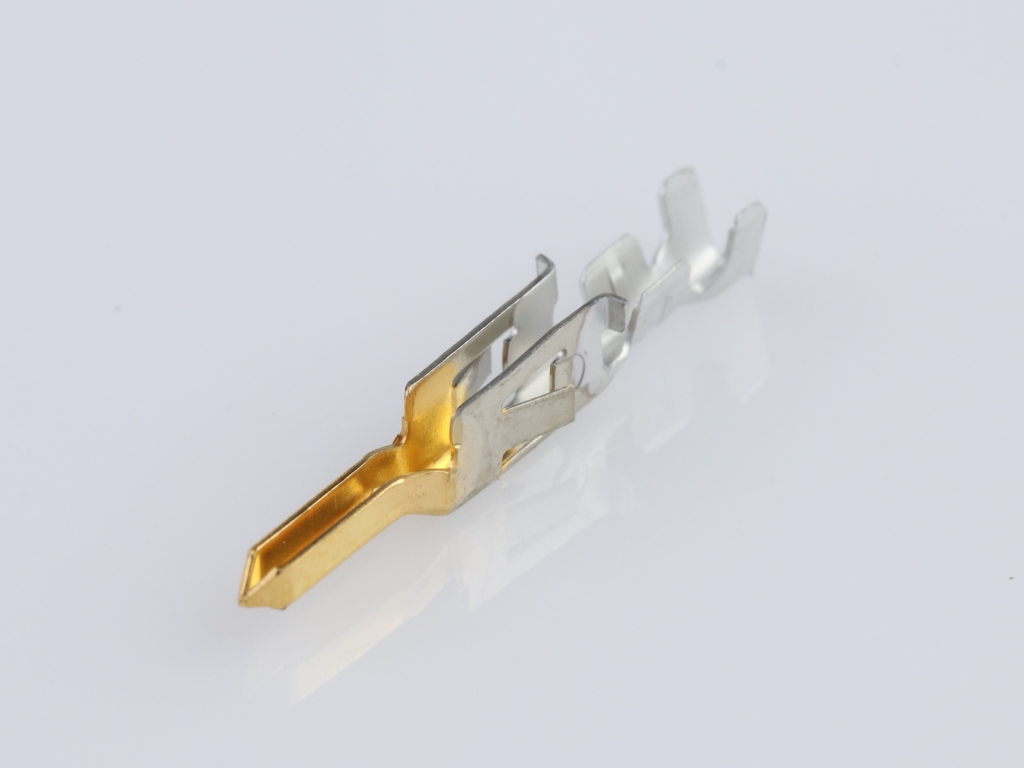

Mini-Fit Jr. Crimp Grounding Terminal, 24-18 AWG, Bag, Phosphor Bronze Select Gold (Au)
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
30490-1012,
0304901012 |
Where to Buy
Prices starting from US$0.36
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.77
|
7,600
in stock
|
Buy Now |
|
Conrad
from US$0.78
|
7,600
in stock
|
Buy Now |
|
Farnell
from US$0.71
|
6,840
in stock
|
Buy Now |
|
Heilind Americas
from US$0.36
|
2,848
in stock
|
Buy Now |
|
TTI Americas
from US$0.42
|
526
in stock
|
Buy Now |
|
RS Americas
from US$0.56
|
226
in stock
|
Buy Now |
|
Newark Electronics
from US$0.49
|
94
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
4,200
in stock
|
Buy Now |
|
Avnet America
from US$0.45
|
0
in stock
|
Buy Now |
|
element14
from US$0.82
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.70
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
Physical |
|
|---|---|
| Gender | Male |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin-Lead |
| Net Weight | 0.153/g |
| Packaging Alternative Part | Array |
| Plating Min Mating | 0.762µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.30-3.10mm |
| Wire Size Awg | 18, 20, 22, 24 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-wire | TME |
| Molex 304901012 MINIFIT GROUNDING PI 304901012 Molex Inhalt: 1 St. | Conrad |
| CONNECTORS | Farnell |
| MINIFIT JR GRND PIN L 30 SAU 18-24 | Heilind Americas |
| MINI-FIT CRMP 18-24AWG AU | TTI Americas |
| MINI-FIT, 30490 SER NUMBER PCB CONTACT, MALE, CRIMP, GOLD PLATING 18 TO 24AWG | RS Americas |
| Connector Contact, pin, crimp Terminal Rohs Compliant: Yes |Molex 30490-1012 | Newark Electronics |
| CONTACT, PIN, 24-18AWG, CRIMP | element14 |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 304901012?
Additional datasheets, footprints and schematics for 304901012 are listed on our Part Details page. You can also find images and similar parts to 304901012 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 304901012 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 304901012 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 304901012 fall under?
The 304901012 is listed under Crimp Terminals.
Can I view similar or alternative parts?
You can view similar parts to 304901012 when available in the Crimp Terminals range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 304901012 you can contact the distributor directly for product support, shipping queries etc.
Is the 304901012 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 304901012 have stock available?
Authorised distributors including TME, Conrad, Farnell, Heilind Americas and TTI Americas have stock available or on a lead time for 304901012.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 304901012 often in real-time on the comparison pages.
What if I can't find stock of 304901012?
You can fill out our help required form which you can use to request a quote for 304901012 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
