304902002 Mini-Fit Jr. by Molex

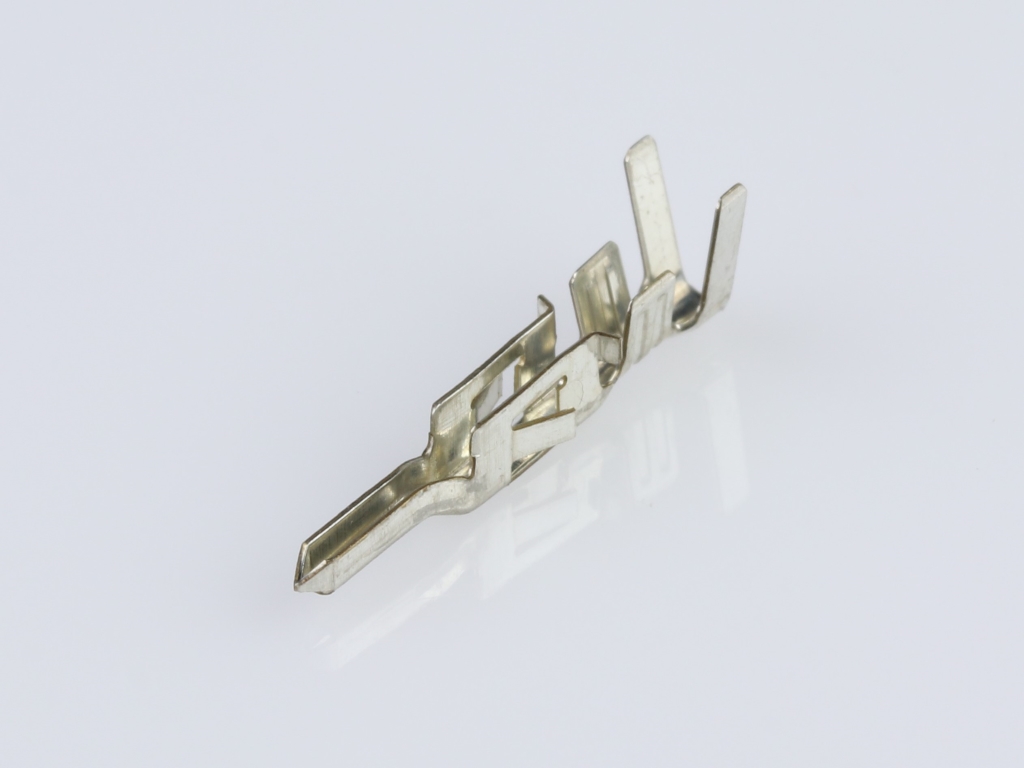

Mini-Fit Jr. Crimp Grounding Terminal, Male, with Tin (Sn) Plated Phosphor Bronze Contact, 24-18 AWG, Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
30490-2002,
0304902002 |
Where to Buy
Prices starting from US$0.0450
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.08
|
17,103
in stock
|
Buy Now |
|
element14
from US$0.09
|
7,216
in stock
|
Buy Now |
|
Farnell
from US$0.13
|
7,216
in stock
|
Buy Now |
|
RS
from US$0.15
|
5,720
in stock
|
Buy Now |
|
TME
from US$0.10
|
4,000
in stock
|
Buy Now |
|
Conrad
from US$325.96
|
4,000
in stock
|
Buy Now |
|
Avnet America
from US$0.06
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.07
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.06
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.09
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.05
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.07
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.0450
|
0
in stock
|
Buy Now |
|
EME
from US$0.09
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
Physical |
|
|---|---|
| Gender | Male |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.153/g |
| Packaging Alternative Part | Array |
| Plating Min Mating | 2.540µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.30-3.10mm |
| Wire Size Awg | 18, 20, 22, 24 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Contact, Pin, 18Awg, Crimp | Newark Electronics |
| CONTACT, PIN, 18AWG, CRIMP | element14 |
| Molex 304902002 Crimp Terminal | RS |
| Connector: wire-wire | TME |
| Molex 304902002 MINIFIT GROUNDING PI 304902002 Molex Inhalt: 4000 St. | Conrad |
| HEADERS, PIN 18-24 AWG REEL REEL OF 4000 | RS Americas |
| MINI-FIT CRMP 18-24AWG M | TTI Americas |
| MINIFIT JR GRND PIN C TIN | TTI Europe |
| MINIFIT JR GRND PIN C TIN 18- 4 | Heilind Americas |
