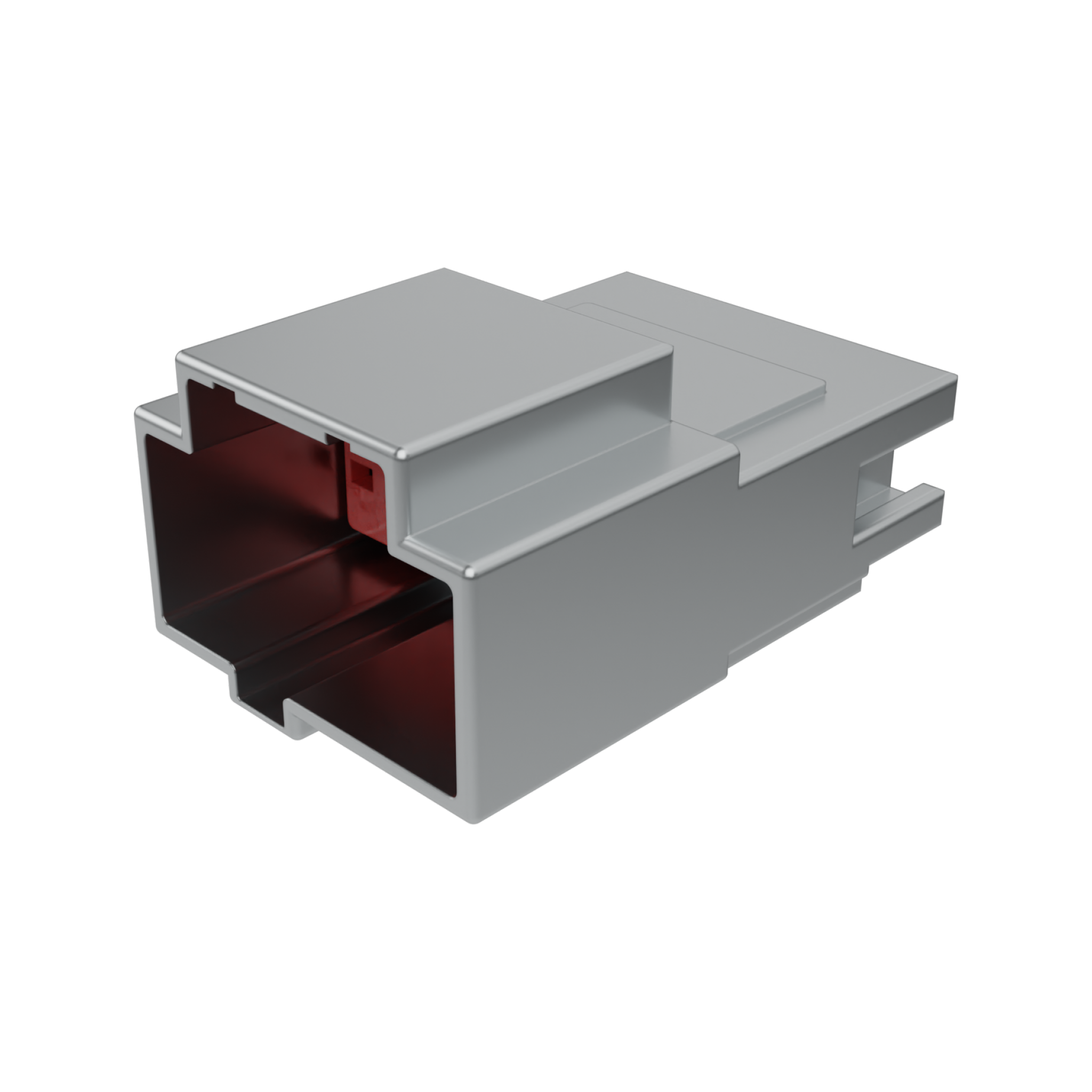

309681127 H-DAC 64 by Molex
2.54mm Pitch, 0.64mm Width H-DAC 64 High Density Automotive Crimp Housing, Dual Row, 12 Circuits, Polarization Option #1, Gray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
30968-1127,
0309681127 |
Where to Buy
Prices starting from US$0.19
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$1.05
|
39,000
in stock
|
Buy Now |
|
Heilind Americas
from US$1.06
|
18,699
in stock
|
Buy Now |
|
TTI Europe
from US$1.02
|
13,000
in stock
|
Buy Now |
|
element14
from US$1.49
|
151
in stock
|
Buy Now |
|
Farnell
from US$1.43
|
151
in stock
|
Buy Now |
|
Newark Electronics
from US$0.19
|
6
in stock
|
Buy Now |
|
Tongyida Electronic
-
|
8,000
in stock
|
Buy Now |
|
Avnet America
from US$1.38
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.41
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$1.20
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.98
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.52
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
|
Walker Component Group
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | H-DAC 64 |
|---|---|
| Application | Automotive, Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 12 |
| Color Resin | Gray |
| Gender | Plug |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Modified Polystyrene |
| Net Weight | 5.706/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 2.54mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +100°C |
