313862001 MX123 by Molex

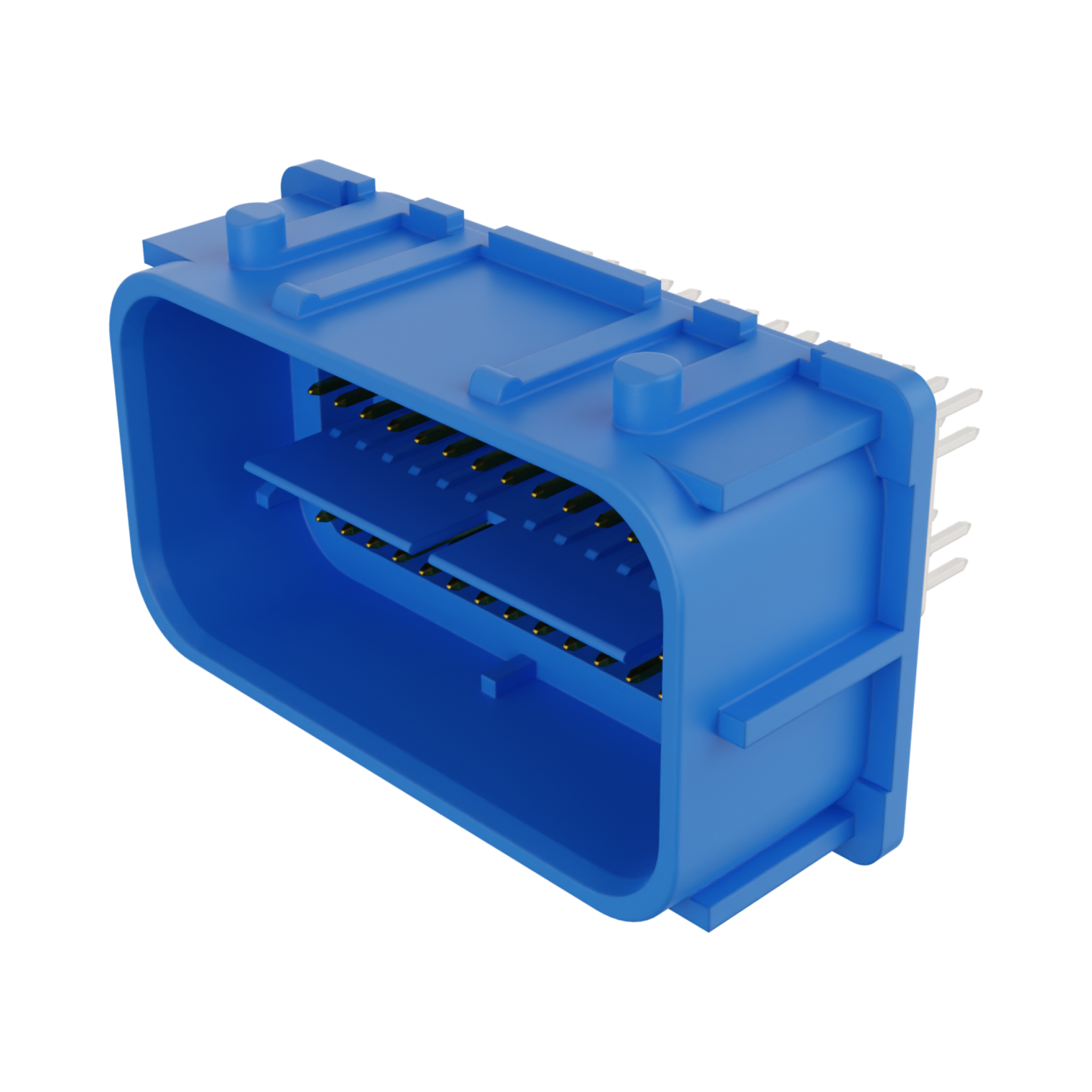

2.54mm Pitch, MX123 Header, 56 Circuits Shrouded Assembly, (56) 0.64mm Square Signal Pins, Harness Side Key Code G, Blue (Au Mate Side Finish)
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
31386-2001,
0313862001 |
Where to Buy
Prices starting from US$6.36
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$12.31
|
1,050
in stock
|
Buy Now |
|
TME
from US$15.77
|
784
in stock
|
Buy Now |
|
Conrad
from US$18.46
|
784
in stock
|
Buy Now |
|
TTI Americas
from US$7.37
|
484
in stock
|
Buy Now |
|
RS
from US$19.11
|
40
in stock
|
Buy Now |
|
Newark Electronics
from US$11.36
|
4
in stock
|
Buy Now |
|
element14
from US$14.29
|
4
in stock
|
Buy Now |
|
Farnell
from US$13.87
|
4
in stock
|
Buy Now |
|
Avnet America
from US$6.75
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$9.00
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$10.03
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$6.36
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | MX123 |
|---|---|
| Application | Automotive, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 11.0A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 56 |
| Circuits Maximum | 56 |
| Color Resin | Blue |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon Alloy |
| Net Weight | 17.698/g |
| Number Of Rows | 4 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pc Tail Length | 6.50mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 31386-2001 | TME |
| Molex Stiftgehäuse-Platine Polzahl Gesamt 56 Rastermaß: 2.54 mm 313862001 1 St. Bulk | Conrad |
| MX123 56P BLUE G SHRD | TTI Americas |
| Molex 31386-2001 Automotive Connector | RS |
| Automotive Conn, Hdr, 56Pos, 11A Rohs Compliant: Yes |Molex 31386-2001. | Newark Electronics |
| AUTOMOTIVE CONN, HDR, 56POS, 11A | element14 |
| Automotive Connector, MX123 31386 Series, Straight Plug, 56 Contacts, PCB Pin | Avnet America |
| MX123 56CKT BLUE G SHRD ASSY 313862001 | RS Americas |
| MX123 56CKT BLUE G SHRD A | TTI Europe |
