330113002 MX150 by Molex

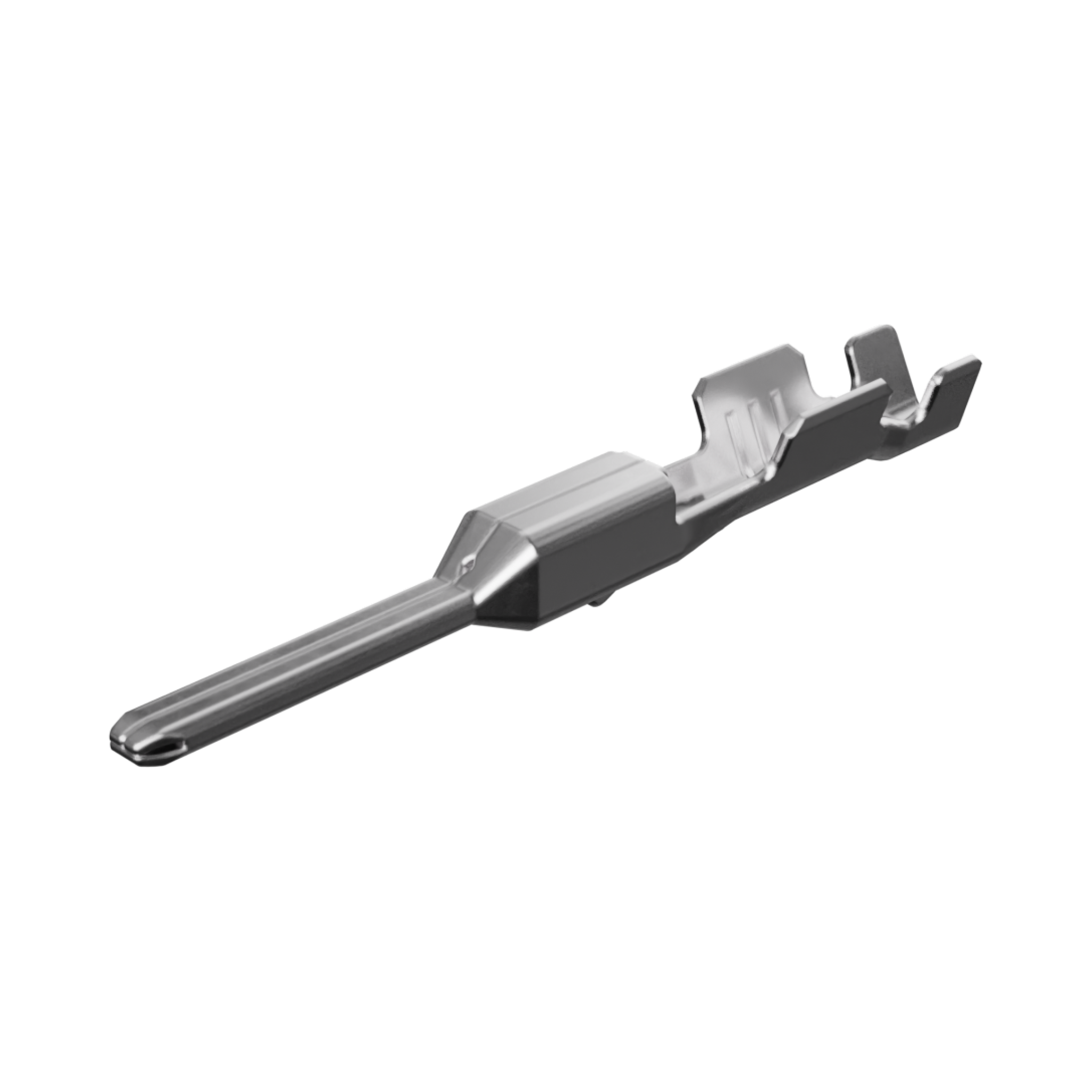

MX150 Male Terminal for Mat-Sealed or Unsealed Connectors, Silver Plating, 20-16 AWG, Left Reel Payoff
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
33011-3002,
0330113002 |
Where to Buy
Prices starting from US$0.06
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.08
|
1,642,500
in stock
|
Buy Now |
|
TME
from US$0.07
|
1,552,500
in stock
|
Buy Now |
|
Farnell
from US$0.12
|
1,485,000
in stock
|
Buy Now |
|
Heilind Americas
from US$0.09
|
50,625
in stock
|
Buy Now |
|
TTI Europe
from US$0.08
|
22,500
in stock
|
Buy Now |
|
RS
from US$0.11
|
7,500
in stock
|
Buy Now |
|
element14
from US$0.11
|
7,500
in stock
|
Buy Now |
|
Newark Electronics
from US$0.13
|
3,463
in stock
|
Buy Now |
|
Rutronik
from US$0.08
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.07
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.07
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.06
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | MX150 |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire, Automotive |
Electrical |
|
|---|---|
| Current Maximum Per Contact | Contact Molex |
| Voltage Maximum | 14V DC |
Physical |
|
|---|---|
| Gender | Male |
| Grip Code | 18 |
| Material Metal | High Performance Alloy (HPA) |
| Material Plating Mating | Silver |
| Material Plating Termination | Tin |
| Net Weight | 0.361/g |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 2.54mm max. |
| Wire Size Awg | 16, 18, 20 |
| Wire Size Mm | 0.75-1.00 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 330113002 MX150 Au/Ag Bld Term 330113002 Molex Inhalt: 1 St. | Conrad |
| Contact | TME |
| AUTOMOTIVE CONTACT, PIN, 20-16AWG, CRIMP | Farnell |
| MX150 BLD TERM SIL 16-20AWG D | Heilind Americas |
| MX150 MALE TERMINAL .30MM | TTI Europe |
| Molex 330113002 Crimp Terminal | RS |
| AUTOMOTIVE CONTACT, PIN, CRIMP | element14 |
| Automotive Contact, Pin, Crimp | Newark Electronics |
| CRIMPTERMINAL MX150 MALE AWG 20-16 | Rutronik |
| MX150 CRMP 16-20AWG L PAYOFF M | TTI Asia |
