346900120 Stac64 by Molex

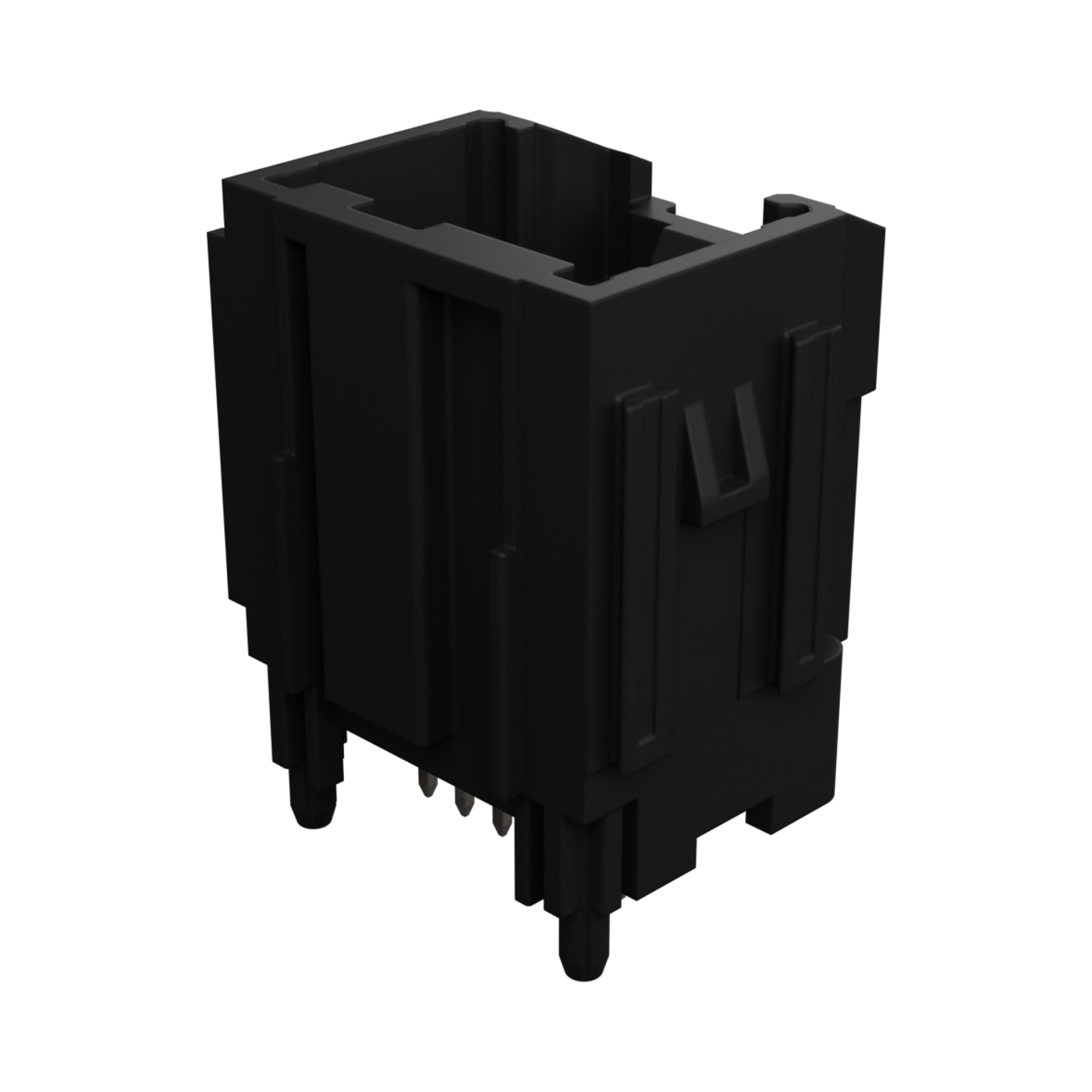

Stac64 Vertical Header Assembly, 12 Circuits, Polarization A, Black, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
34690-0120,
0346900120 |
Where to Buy
Prices starting from US$0.66
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.44
|
16,150
in stock
|
Buy Now |
|
Farnell
from US$1.55
|
14,535
in stock
|
Buy Now |
|
TME
from US$0.93
|
1,561
in stock
|
Buy Now |
|
element14
from US$1.33
|
879
in stock
|
Buy Now |
|
Newark Electronics
from US$1.40
|
9
in stock
|
Buy Now |
|
RS
from US$1.02
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.87
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.05
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.68
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.66
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Stac64 |
|---|---|
| Application | Automotive, Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 10.0A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 12 |
| Circuits Maximum | 12 |
| Color Resin | Black |
| Durability Mating Cycles Max | 10 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 7.940/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 3.33mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +100°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Stiftleiste (Standard) Anzahl Reihen: 2 346900120 1 St. Tray | Conrad |
| AUTOMOTIVE | Farnell |
| Connector: automotive | TME |
| AUTOMOTIVE CONN, STRAIGHT PLUG, 12POS | element14 |
| Automotive Conn, Straight Plug, 12Pos Rohs Compliant: Yes |Molex 34690-0120 | Newark Electronics |
| Molex 34690-0120 Automotive Connector | RS |
| STAC64 VERT HDR 12 CKT BLK POL | TTI Europe |
| STAC64 VERT HDR 12 CKT BLK PO A TRAY | Heilind Americas |
| STAC64 HDR 12P VT POL A | TTI Asia |
