346900200 Stac64 by Molex

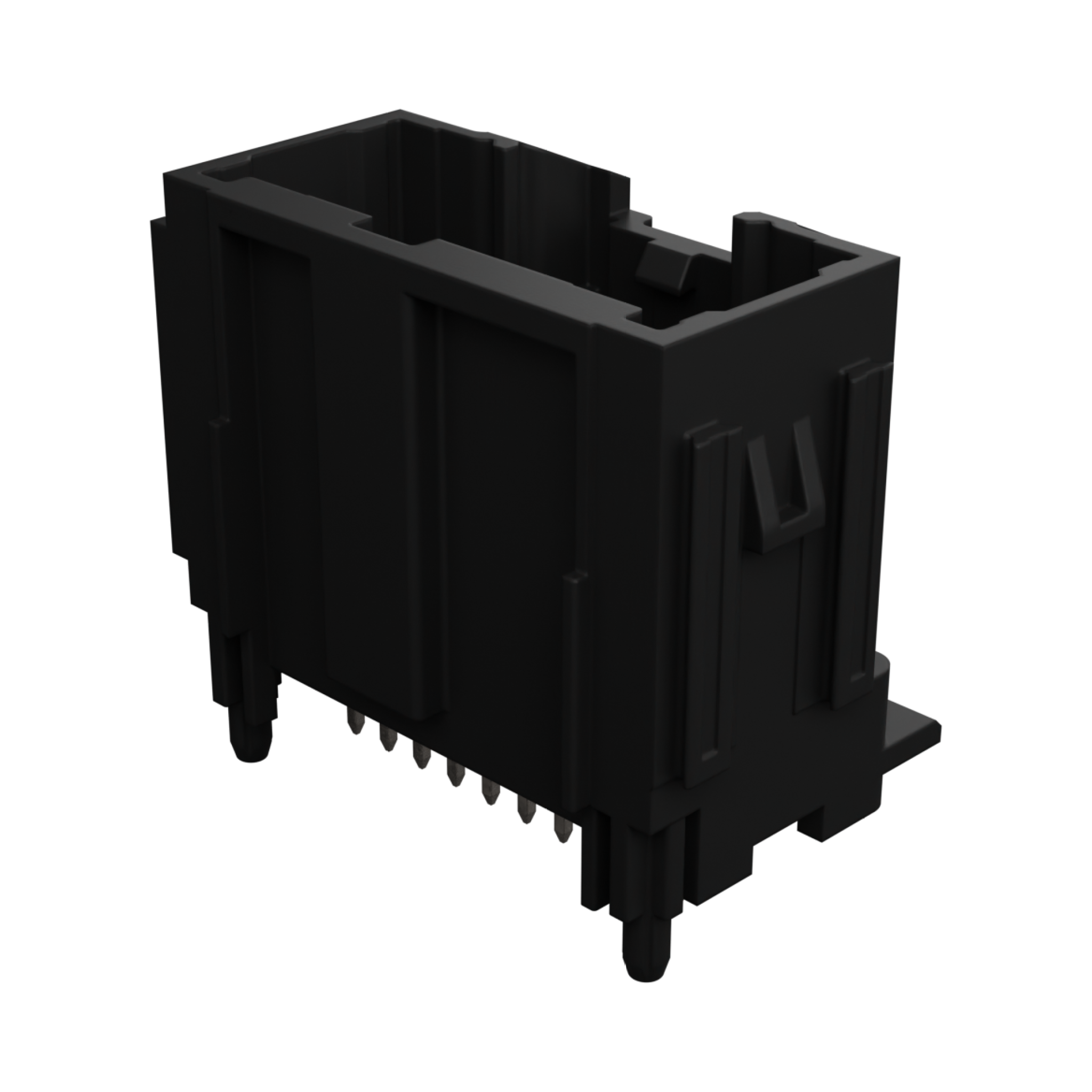

Stac64 Vertical Header Assembly, 20 Circuits, Polarization A, Black, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
34690-0200,
0346900200 |
Where to Buy
Prices starting from US$0.94
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.60
|
6,142
in stock
|
Buy Now |
|
Farnell
from US$2.51
|
5,528
in stock
|
Buy Now |
|
Newark Electronics
from US$2.27
|
56
in stock
|
Buy Now |
|
element14
from US$2.05
|
56
in stock
|
Buy Now |
|
RS
from US$2.66
|
0
in stock
|
Buy Now |
|
TME
from US$1.60
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.17
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.71
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.02
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.94
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Stac64 |
|---|---|
| Application | Automotive, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 10.0A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 20 |
| Circuits Maximum | 20 |
| Color Resin | Black |
| Durability Mating Cycles Max | 10 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 7.400/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 3.33mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +100°C |
| Termination Interface Style | Through Hole |
