346910080 Stac64 by Molex

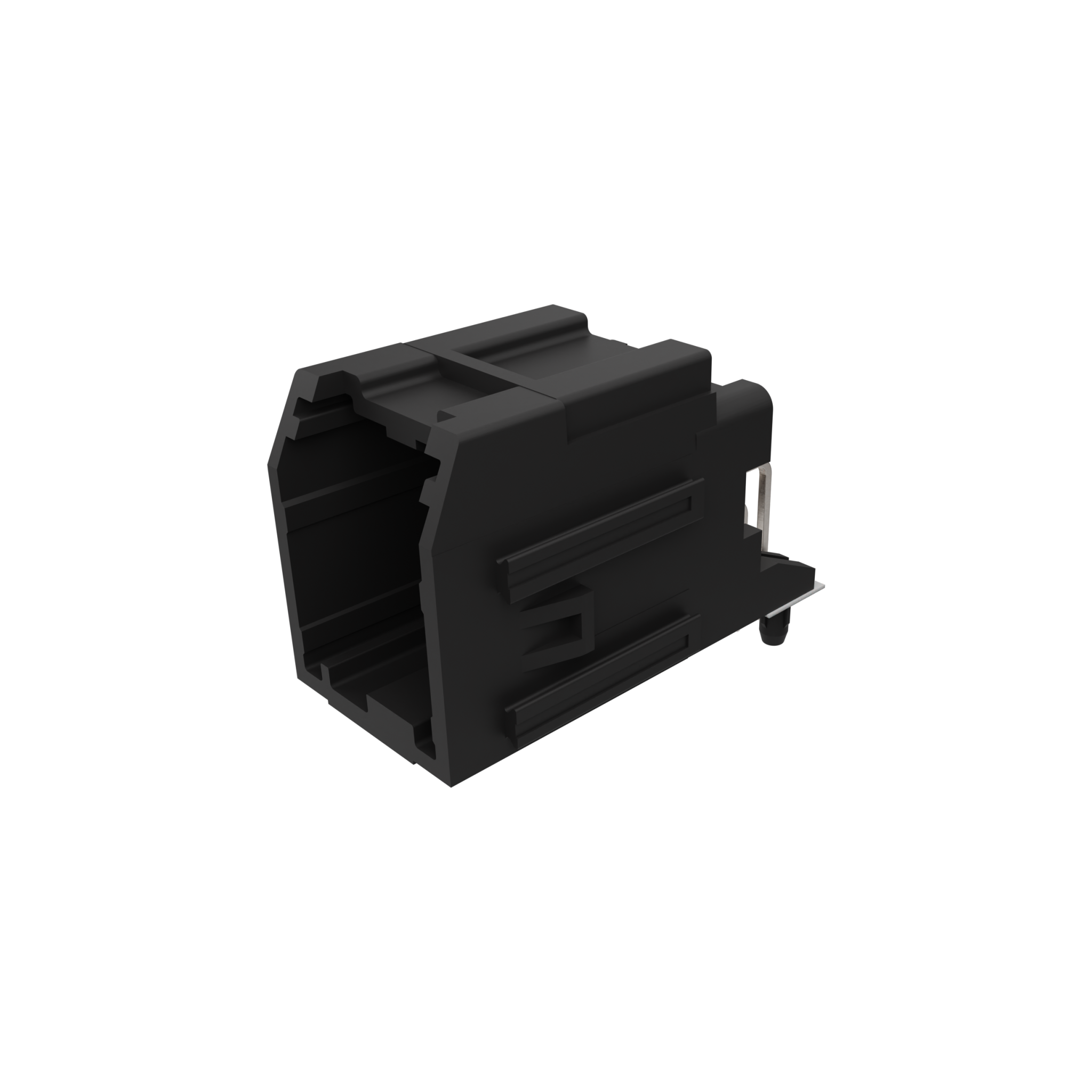

Stac64 Right-Angle Header Assembly, 8 Circuits, Polarization A, Black, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
34691-0080,
0346910080 |
Where to Buy
Prices starting from US$0.55
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.93
|
432
in stock
|
Buy Now |
|
Newark Electronics
from US$0.93
|
38
in stock
|
Buy Now |
|
element14
from US$1.12
|
38
in stock
|
Buy Now |
|
Farnell
from US$1.13
|
38
in stock
|
Buy Now |
|
TME
from US$0.75
|
10
in stock
|
Buy Now |
|
RS Americas
from US$1.82
|
0
in stock
|
Buy Now |
|
Conrad
from US$1.17
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.71
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.84
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.55
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.22
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Stac64 |
|---|---|
| Application | Automotive, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 10.0A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Black |
| Durability Mating Cycles Max | 10 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 5.136/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 3.36mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| STAC64 HDR 08P RA POL A | TTI Americas |
| Automotive Conn, Right Angle Plug, 8Pos Rohs Compliant: Yes |Molex 34691-0080 | Newark Electronics |
| AUTOMOTIVE CONN, RIGHT ANGLE PLUG, 8POS | element14 |
| Connector: automotive | TME |
| STAC64 SERIES, 8 WAY THROUGH HOLE PLUG PCB CONNECTOR | RS Americas |
| Molex Einbau-Stiftleiste (Standard) Anzahl Reihen: 2 346910080 1 St. Tray | Conrad |
| STAC64 RIGHT-ANGLE HEADER | TTI Europe |
| STAC64 RA HDR 8 CKT BLK POL A TRAY | Heilind Americas |
