346910201 Stac64 by Molex

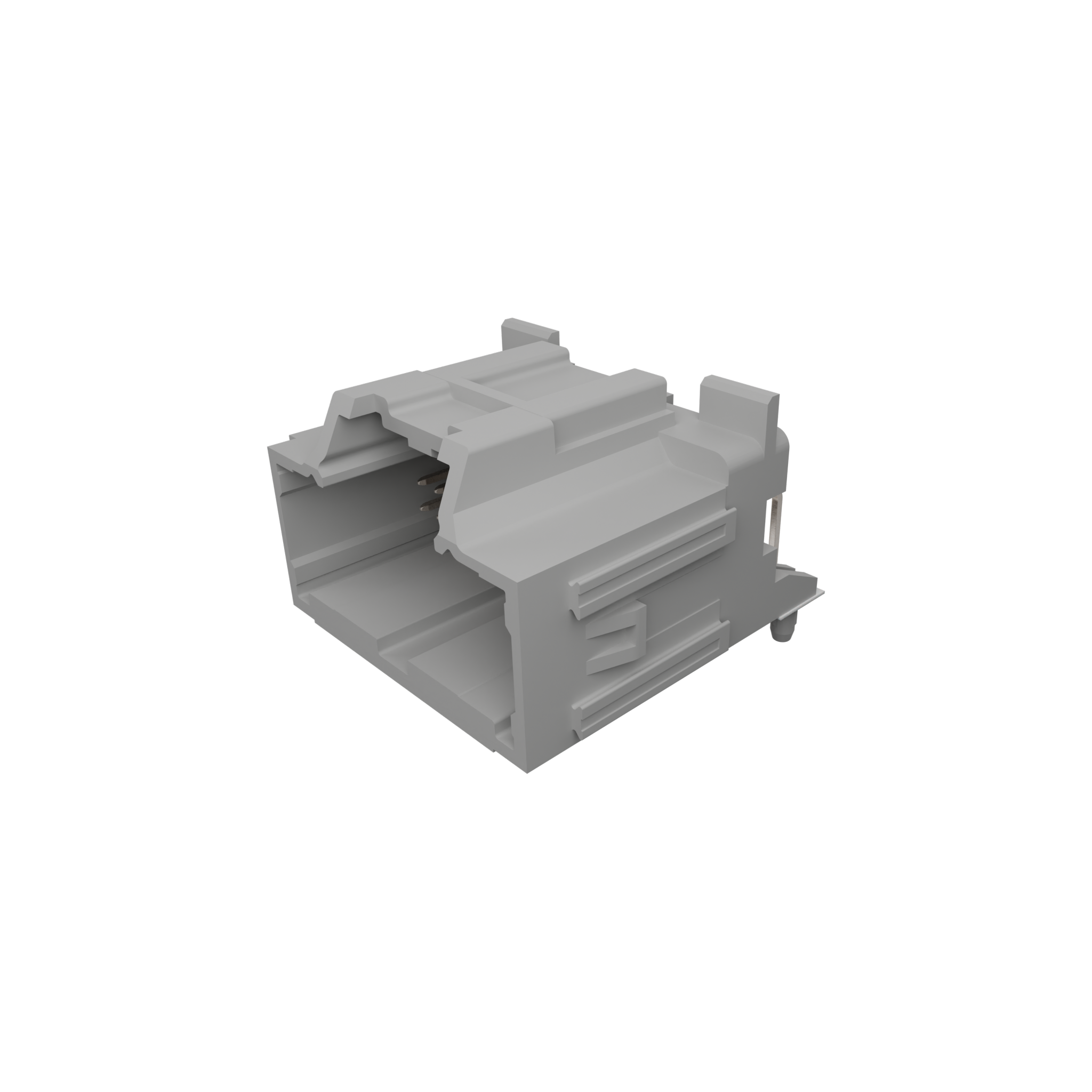

Stac64 Right-Angle Header Assembly, 20 Circuits, Polarization B, Gray, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
34691-0201,
0346910201 |
Where to Buy
Prices starting from US$1.09
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$3.17
|
143,062
in stock
|
Buy Now |
|
Newark Electronics
from US$2.08
|
141,737
in stock
|
Buy Now |
|
Farnell
from US$2.64
|
128,757
in stock
|
Buy Now |
|
Avnet America
from US$1.84
|
0
in stock
|
Buy Now |
|
TME
from US$1.63
|
0
in stock
|
Buy Now |
|
RS Americas
from US$2.41
|
0
in stock
|
Buy Now |
|
element14
from US$2.25
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$1.44
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.41
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.84
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.09
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.87
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Stac64 |
|---|---|
| Application | Automotive, Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 10.0A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 20 |
| Circuits Maximum | 20 |
| Color Resin | Gray |
| Durability Mating Cycles Max | 10 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 8.613/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 3.36mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Stiftleiste (Standard) Anzahl Reihen: 2 346910201 1 St. Tray | Conrad |
| Stac64 Right-Angle Header Assembly 20 Circuits Po |Molex/woodhead 34691-0201 | Newark Electronics |
| AUTOMOTIVE CONN, R/A PLUG, 20POS, 500V | Farnell |
| Connector: automotive | TME |
| STAC64 SERIES, 20 WAY THROUGH HOLE PLUG PCB CONNECTOR, WITH SOLDER TERMINATION | RS Americas |
| AUTOMOTIVE CONN, RIGHT ANGLE PLUG, 20POS | element14 |
| STAC64 HDR 20P RA POL B | TTI Americas |
| STAC64 RIGHT-ANGLE HEADER | TTI Europe |
| STAC64 RA HDR 20 CKT GRY POL TRAY | Heilind Americas |
