353630260 Sherlock by Molex

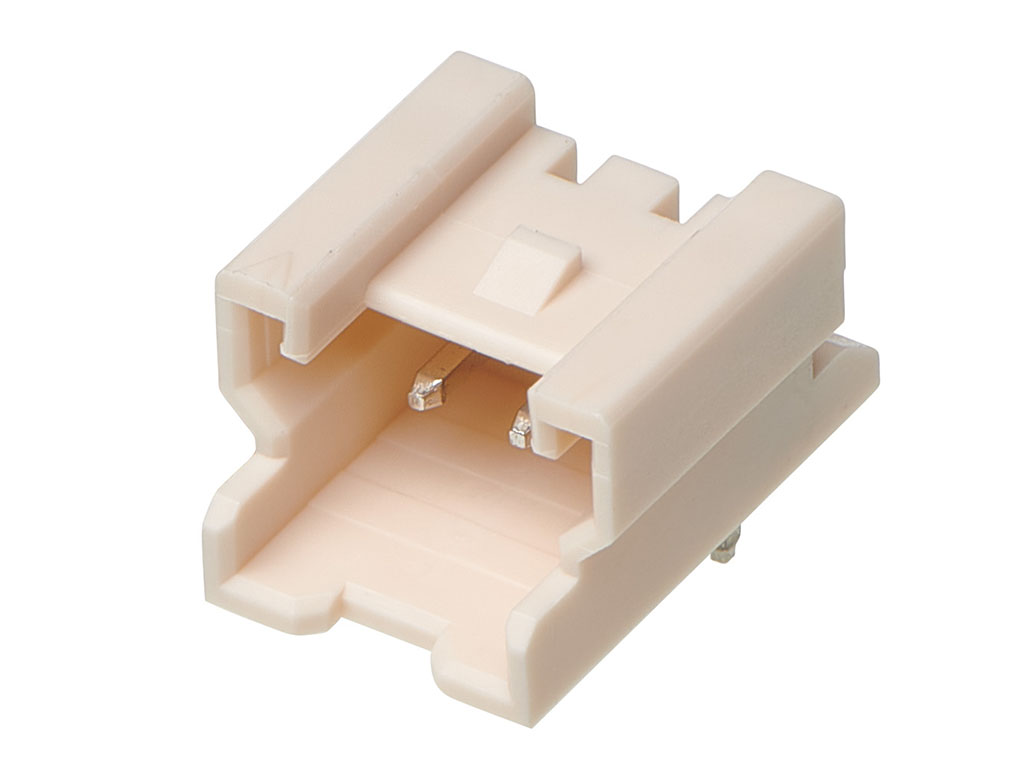

2.00mm Pitch Sherlock Wire-to-Board Header, Right-Angle, with Positive Lock, 2 Circuits
| Status: | Active - Proprietary |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
35363-0260,
0353630260 |
Where to Buy
Prices starting from US$0.10
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.31
|
667,121
in stock
|
Buy Now |
|
TME
from US$0.10
|
664,740
in stock
|
Buy Now |
|
Farnell
from US$0.16
|
600,410
in stock
|
Buy Now |
|
Heilind Americas
from US$0.11
|
16,635
in stock
|
Buy Now |
|
Newark Electronics
from US$0.16
|
4,859
in stock
|
Buy Now |
|
element14
from US$0.15
|
4,859
in stock
|
Buy Now |
|
TTI Europe
-
|
23,000
in stock
|
Buy Now |
|
EME
from US$0.10
|
0
in stock
|
Buy Now |
|
|
TTI Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Sherlock |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 0.210/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.20mm |
| Pitch Mating Interface | 2.00mm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Shrouded | Partially Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 2 Rastermaß: 2.00 mm 353630260 1 St. Bulk | Conrad |
| Connector: wire-board | TME |
| CONN, R/A HEADER, 2POS, 1ROW, 2MM, TH | Farnell |
| WAFER 353630210 | Heilind Americas |
| Wire-To-Board Connector, Right Angle, Sherlock 35363 Series, Through Hole, Header, 2, 2 Mm Rohs Compliant: Yes |Molex 353630260 | Newark Electronics |
| CONNECTOR, HEADER, 2POS, 1ROW, 2MM | element14 |
| 2.00 MM SHERLOCK WTB RA 2CIRCU | TTI Europe |
