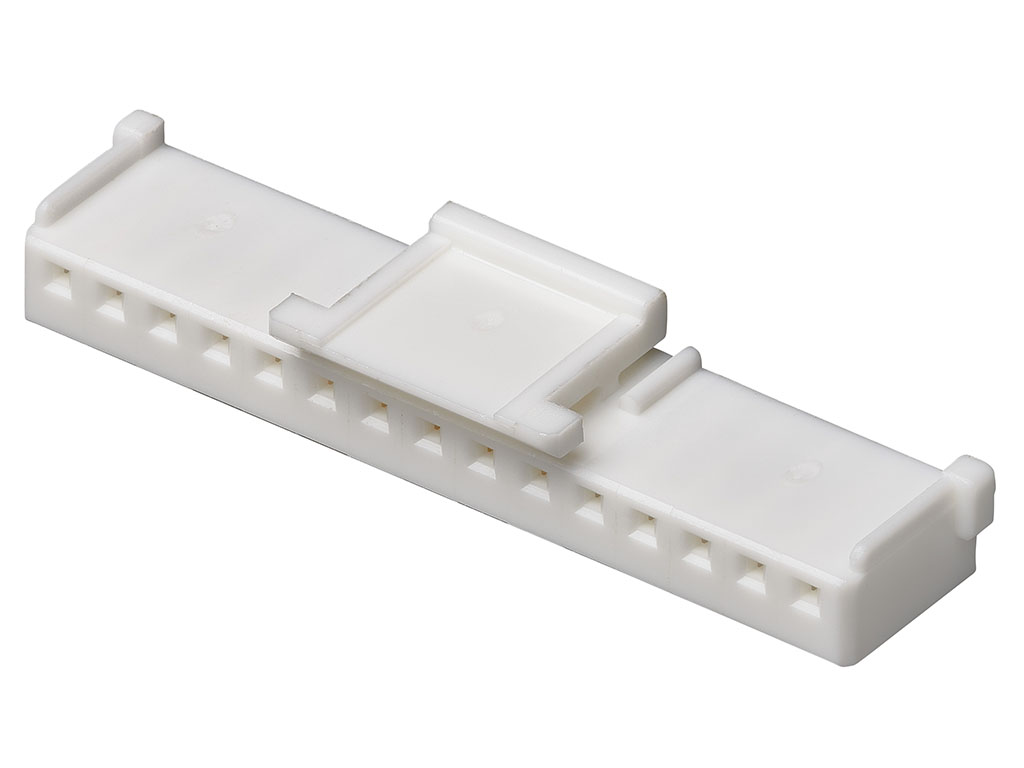

355071100 Sherlock by Molex
2.00mm Pitch Sherlock Wire-to-Board Housing, Natural, 11 Circuits
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
35507-1100,
0355071100 |
Where to Buy
Prices starting from US$0.12
Specifications
| Product Name | Sherlock |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Detail | 11 |
| Circuits Maximum | 11 |
| Color Resin | Natural |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Polyester |
| Net Weight | 0.453/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 2.00mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector, Rcpt, 11Pos, 1Row, 2Mm | Newark Electronics |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 11 Rastermaß: 2.00 mm 355071100 1 St. Bulk | Conrad |
| Connector: wire-board | TME |
| PIN AND SOCKET CONNECTOR HOUSINGS | Farnell |
| Headers & Wire Housings 2.0 Sherlock W/B HSG 11P | Sager |
