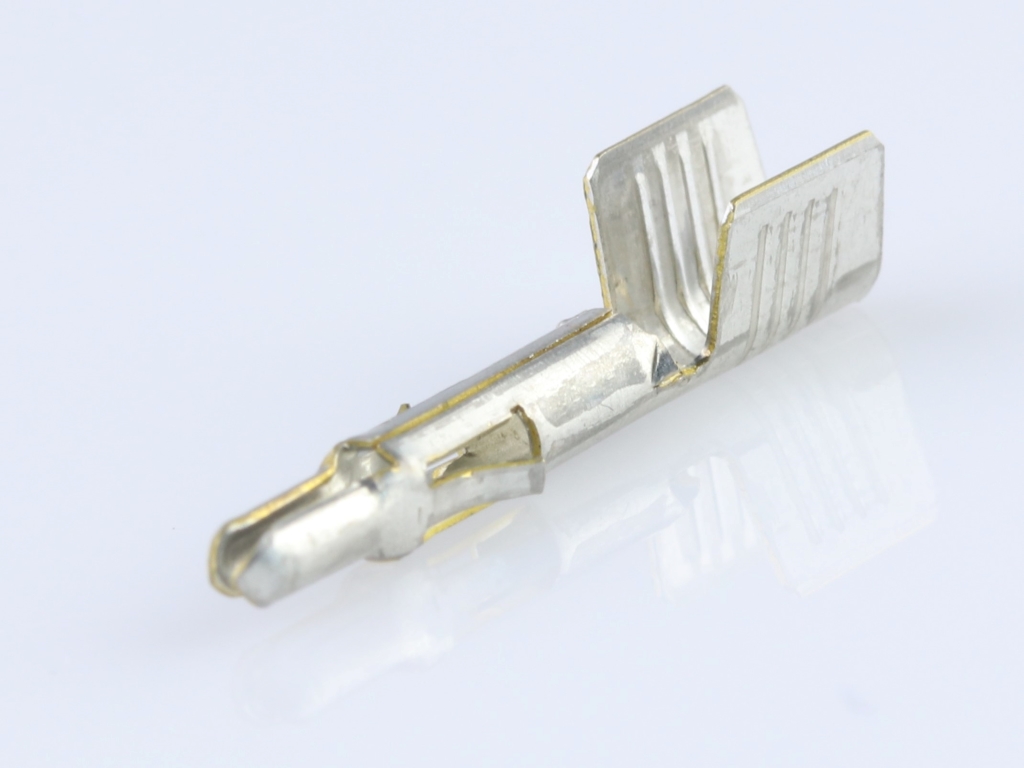

366630001 MLX by Molex
MLX Crimp Terminal, 12-10 AWG, Reel, Tin (Sn)
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
36663-0001,
0366630001 |
Where to Buy
Prices starting from US$0.0298
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.07
|
11,755
in stock
|
Buy Now |
|
element14
from US$0.08
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.06
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.05
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.06
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.0298
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.0470
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | MLX |
|---|---|
| Application | Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 20.0A |
Physical |
|
|---|---|
| Gender | Male |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.385/g |
| Packaging Alternative Part | Array |
| Plating Min Mating | 0.508µm |
| Plating Min Termination | 0.508µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 5.08mm max. |
| Wire Size Awg | 10, 12 |
| Wire Size Mm | 3.30, 5.25 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Contact, Pin, 10Awg, Crimp | Newark Electronics |
| CONTACT, PIN, 10AWG, CRIMP | element14 |
| MLX 366630001 Molex Inhalt: 1 St. | Conrad |
| MLX MALE TERMINAL | TTI Europe |
| MLX MALE TERMINAL 10-12 AWG | Heilind Americas |
| MLX CRIMP TERM 10-12 AWG | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 366630001?
Additional datasheets, footprints and schematics for 366630001 are listed on our Part Details page. You can also find images and similar parts to 366630001 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 366630001 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 366630001 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 366630001 fall under?
The 366630001 is listed under Crimp Terminals.
Can I view similar or alternative parts?
You can view similar parts to 366630001 when available in the Crimp Terminals range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 366630001 you can contact the distributor directly for product support, shipping queries etc.
Is the 366630001 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 366630001 have stock available?
Authorised distributors including Newark Electronics, element14, Conrad, TTI Europe and Heilind Americas have stock available or on a lead time for 366630001.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 366630001 often in real-time on the comparison pages.
What if I can't find stock of 366630001?
You can fill out our help required form which you can use to request a quote for 366630001 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
