368770005 Ditto by Molex

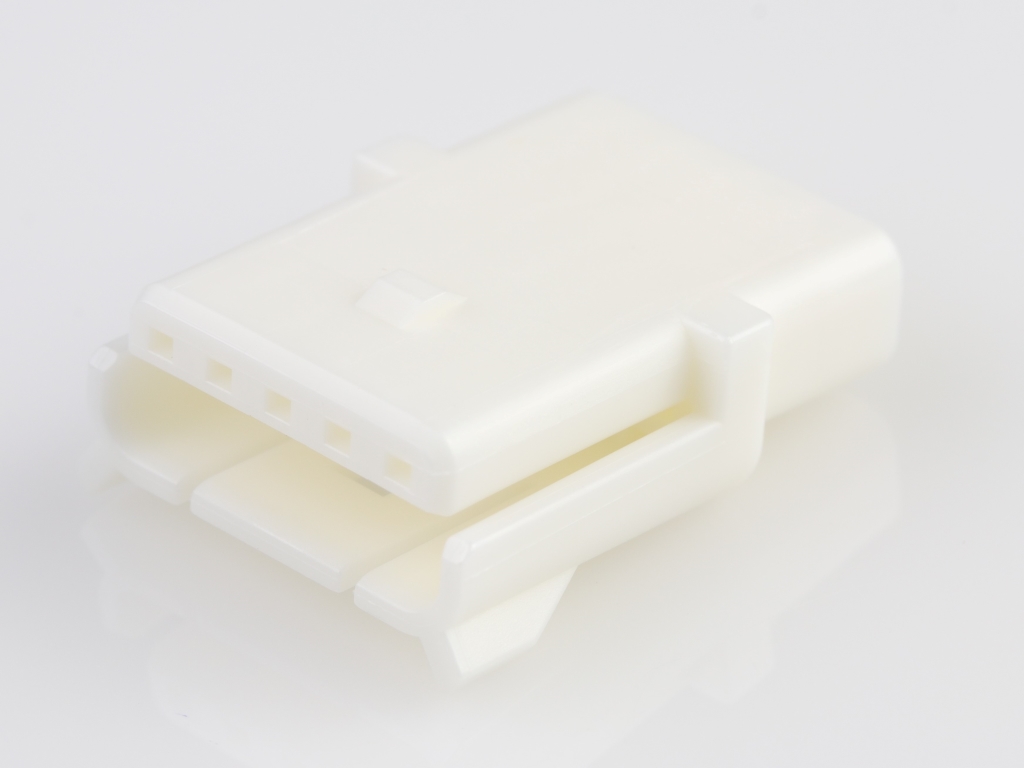

Ditto Hermaphroditic Crimp Housing, Friction Lock, 5 Circuit, Natural
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
36877-0005,
0368770005 |
Specifications
| Product Name | Ditto |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 5 |
| Color Resin | Natural (White) |
| Flammability | 94V-0 |
| Gender | Hermaphroditic |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 1.229/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 2.50mm |
| Pitch Termination Interface | 2.50mm |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Ditto Genderless Wtw Hsg Fric Lock 1X5 Rohs Compliant: Yes |Molex 36877-0005 | Newark Electronics |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 368770005?
Additional datasheets, footprints and schematics for 368770005 are listed on our Part Details page. You can also find images and similar parts to 368770005 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 368770005 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 368770005 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 368770005 fall under?
The 368770005 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 368770005 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 368770005 you can contact the distributor directly for product support, shipping queries etc.
Is the 368770005 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 368770005 have stock available?
Authorised distributors including Newark Electronics have stock available or on a lead time for 368770005.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 368770005 often in real-time on the comparison pages.
What if I can't find stock of 368770005?
You can fill out our help required form which you can use to request a quote for 368770005 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
