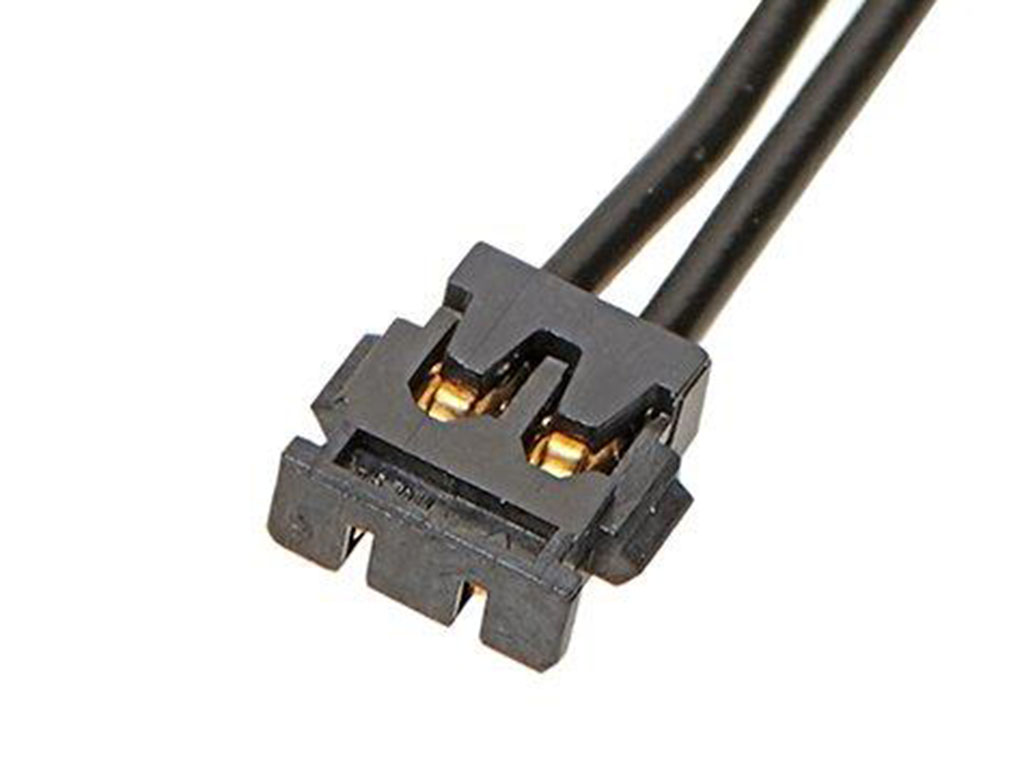

369200203 Pico-EZmate by Molex
Pico-EZmate-to-Pico-EZmate Off-the-Shelf (OTS) Cable Assembly, 1.20mm Pitch, Single Row, 300.00mm Length, 2 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
36920-0203,
0369200203 |
Where to Buy
Prices starting from US$1.14
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$2.00
|
2,447
in stock
|
Buy Now |
|
element14
from US$1.58
|
2,447
in stock
|
Buy Now |
|
Farnell
from US$1.50
|
2,447
in stock
|
Buy Now |
|
RS
from US$1.67
|
38
in stock
|
Buy Now |
|
Rapid Electronics
from US$2.21
|
34
in stock
|
Buy Now |
|
Conrad
from US$1.83
|
34
in stock
|
Buy Now |
|
Heilind Americas
from US$1.54
|
4
in stock
|
Buy Now |
|
Avnet America
from US$1.36
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.51
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$1.14
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.16
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Pico-EZmate |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Cable Length | 300.00mm |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 0.901/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 1.20mm |
| Plating Min Mating | 0.100µm |
| Plating Min Termination | 0.100µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1571 |
| Wire Size Awg | 28 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Cable Assy, 2Pos, Wtb Rcpt-Rcpt, 300Mm Rohs Compliant: Yes |Molex 36920-0203 | Newark Electronics |
| CABLE ASSY, 2POS, WTB RCPT-RCPT, 300MM | element14 |
| Molex 36920-0203 Wire to Board Cable | RS |
| Molex 369200203 Pico-ezmate Cable 2 Pin 1.2mm Pitch 300mm Black | Rapid Electronics |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 2 Rastermaß: 1.2 mm 369200203 1 St. Bag | Conrad |
| DISC WIR ASY,2 CKT 300MM 1.20MM PICO-EZMATE | Heilind Americas |
| PICOEZMATE 2 CIRCUIT 300MM | RS Americas |
| PICO-EZMATE 02P OTS ASSY | TTI Americas |
