369200401 Pico-EZmate by Molex

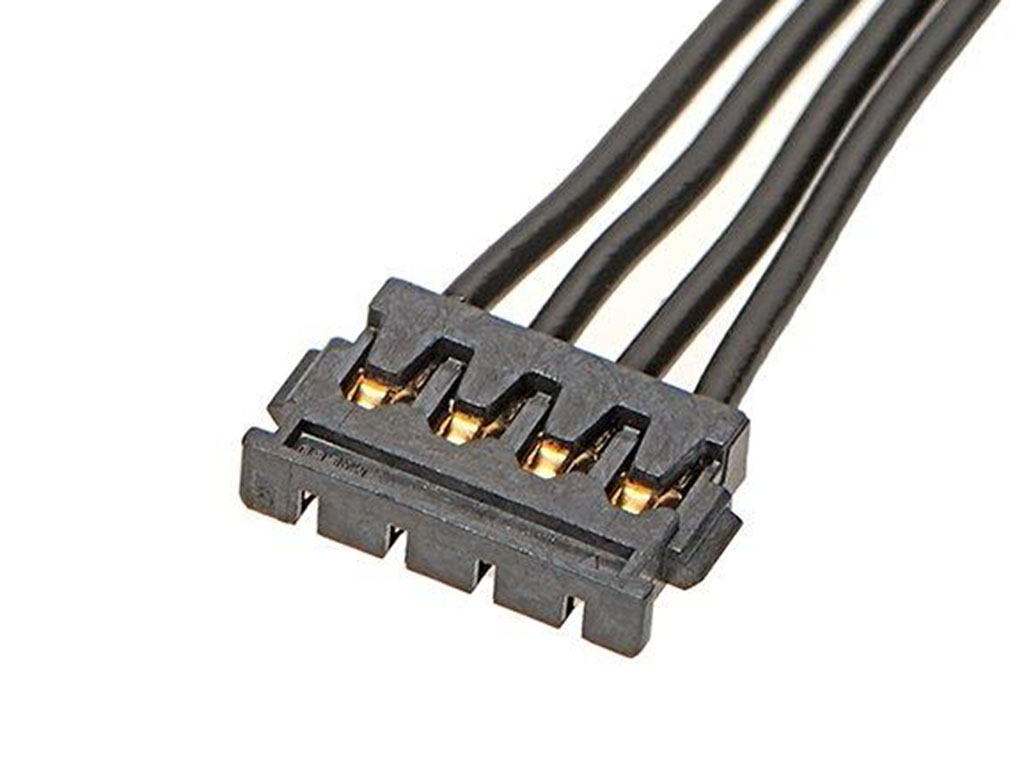

Pico-EZmate-to-Pico-EZmate Off-the-Shelf (OTS) Cable Assembly, 1.20mm Pitch, Single Row, 100.00mm Length, 4 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
36920-0401,
0369200401 |
Where to Buy
Prices starting from US$0.42
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$1.77
|
3,705
in stock
|
Buy Now |
|
Conrad
from US$3.51
|
3,705
in stock
|
Buy Now |
|
TTI Americas
from US$1.84
|
590
in stock
|
Buy Now |
|
element14
from US$2.16
|
176
in stock
|
Buy Now |
|
Farnell
from US$2.40
|
176
in stock
|
Buy Now |
|
RS
from US$2.63
|
45
in stock
|
Buy Now |
|
Heilind Americas
from US$1.86
|
37
in stock
|
Buy Now |
|
Newark Electronics
from US$0.42
|
17
in stock
|
Buy Now |
|
Avnet America
from US$1.78
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.02
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.34
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Pico-EZmate |
|---|---|
| Application | Signal, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Cable Length | 100.00mm |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 0.886/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 1.20mm |
| Plating Min Mating | 0.100µm |
| Plating Min Termination | 0.100µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1571 |
| Wire Size Awg | 28 |
