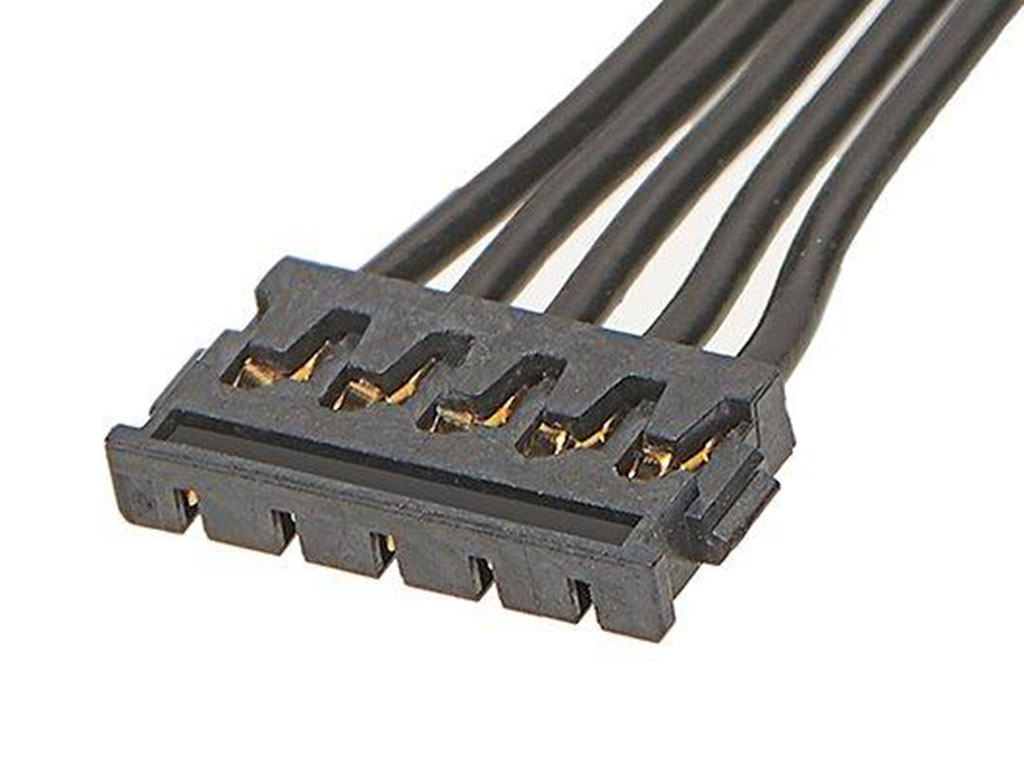

369200503 Pico-EZmate by Molex
Pico-EZmate-to-Pico-EZmate Off-the-Shelf (OTS) Cable Assembly, 1.20mm Pitch, Single Row, 300.00mm Length, 5 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
36920-0503,
0369200503 |
Where to Buy
Prices starting from US$0.50
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$2.41
|
662
in stock
|
Buy Now |
|
Farnell
from US$2.48
|
596
in stock
|
Buy Now |
|
element14
from US$2.41
|
347
in stock
|
Buy Now |
|
Heilind Americas
from US$2.23
|
37
in stock
|
Buy Now |
|
Newark Electronics
from US$0.50
|
27
in stock
|
Buy Now |
|
RS
from US$3.34
|
0
in stock
|
Buy Now |
|
Avnet America
from US$2.11
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.41
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$2.00
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.88
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Pico-EZmate |
|---|---|
| Application | Signal, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Cable Length | 300.00mm |
| Circuits Loaded | 5 |
| Circuits Maximum | 5 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 2.703/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 1.20mm |
| Plating Min Mating | 0.100µm |
| Plating Min Termination | 0.100µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1571 |
| Wire Size Awg | 28 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-board | TME |
| CABLE ASSY, 5P, RCPT-RCPT, 300MM | Farnell |
| CABLE ASSY, 5POS, WTB RCPT-RCPT, 300MM | element14 |
| DISC WIR ASY,5 CKT 300MM 1.20MM PICO-EZMATE | Heilind Americas |
| Cable Assy, Pico-Ezmate Rcpt/Rcpt, 11.8" | Newark Electronics |
| Molex 36920-0503 Wire | RS |
| Cable Assembly UL1571 0.3m 28AWG 5POS Pico-Ezmate to 5POS Pico-Ezmate RCP-RCP Bag | Avnet America |
| PICOEZMATE 5 CIRCUIT 300MM | RS Americas |
| PICO-EZMATE 05P OTS ASSY | TTI Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 369200503?
Additional datasheets, footprints and schematics for 369200503 are listed on our Part Details page. You can also find images and similar parts to 369200503 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 369200503 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 369200503 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 369200503 fall under?
The 369200503 is listed under Power and Signal Cable Assemblies.
Can I view similar or alternative parts?
You can view similar parts to 369200503 when available in the Power and Signal Cable Assemblies range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 369200503 you can contact the distributor directly for product support, shipping queries etc.
Is the 369200503 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 369200503 have stock available?
Authorised distributors including TME, Farnell, element14, Heilind Americas and Newark Electronics have stock available or on a lead time for 369200503.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 369200503 often in real-time on the comparison pages.
What if I can't find stock of 369200503?
You can fill out our help required form which you can use to request a quote for 369200503 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
