369210502 KK Plus by Molex

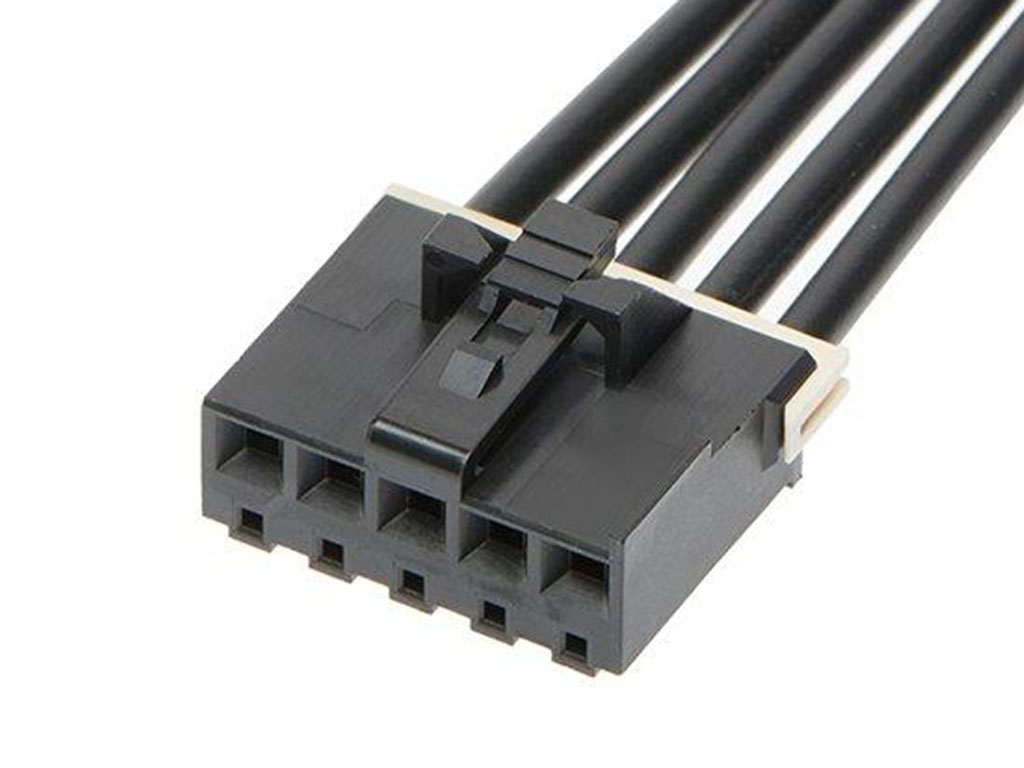

KK Plus 396-to-KK Plus 396 Off-the-Shelf (OTS) Cable Assembly, 3.96mm Pitch, Single Row, 150.00mm Length, 5 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
36921-0502,
0369210502 |
Where to Buy
Prices starting from US$3.11
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$4.20
|
1,390
in stock
|
Buy Now |
|
TME
from US$4.23
|
1,350
in stock
|
Buy Now |
|
Farnell
from US$4.33
|
1,251
in stock
|
Buy Now |
|
element14
from US$4.46
|
59
in stock
|
Buy Now |
|
RS
from US$6.39
|
0
in stock
|
Buy Now |
|
Avnet America
from US$3.33
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$3.11
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$3.45
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK Plus |
|---|---|
| Application | Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.0A |
| Voltage Maximum | 600V DC |
Physical |
|
|---|---|
| Cable Length | 150.00mm |
| Circuits Loaded | 5 |
| Circuits Maximum | 5 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 31.130/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 3.96mm |
| Plating Min Mating | 5.080µm |
| Plating Min Termination | 5.080µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1015 |
| Wire Size Awg | 18 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 36921-0502 1 St. Bag | Conrad |
| Connector: wire-board | TME |
| CABLE ASSY, 5P, RCPT-RCPT, 150MM | Farnell |
| CABLE ASSY, WTB RCPT-WTB RCPT, 5.9" | element14 |
| Molex 36921-0502 Wire | RS |
| LINK396 05P 150MM OTS ASSY | TTI Americas |
| DISC WIR ASY 5 CKT 150MM L1NK 396 | Heilind Europe |
