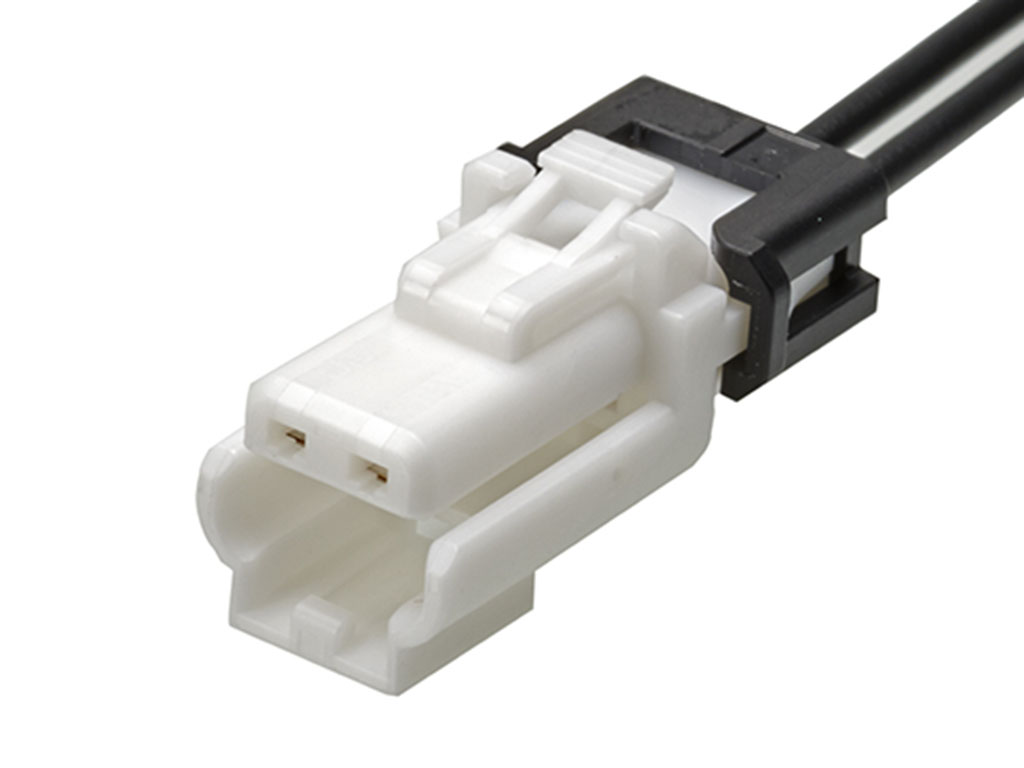

369220205 Ditto by Molex
Ditto-to-Ditto Off-the-Shelf (OTS) Cable Assembly, 3.00mm Pitch, Single Row, 450.00mm Length, 2 Circuits, Black
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
36922-0205,
0369220205 |
Where to Buy
Prices starting from US$0.43
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$1.63
|
2,100
in stock
|
Buy Now |
|
TME
from US$2.21
|
507
in stock
|
Buy Now |
|
Conrad
from US$2.88
|
507
in stock
|
Buy Now |
|
Newark Electronics
from US$0.43
|
50
in stock
|
Buy Now |
|
Avnet America
from US$1.80
|
0
in stock
|
Buy Now |
|
RS Americas
from US$2.16
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Ditto |
|---|---|
| Application | Power, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 5.0A |
| Voltage Maximum | 300V AC/DC |
Physical |
|
|---|---|
| Cable Length | 450.00mm |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Gender | Hermaphroditic-Hermaphroditic |
| Lock To Mating Part | Yes |
| Material Metal | Tin Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 8.708/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 3.00mm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1061 |
| Wire Size Awg | 20 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CABLE ASSY, 2P WTB HERMAPHRODITIC, 17.7" | Farnell |
| Connector: wire-wire | TME |
| Molex Stift-/Buchsengehäuse-Kabel Polzahl Gesamt 2 Rastermaß: 3.00 mm 369220205 1 St. Bulk | Conrad |
| Cable Assy, 2P Wtb Hermaphroditic, 17.7" | Newark Electronics |
| Ditto-to-Ditto Off-the-Shelf (OTS) Cable Assembly 3mm Pitch Single Row 450mm Length 2 Position Black | Avnet America |
| CABLE ASSEMBLY, DITTO 2 CIRCUIT, WIRE TO WIRE, 450MM | RS Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 369220205?
Additional datasheets, footprints and schematics for 369220205 are listed on our Part Details page. You can also find images and similar parts to 369220205 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 369220205 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 369220205 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 369220205 fall under?
The 369220205 is listed under Power and Signal Cable Assemblies.
Can I view similar or alternative parts?
You can view similar parts to 369220205 when available in the Power and Signal Cable Assemblies range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 369220205 you can contact the distributor directly for product support, shipping queries etc.
Is the 369220205 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 369220205 have stock available?
Authorised distributors including Farnell, TME, Conrad, Newark Electronics and Avnet America have stock available or on a lead time for 369220205.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 369220205 often in real-time on the comparison pages.
What if I can't find stock of 369220205?
You can fill out our help required form which you can use to request a quote for 369220205 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
