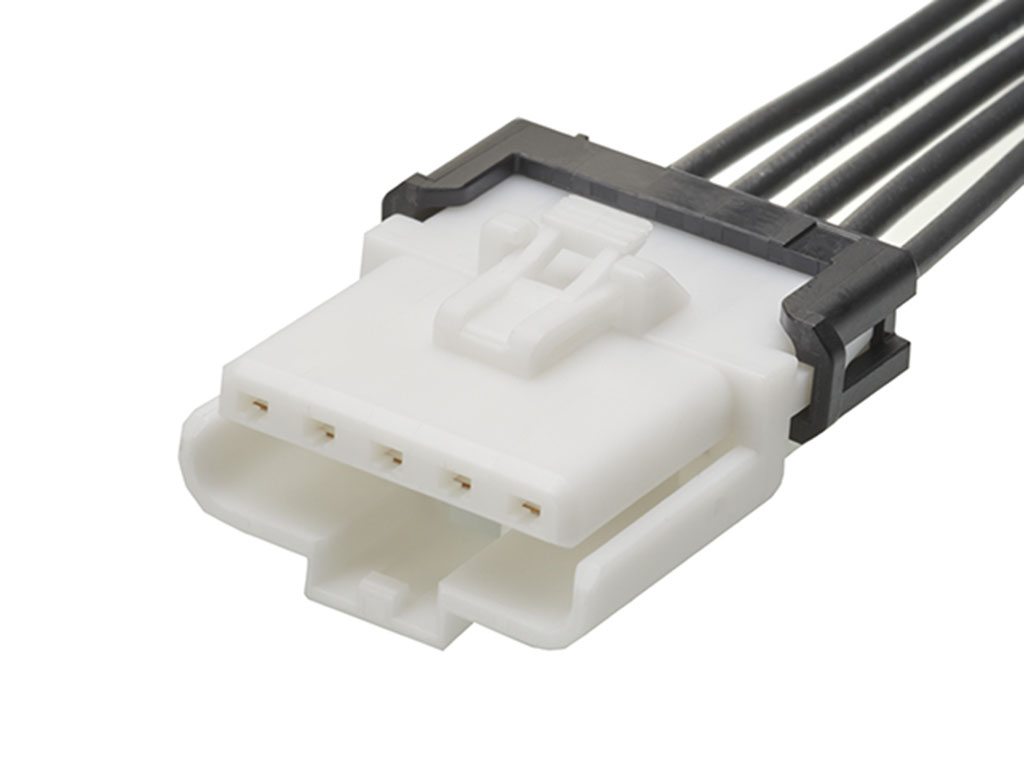

369220501 Ditto by Molex
Ditto-to-Ditto Off-the-Shelf (OTS) Cable Assembly, 3.00mm Pitch, Single Row, 100.00mm Length, 5 Circuits, Black
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
36922-0501,
0369220501 |
Where to Buy
Prices starting from US$1.80
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$1.80
|
2,100
in stock
|
Buy Now |
|
Newark Electronics
from US$2.44
|
494
in stock
|
Buy Now |
|
TME
from US$2.71
|
494
in stock
|
Buy Now |
|
Conrad
from US$3.54
|
494
in stock
|
Buy Now |
|
Avnet America
from US$2.21
|
0
in stock
|
Buy Now |
|
RS Americas
from US$2.66
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Ditto |
|---|---|
| Application | Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.5A |
| Voltage Maximum | 300V AC/DC |
Physical |
|
|---|---|
| Cable Length | 100.00mm |
| Circuits Loaded | 5 |
| Circuits Maximum | 5 |
| Color Resin | Black |
| Gender | Hermaphroditic-Hermaphroditic |
| Lock To Mating Part | Yes |
| Material Metal | Tin Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 8.784/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 3.00mm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1061 |
| Wire Size Awg | 20 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CABLE ASSY, 5P WTB HERMAPHRODITIC, 3.9" | Farnell |
| Ditto-To-Ditto Off-The-Shelf (Ots) Cable Assembly, 3.00Mm Pitch, Single Row, 100.00Mm Length, 5 Circuits, Black |Molex 36922-0501 | Newark Electronics |
| Connector: wire-wire | TME |
| Molex Stift-/Buchsengehäuse-Kabel Polzahl Gesamt 5 Rastermaß: 3.00 mm 369220501 1 St. Bulk | Conrad |
| Ditto-to-Ditto Off-the-Shelf (OTS) Cable Assembly 3mm Pitch Single Row 100mm Length 5 Position Black | Avnet America |
| CABLE ASSEMBLY, DITTO 5 CIRCUIT, WIRE TO WIRE, 100MM | RS Americas |
