369240403 Mini-Fit Sr. by Molex

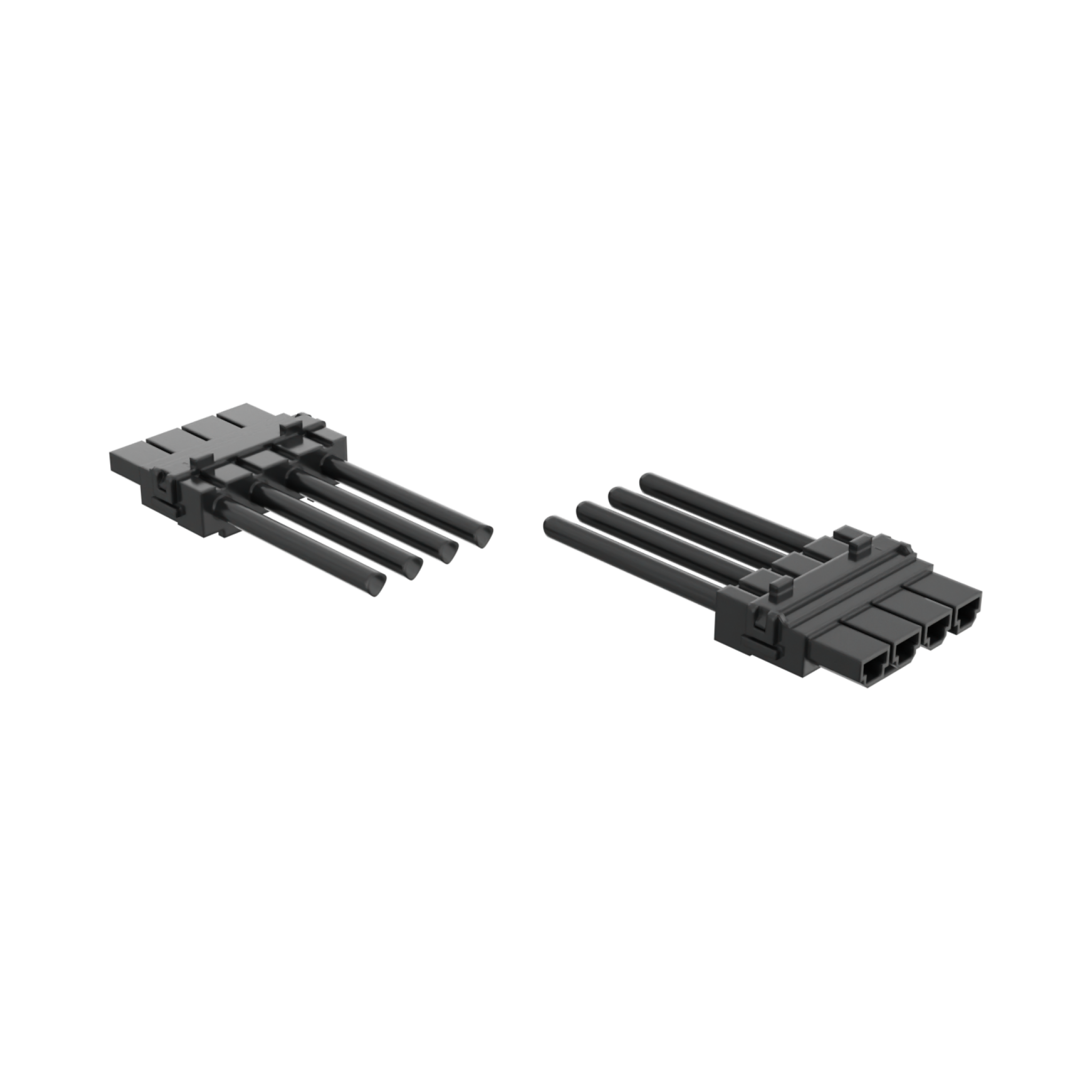

Mini-Fit Sr.-to-Mini-Fit Sr. Off-the-Shelf (OTS) Cable Assembly, 10.00mm Pitch, Single Row, 0.30m Length, 4 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
36924-0403,
0369240403 |
Where to Buy
Prices starting from US$18.77
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$29.27
|
1,035
in stock
|
Buy Now |
|
Conrad
from US$38.04
|
1,035
in stock
|
Buy Now |
|
Farnell
from US$33.46
|
932
in stock
|
Buy Now |
|
element14
from US$34.46
|
155
in stock
|
Buy Now |
|
Heilind Americas
from US$23.54
|
15
in stock
|
Buy Now |
|
Newark Electronics
from US$29.41
|
6
in stock
|
Buy Now |
|
RS
from US$51.44
|
0
in stock
|
Buy Now |
|
Avnet America
from US$25.88
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$35.08
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$18.77
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$27.26
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Sr. |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 50.0A |
| Voltage Maximum | 600V AC/DC |
Physical |
|
|---|---|
| Cable Length | 0.30m |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | High Performance Alloy (HPA) |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 169.350/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 10.00mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1015 |
| Wire Size Awg | 8 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 36924-0403 | TME |
| Molex Stiftgehäuse-Kabel Polzahl Gesamt 4 Rastermaß: 10.00 mm 369240403 1 St. Bulk | Conrad |
| CABLE ASSY, 4P, RCPT-RCPT, 300MM | Farnell |
| CABLE ASSY, 4P MINI-FIT RCPT-RCPT, 11.8" | element14 |
| DISCR WIR ASSY 4 CKT 300MM MINIFIT-SR | Heilind Americas |
| Cable Assy, 4P Mini-Fit Rcpt-Rcpt, 11.8" | Newark Electronics |
| Molex 36924-0403 Cable Assembly | RS |
| DOUBLE ENDED IN-SERIES, MINI-FIT SR. TPA, STRAIGHT, 4POS, 0.30 M, 36924 SERIES | RS Americas |
| MINI-FIT SR 04P OTS ASSY | TTI Americas |
