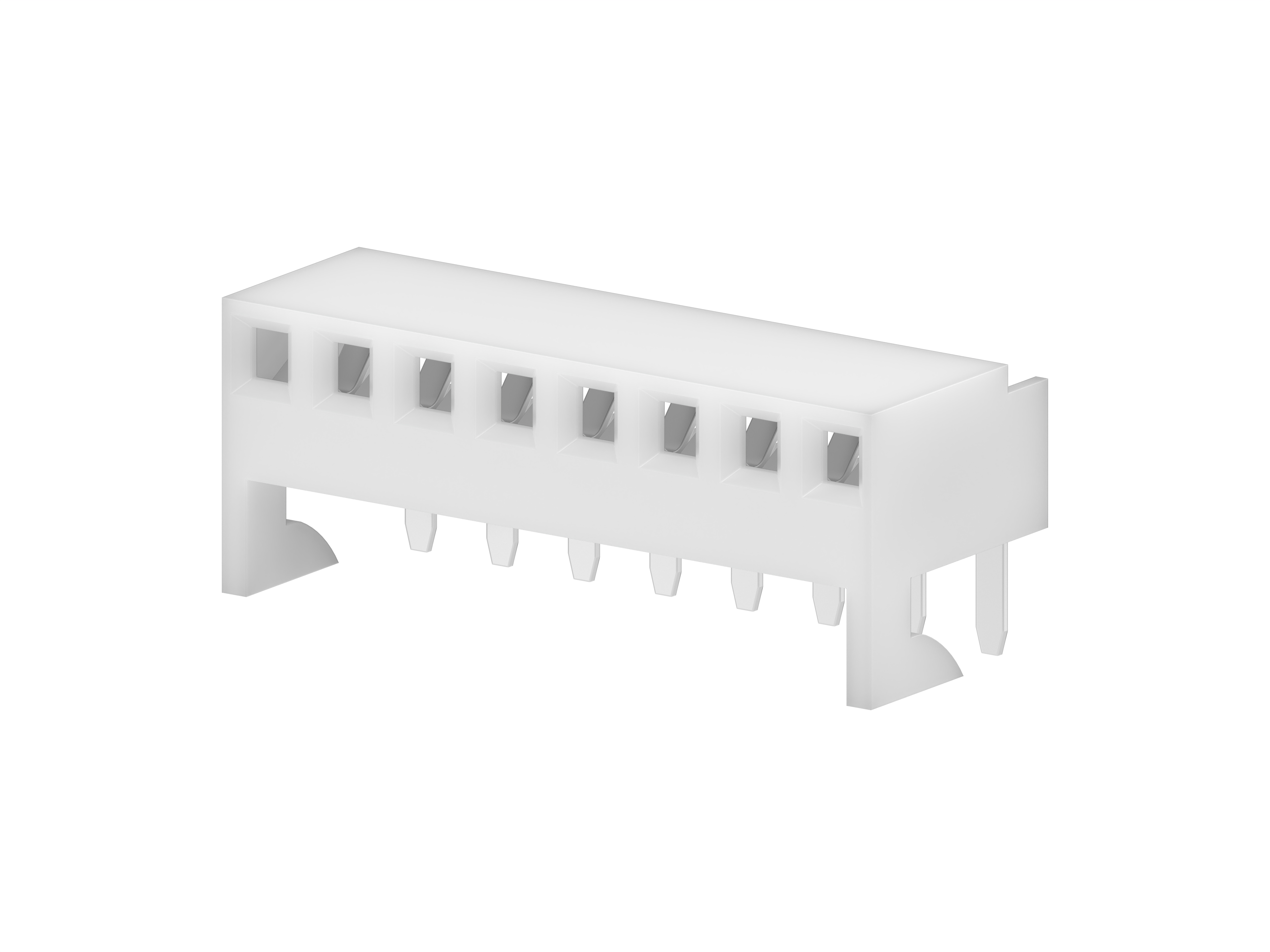

38001338 KK 254 by Molex
KK 254 PC Board Connector, Right-Angle, End-to-End Stackable, with Cat Ear Terminal, 2.54µm Tin (Sn) Plating, 8 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
38-00-1338,
0038001338, A-4455-AZ08C(P909) |
Where to Buy
Prices starting from US$0.54
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.88
|
5,989
in stock
|
Buy Now |
|
Farnell
from US$1.40
|
5,391
in stock
|
Buy Now |
|
Newark Electronics
from US$1.42
|
1,616
in stock
|
Buy Now |
|
element14
from US$1.18
|
1,616
in stock
|
Buy Now |
|
RS
from US$1.36
|
190
in stock
|
Buy Now |
|
Rutronik
from US$0.58
|
0
in stock
|
Buy Now |
|
TME
from US$0.83
|
0
in stock
|
Buy Now |
|
Compona
from US$0.56
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.92
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.98
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.54
|
0
in stock
|
Buy Now |
|
EME
from US$0.64
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.5A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Natural (White) |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 0.866/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.30mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | Yes |
| Stackable | Yes |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 8 Rastermaß: 2.54 mm 38001338 1 St. Tray | Conrad |
| CONN, R/A RCPT, 8POS, 2.54MM, TH | Farnell |
| Board-To-Board Connector, Kk 4455 Series, Through Hole, Receptacle, 8, 2.54 Mm, Tin Plated Contacts Rohs Compliant: Yes |Molex 38-00-1338 | Newark Electronics |
| CONNECTOR, RCPT, 8POS, 1ROW, 2.54MM | element14 |
| Molex 38-00-1338 PCB Socket | RS |
| 08P KK TERMINAL W CATEAR 90° | Rutronik |
| Connector: wire-board | TME |
| MOLEX 38001338 Socket Square 8p THT | Compona |
| 2.54 MM KK PCB CONNECTOR 08CKT | TTI Europe |
| KK 100 PCB ASSY RTAN 08 CKT T N | Heilind Americas |
