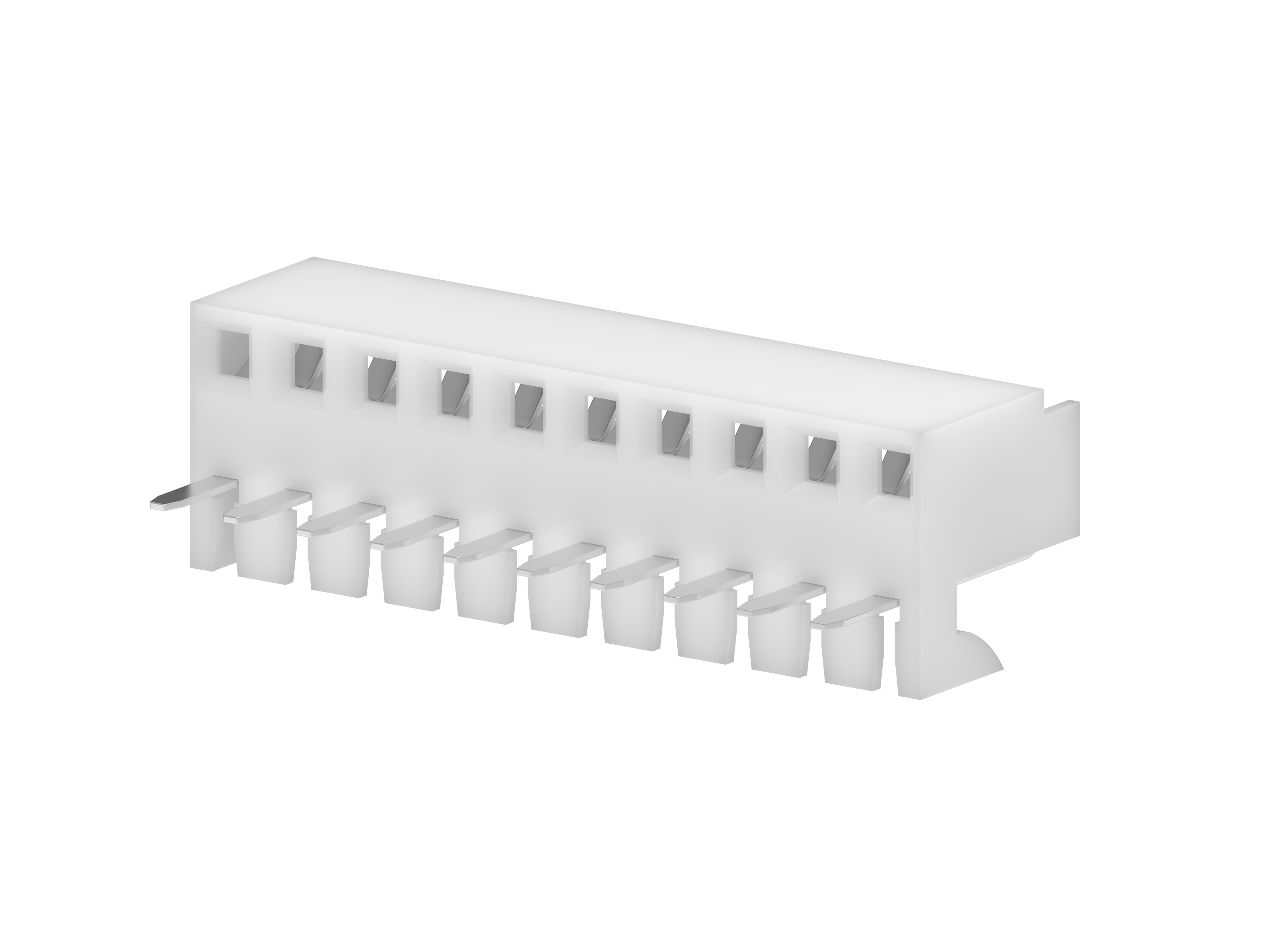

38001400 KK 254 by Molex
KK 254 PC Board Connector, Bottom Entry, End-to-End Stackable, with Cat Ear Terminal, 2.54µm Tin (Sn) Plating, 10 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
38-00-1400,
0038001400, A-4455-BH10F(P909) |
Where to Buy
Prices starting from US$0.64
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.98
|
434
in stock
|
Buy Now |
|
Conrad
from US$2.47
|
434
in stock
|
Buy Now |
|
Farnell
from US$1.79
|
391
in stock
|
Buy Now |
|
Newark Electronics
from US$1.64
|
82
in stock
|
Buy Now |
|
element14
from US$1.42
|
82
in stock
|
Buy Now |
|
RS
from US$2.32
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.25
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.31
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.64
|
0
in stock
|
Buy Now |
|
EME
from US$0.91
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.5A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Natural (White) |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Female |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 1.216/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.60mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | No |
| Stackable | Yes |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-board | TME |
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 10 Rastermaß: 2.54 mm 38001400 1 St. Tray | Conrad |
| PCB RECEPTACLES | Farnell |
| Connector, Rcpt, 10Pos, 1Row, 2.54Mm | Newark Electronics |
| CONNECTOR, RCPT, 10POS, 1ROW, 2.54MM | element14 |
| Molex 38-00-1400 PCB Socket | RS |
| 2.54 MM KK PCB CONNECTOR 10CKT | TTI Europe |
| KK 100 PCB ASSY BTM 10 CKT TIN | Heilind Americas |
