38001428 KK 254 by Molex

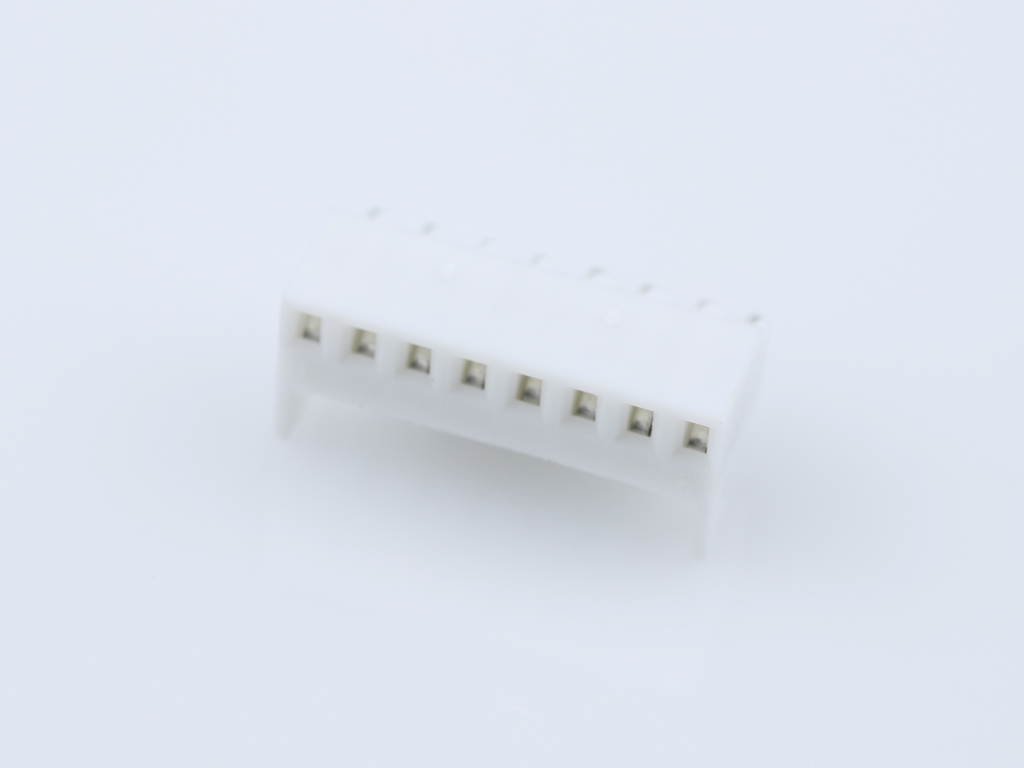

KK 254 PC Board Connector, Top Entry, End-to-End Stackable, 2.54µm Tin (Sn) Plating, 8 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
38-00-1428,
0038001428, A-4455-CZ08C(P909) |
Where to Buy
Prices starting from US$0.50
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.38
|
3,813
in stock
|
Buy Now |
|
Farnell
from US$1.24
|
3,432
in stock
|
Buy Now |
|
Newark Electronics
from US$1.23
|
88
in stock
|
Buy Now |
|
element14
from US$1.13
|
88
in stock
|
Buy Now |
|
Avnet America
from US$0.90
|
0
in stock
|
Buy Now |
|
RS Americas
from US$0.96
|
0
in stock
|
Buy Now |
|
Sager
from US$0.98
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.96
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.50
|
0
in stock
|
Buy Now |
|
EME
from US$0.65
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Board-to-Board, Signal |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.5A |
| Grounding To Pcb | No |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Natural (White) |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 0.866/g |
| Number Of Rows | 1 |
| Orientation | Top Entry |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.30mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Pcb | No |
| Stackable | Yes |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 8 Rastermaß: 2.54 mm 38001428 1 St. Tray | Conrad |
| CONN, RCPT, 8POS, 2.54MM, TH | Farnell |
| Board-To-Board Connector, Kk 4455 Series, Through Hole, Receptacle, 8, 2.54 Mm, Tin Plated Contacts Rohs Compliant: Yes |Molex 38-00-1428 | Newark Electronics |
| CONNECTOR, RCPT, 8POS, 1ROW, 2.54MM | element14 |
| Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Tray | Avnet America |
| KK 254 SERIES 2.54MM 8 WAY 1 ROW STRAIGHT PCB SOCKET THROUGH HOLE SOCKET STRIP | RS Americas |
| Headers & Wire Housings KK 100 PCB Assy Top 08 Ckt Tin | Sager |
| KK 100 PCB ASSY TOP 08 CKT TIN | Heilind Americas |
