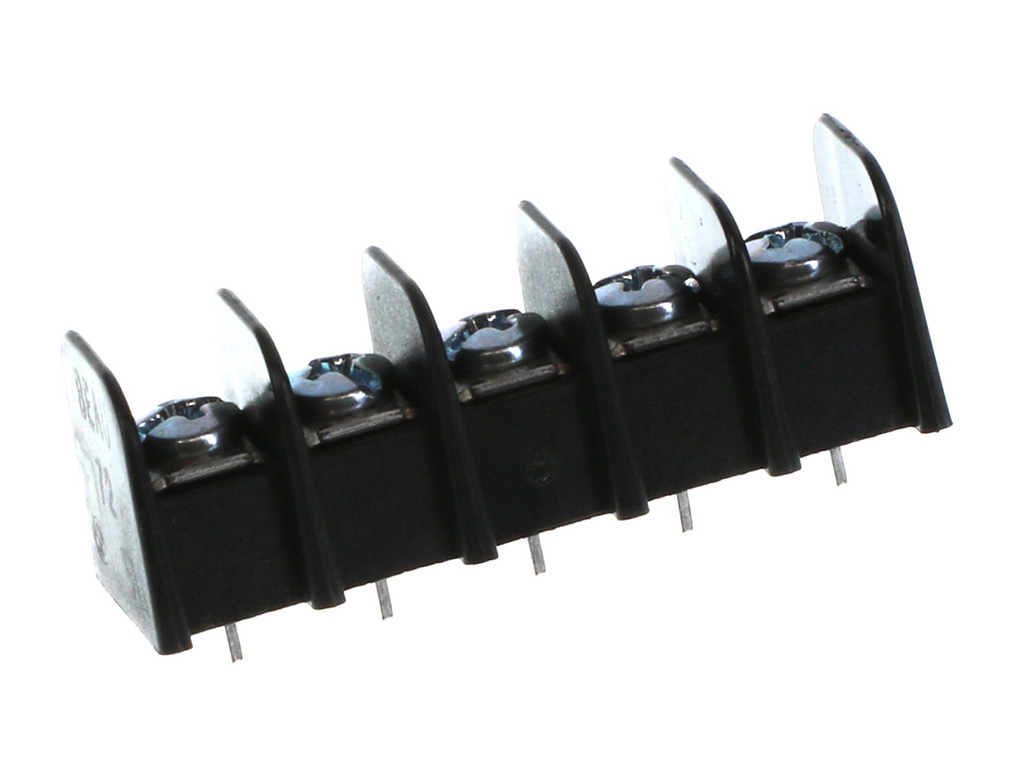

387206305 Fixed Mount Barrier by Molex
9.53mm Pitch Beau PCB Terminal Strip, without Mounting Ends, 5 Circuits
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
38720-6305,
0387206305, 72505-C |
Specifications
| Product Name | Fixed Mount Barrier |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 15.0A |
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Circuits Loaded | 5 |
| Circuits Maximum | 5 |
| Color Resin | Black |
| Entry Angle | Horizontal |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 14.800/g |
| Number Of Rows | 1 |
| Orientation | Horizontal |
| Panel Mount | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 3.18mm |
| Pc Tail Length | 4.80mm |
| Pitch Mating Interface | N/A |
| Pitch Termination Interface | 9.53mm |
| Plating Min Mating | 3.810µm |
| Plating Min Termination | 3.810µm |
| Polarized To Mating Part | No |
| Shrouded | Dual-Barrier |
| Stackable | No |
| Temperature Range Operating | -40° to +130°C |
| Wire Size Awg | 14, 16, 18, 20, 22 |
| Wire Size Mm | 0.33-2.08 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| .375 BARRIER 05P STYLE 5 | TTI Americas |
| SR BTS PC 5 ASY C | Heilind Americas |
| Sr Bts Pc 5 Asy C Rohs Compliant: Yes |Molex 38720-6305 | Newark Electronics |
| TERMINAL BLOCK, BARRIER, 5WAYS, 14AWG | Farnell |
