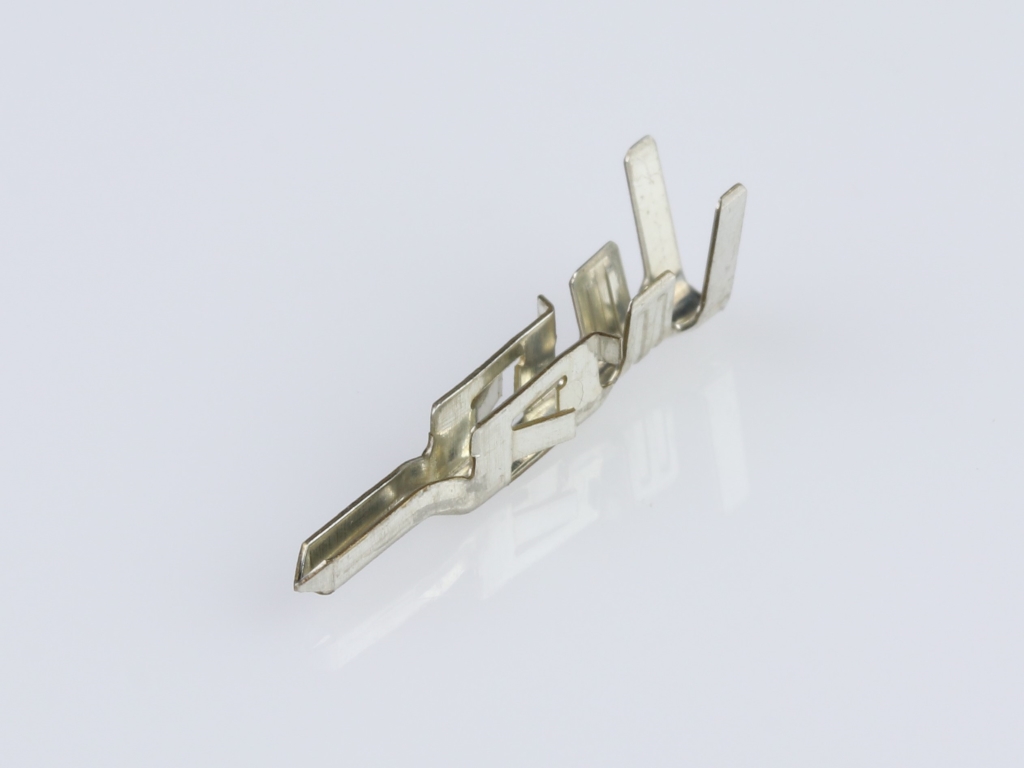

39000048 Mini-Fit by Molex
Mini-Fit Male Crimp Terminal, Matte Tin (Sn) Plated Brass, 28-22 AWG, Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-00-0048,
0039000048, 5558T2 |
Where to Buy
Prices starting from US$0.0170
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$0.0218
|
456,000
in stock
|
Buy Now |
|
Farnell
from US$0.0448
|
456,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.0170
|
432,000
in stock
|
Buy Now |
|
|
Heilind Americas
from US$0.0193
|
211,500
in stock
|
Buy Now |
|
TTI Asia
from US$0.0275
|
84,000
in stock
|
Buy Now |
|
element14
from US$0.0460
|
81,837
in stock
|
Buy Now |
|
Rutronik
from US$0.0235
|
60,000
in stock
|
Buy Now |
|
EME
from US$1.61
|
54,000
in stock
|
Buy Now |
|
RS
from US$0.10
|
41,900
in stock
|
Buy Now |
|
TME
from US$0.0259
|
36,000
in stock
|
Buy Now |
|
Sager
from US$0.0213
|
24,000
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.06
|
9,216
in stock
|
Buy Now |
|
Conrad
from US$0.0305
|
9,216
in stock
|
Buy Now |
|
Schukat Electronic
from US$0.0219
|
6,100
in stock
|
Buy Now |
|
Offical Electronic
-
|
15,453
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
6,000
in stock
|
Buy Now |
|
Compona
from US$0.0232
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.0193
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit |
|---|---|
| Application | Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 30 |
| Gender | Male |
| Material Metal | Brass |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Net Weight | 0.164/g |
| Packaging Alternative Part | Array |
| Plating Min Mating | 0.900µm |
| Plating Min Termination | 0.900µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 0.90-1.80mm |
| Wire Size Awg | 22, 24, 26, 28 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| NEW MINI FIT CONN TERM 555 | Heilind Europe |
| CONTACT, PIN, 22-28AWG, CRIMP | Farnell |
| Minifit Termcrp Male Bs Tin 22-28 5558T2 Rohs Compliant: Yes |Molex 39-00-0048 | Newark Electronics |
| MINI-FIT .165 CRMP 22-28AWG M | TTI Asia |
| CONTACT, PIN, 22AWG, CRIMP | element14 |
| Mini-Fit Crimp terminal AWG 22-28 | Rutronik |
| Molex 39-00-0048 Crimp Terminal | RS |
| Contact | TME |
| Headers & Wire Housings MiniFit TermCrp male Bs Tin 22-28 5558T2 | Sager |
| Molex 39000048 Mini-fit Male Crimp Terminal Tin 22-28 AWG 1pc | Rapid Electronics |
| MINIFIT 39000048 Molex Inhalt: 1 St. | Conrad |
| Term Crp Male AWG22-28 Taped | Schukat Electronic |
| MOLEX 39-00-0048 Male Crimp Terminal, 22-28 AWG, Reel Tin over Plated Brass Contact | Compona |
| REELED TERMINALS | TTI Europe |
| Contact PIN Crimp ST Cable Mount Reel | Avnet Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 39000048?
Additional datasheets, footprints and schematics for 39000048 are listed on our Part Details page. You can also find images and similar parts to 39000048 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 39000048 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 39000048 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 39000048 fall under?
The 39000048 is listed under Crimp Terminals.
Can I view similar or alternative parts?
You can view similar parts to 39000048 when available in the Crimp Terminals range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 39000048 you can contact the distributor directly for product support, shipping queries etc.
Is the 39000048 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 39000048 have stock available?
Authorised distributors including Heilind Europe, Farnell, Newark Electronics, Heilind Americas and TTI Asia have stock available or on a lead time for 39000048.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 39000048 often in real-time on the comparison pages.
What if I can't find stock of 39000048?
You can fill out our help required form which you can use to request a quote for 39000048 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
