39000066 Mini-Fit by Molex

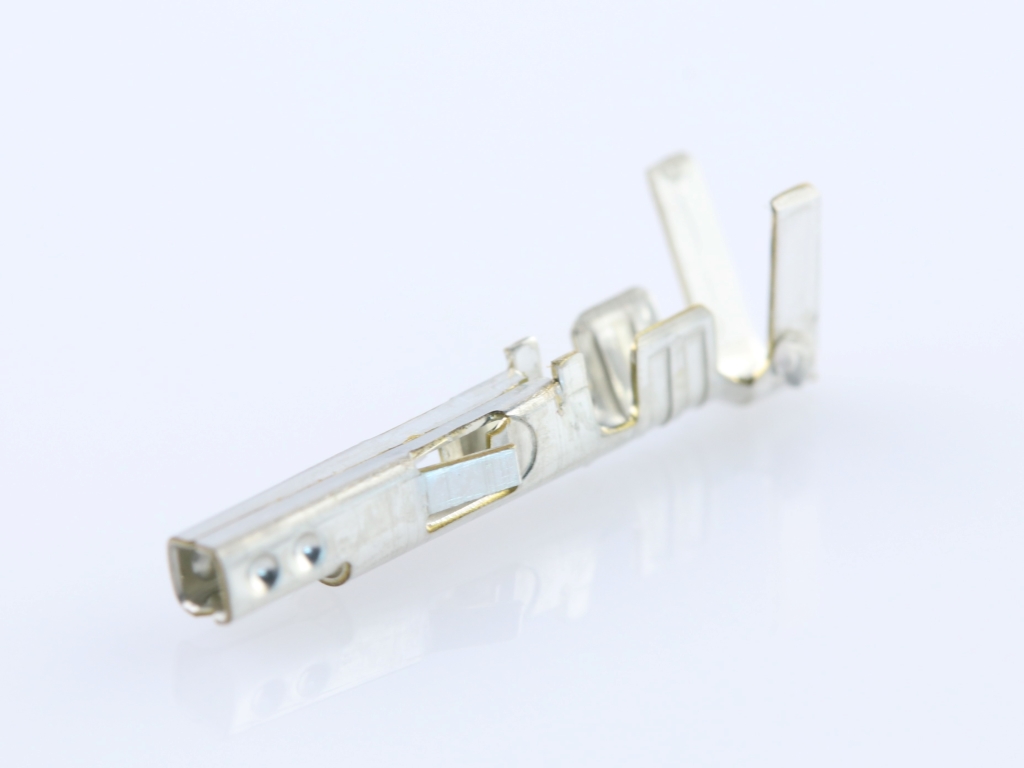

Mini-Fit Female Crimp Terminal, Tin (Sn) over Phosphor Bronze, 28-22 AWG, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-00-0066,
0039000066, 5556PBT2L |
Where to Buy
Prices starting from US$0.07
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.14
|
28,608
in stock
|
Buy Now |
|
Farnell
from US$0.12
|
25,900
in stock
|
Buy Now |
|
TTI Europe
from US$0.11
|
13,800
in stock
|
Buy Now |
|
Newark Electronics
from US$0.18
|
11,596
in stock
|
Buy Now |
|
element14
from US$0.11
|
6,360
in stock
|
Buy Now |
|
TME
from US$0.10
|
3,750
in stock
|
Buy Now |
|
RS
from US$0.14
|
82
in stock
|
Buy Now |
|
Offical Electronic
-
|
701
in stock
|
Buy Now |
|
Compona
from US$0.08
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.08
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.07
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.11
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 30 |
| Gender | Female |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 128.200/mg |
| Packaging Alternative Part | Array |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.914µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 0.90-1.80mm |
| Wire Size Awg | 22, 24, 26, 28 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MINIFIT 39000066 Molex Inhalt: 1 St. | Conrad |
| CONTACT, SOCKET, 22-28AWG, CRIMP | Farnell |
| TERM CRP FEM LSE BZ SN 22-28 | TTI Europe |
| Contact, Socket, 22Awg, Crimp | Newark Electronics |
| CONTACT, SOCKET, 22AWG, CRIMP | element14 |
| Contact | TME |
| Molex 39-00-0066 Crimp Terminal | RS |
| MOLEX 39-00-0066 Female Crimp Terminal, 22-28 AWG, Bag Tin over Phosphor Bronze | Compona |
| MINI-FIT TERMINAL 22-28 | Heilind Americas |
| MINI-FIT .165 CRMP 22-28AWG F | TTI Asia |
