39000076 Mini-Fit by Molex

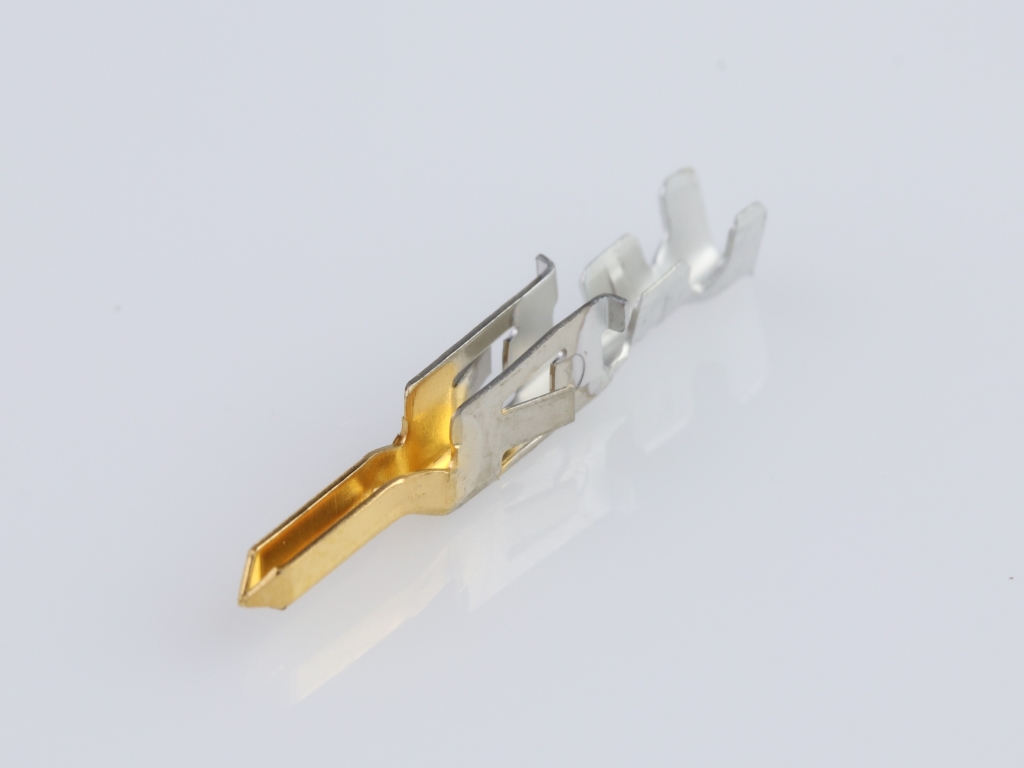

Mini-Fit Male Crimp Terminal, 0.38µm Selective Gold (Au) Plated Brass, Lead-Free, 24-18 AWG, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-00-0076,
0039000076, 5558GS4L |
Where to Buy
Prices starting from US$0.17
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.42
|
41,644
in stock
|
Buy Now |
|
Farnell
from US$0.31
|
37,480
in stock
|
Buy Now |
|
TTI Americas
from US$0.17
|
7,000
in stock
|
Buy Now |
|
element14
from US$0.31
|
3,640
in stock
|
Buy Now |
|
Heilind Americas
from US$0.19
|
1,993
in stock
|
Buy Now |
|
Newark Electronics
from US$0.26
|
330
in stock
|
Buy Now |
|
RS Americas
from US$0.37
|
37
in stock
|
Buy Now |
|
|
RS
from US$0.32
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.27
|
0
in stock
|
Buy Now |
|
Compona
from US$0.19
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.19
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.18
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit |
|---|---|
| Application | Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 30 |
| Gender | Male |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Net Weight | 0.126/g |
| Packaging Alternative Part | Array |
| Plating Min Mating | 0.380µm |
| Plating Min Termination | 2.032µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.30-3.10mm |
| Wire Size Awg | 18, 20, 22, 24 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 39000076 MINIFIT JR TERM MALE 39000076 Molex Inhalt: 1 St. | Conrad |
| MINIFIT TERM CRP MAL MALE L AU TIN | Farnell |
| MINI-FIT .165 CRMP 18-24 AWG | TTI Americas |
| CONTACT, PIN, 24-18AWG, CRIMP | element14 |
| MINIFIT TERM CRP MALE L AU TIN | Heilind Americas |
| Contact, Pin, 18Awg, Crimp | Newark Electronics |
| CONN MINI-FIT CRIMP TERM MEMALE 24-18 AWG GOLD PLATED | RS Americas |
| Molex 39-00-0076 Crimp Terminal | RS |
| Contact PIN Crimp ST Cable Mount Loose Piece | Avnet America |
| MOLEX 39-00-0076 Male Crimp Terminal 18-24 AWG, Bag Brass, Gold Contact Plating, Lead-free | Compona |
| TERM CRP MALE L AU 18-24 | TTI Europe |
