39000140 Mini-Fit by Molex

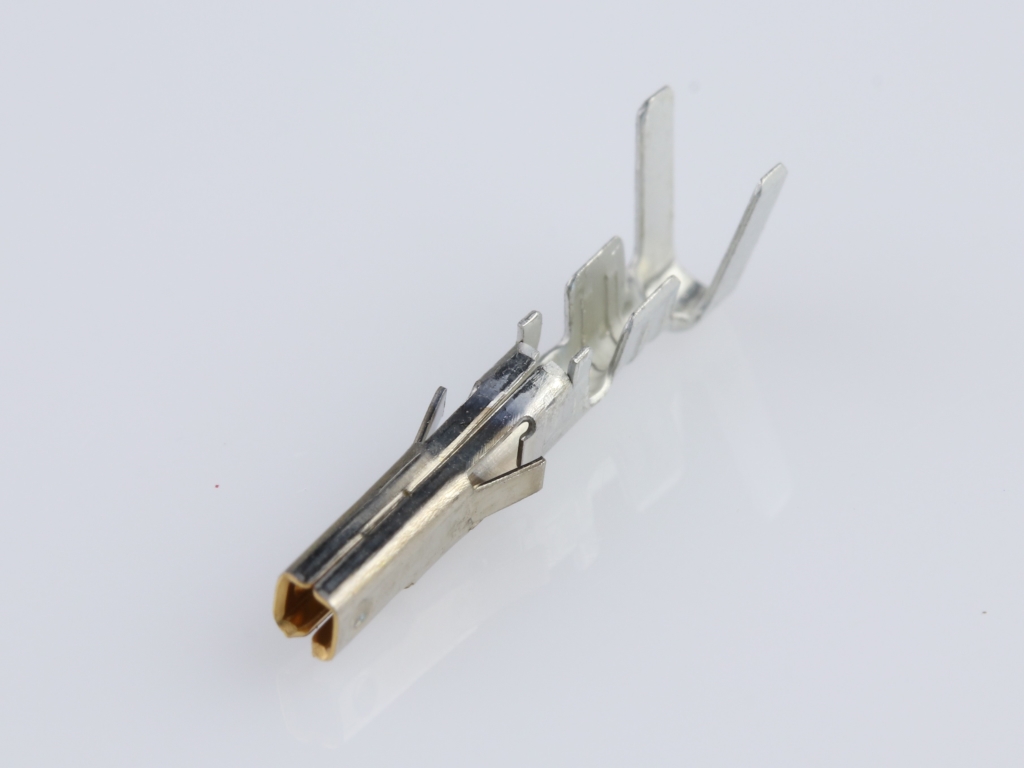

Mini-Fit Female Crimp Terminal, Selective Gold (Au) and Selective Tin (Sn) over Nickel (Ni), 28-22 AWG, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-00-0140,
0039000140, 5556GS8L |
Where to Buy
Prices starting from US$0.23
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$0.41
|
10,801
in stock
|
Buy Now |
|
Farnell
from US$0.46
|
10,801
in stock
|
Buy Now |
|
Heilind Americas
from US$0.37
|
9,828
in stock
|
Buy Now |
|
TTI Americas
from US$0.37
|
8,512
in stock
|
Buy Now |
|
Newark Electronics
from US$0.46
|
19
in stock
|
Buy Now |
|
RS Americas
from US$0.60
|
0
in stock
|
Buy Now |
|
Compona
from US$0.25
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.58
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.23
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit |
|---|---|
| Application | Power, Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 30 |
| Gender | Female |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Net Weight | 115.701/mg |
| Packaging Alternative Part | Array |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 0.90-1.80mm |
| Wire Size Awg | 22, 24, 26, 28 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONTACT, SOCKET, 28-22AWG, CRIMP | element14 |
| MINIFIT TERM CRP FEM LSE BS 5 AU 22-28 | Heilind Americas |
| MINI-FIT .165 CRMP 22-28 AWG | TTI Americas |
| Minifit Term Crp Fem Lse Bs 50Au 22-28 Rohs Compliant: Yes |Molex 39-00-0140 | Newark Electronics |
| CONTACT, FOR MINI-FIT, JR., 28-22 AWG, 0.035-0.071, GOLD OVER BRASS, FEMALE | RS Americas |
| MOLEX 39-00-0140 Female Crimp Terminal, 22-28 AWG, Bag Selective Gold and Tin over Nickel | Compona |
| Molex 39000140 MINIFIT JR TERM FEMA 39000140 Molex Inhalt: 1 St. | Conrad |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 39000140?
Additional datasheets, footprints and schematics for 39000140 are listed on our Part Details page. You can also find images and similar parts to 39000140 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 39000140 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 39000140 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 39000140 fall under?
The 39000140 is listed under Crimp Terminals.
Can I view similar or alternative parts?
You can view similar parts to 39000140 when available in the Crimp Terminals range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 39000140 you can contact the distributor directly for product support, shipping queries etc.
Is the 39000140 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 39000140 have stock available?
Authorised distributors including element14, Farnell, Heilind Americas, TTI Americas and Newark Electronics have stock available or on a lead time for 39000140.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 39000140 often in real-time on the comparison pages.
What if I can't find stock of 39000140?
You can fill out our help required form which you can use to request a quote for 39000140 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
