39000207 Mini-Fit by Molex

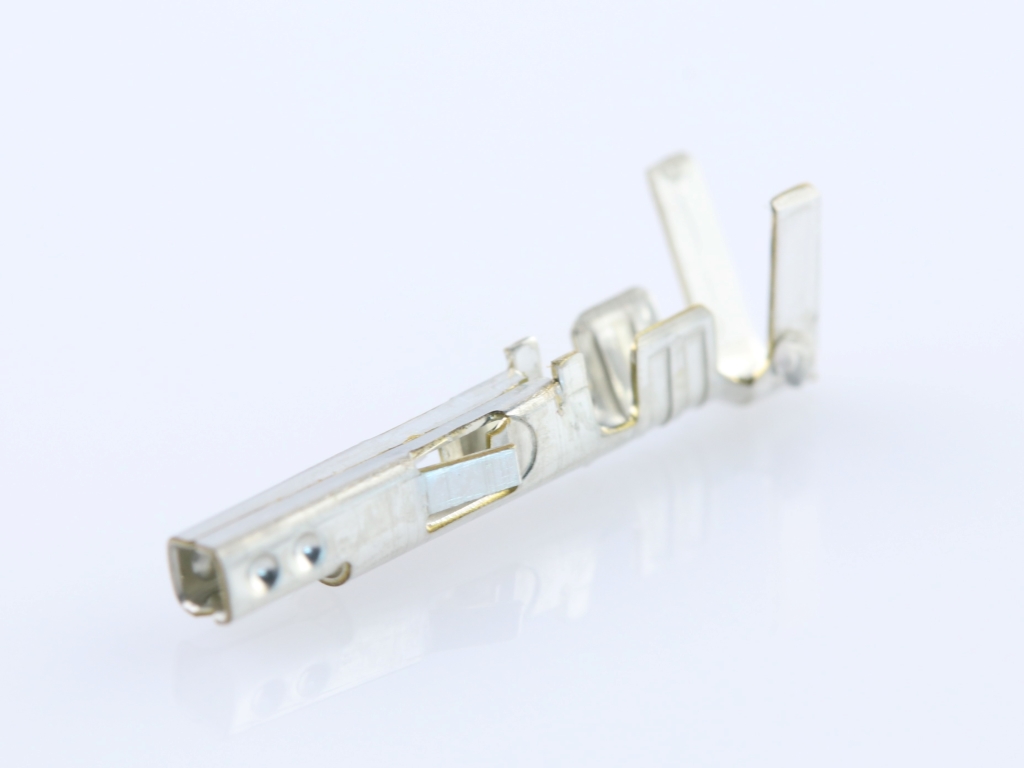

Mini-Fit Female Crimp Terminal, Tin (Sn) over Nickel (Ni), 24-18 AWG, Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-00-0207,
0039000207, 5556-SP |
Where to Buy
Prices starting from US$0.0270
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.0270
|
308,000
in stock
|
Buy Now |
|
TTI Americas
from US$0.0296
|
260,000
in stock
|
Buy Now |
|
Farnell
from US$0.06
|
252,000
in stock
|
Buy Now |
|
Heilind Americas
from US$0.0293
|
219,000
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.0497
|
28,000
in stock
|
Buy Now |
|
RS
from US$0.12
|
8,100
in stock
|
Buy Now |
|
element14
from US$0.06
|
6,102
in stock
|
Buy Now |
|
TME
from US$0.06
|
3,693
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.08
|
2,375
in stock
|
Buy Now |
|
Conrad
from US$0.0463
|
2,375
in stock
|
Buy Now |
|
|
RS Americas
from US$0.05
|
14
in stock
|
Buy Now |
|
Rutronik
from US$0.06
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.0347
|
0
in stock
|
Buy Now |
|
Compona
from US$0.0463
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.0487
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.0277
|
0
in stock
|
Buy Now |
|
EME
from US$0.05
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 30 |
| Gender | Female |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.130/g |
| Packaging Alternative Part | Array |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 1.270µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.30-3.10mm |
| Wire Size Awg | 18, 20, 22, 24 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Minifit Term Crp Fem Chn Bs Tin 18-24 Rohs Compliant: Yes |Molex 39-00-0207 | Newark Electronics |
| MINI-FIT .165 CRMP 18-24AWG F | TTI Americas |
| CONTACT, SOCKET, 18-24AWG, CRIMP | Farnell |
| MINIFIT TERM CRP FEM CHN BS TI | Heilind Americas |
| MINI FIT FEMALE CRIMP TERMINAL | TTI Europe |
| Molex 39-00-0207 Crimp Terminal | RS |
| CONTACT, SOCKET, 24-18AWG, CRIMP | element14 |
| Contact | TME |
| Molex 39000207 Mini-fit Female Crimp Terminal Tin/ni 18-24 AWG | Rapid Electronics |
| MINIFIT 39000207 Molex Inhalt: 1 St. | Conrad |
| HEADERS, MN-FT TERM 18-24G F REEL OF 4000 | RS Americas |
| Mini-Fit Crimp terminal FEMALE AWG 18-24 | Rutronik |
| Contact, Mini-Fit Jr. 5556, Socket, Crimp, 18 AWG, Tin Plated Contacts | Avnet America |
| MOLEX 39-00-0207 Mini-Fit Crimp female AWG18-24 Serie 5556 | Compona |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 39000207?
Additional datasheets, footprints and schematics for 39000207 are listed on our Part Details page. You can also find images and similar parts to 39000207 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 39000207 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 39000207 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 39000207 fall under?
The 39000207 is listed under Crimp Terminals.
Can I view similar or alternative parts?
You can view similar parts to 39000207 when available in the Crimp Terminals range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 39000207 you can contact the distributor directly for product support, shipping queries etc.
Is the 39000207 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 39000207 have stock available?
Authorised distributors including Newark Electronics, TTI Americas, Farnell, Heilind Americas and TTI Europe have stock available or on a lead time for 39000207.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 39000207 often in real-time on the comparison pages.
What if I can't find stock of 39000207?
You can fill out our help required form which you can use to request a quote for 39000207 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
