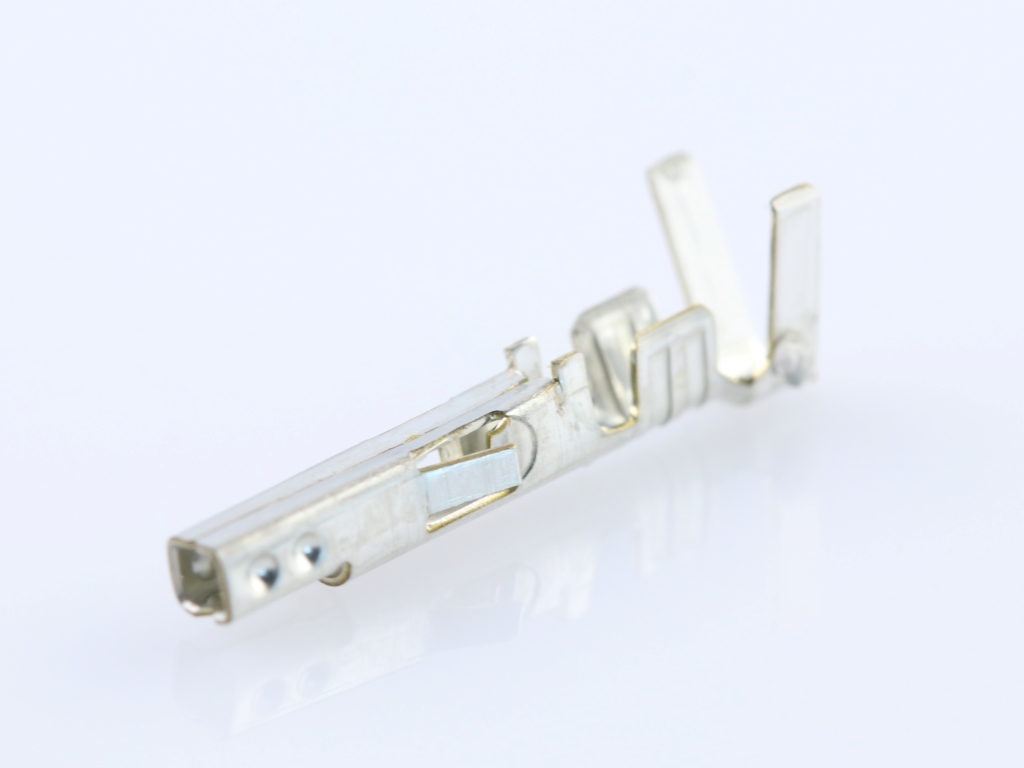

39000213 Mini-Fit by Molex
Mini-Fit Female Crimp Terminal, Tin (Sn) over Phosphor Bronze, 24-18 AWG, Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-00-0213,
0039000213, 5556-PBSP |
Where to Buy
Prices starting from US$0.05
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.06
|
612,000
in stock
|
Buy Now |
|
Conrad
from US$0.20
|
252,000
in stock
|
Buy Now |
|
Farnell
from US$0.22
|
232,000
in stock
|
Buy Now |
|
TTI Europe
from US$0.14
|
16,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.29
|
8,000
in stock
|
Buy Now |
|
element14
from US$0.20
|
8,000
in stock
|
Buy Now |
|
RS
from US$0.25
|
6,397
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.07
|
4,000
in stock
|
Buy Now |
|
|
RS Americas
from US$0.11
|
1,424
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
5,250
in stock
|
Buy Now |
|
Avnet America
from US$0.07
|
0
in stock
|
Buy Now |
|
TME
from US$0.21
|
0
in stock
|
Buy Now |
|
Compona
from US$0.19
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.19
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.05
|
0
in stock
|
Buy Now |
|
EME
from US$0.22
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 30 |
| Gender | Female |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.140/g |
| Packaging Alternative Part | Array |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 1.270µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.30-3.10mm |
| Wire Size Awg | 18, 20, 22, 24 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MINIFIT TERM CRP FEM CHN BZ TI | Heilind Americas |
| Molex 39000213 MINIFIT JR TERM FEMA 39000213 Molex Inhalt: 1 St. | Conrad |
| CONTACT, SOCKET, 18-24AWG, CRIMP | Farnell |
| MINI-FIT FEMALE CRIMP TERMINAL | TTI Europe |
| Contact, Socket, 24-18Awg, Crimp | Newark Electronics |
| CONTACT, SOCKET, 24-18AWG, CRIMP | element14 |
| Molex 39-00-0213 Crimp Terminal | RS |
| MINI-FIT .165 CRMP 18-24AWG F | TTI Americas |
| MINI-FIT CRIMP TERMINAL 5556 18-24 AWG REEL PHOSPHOR BRONZE TIN (SN) | RS Americas |
| Contact Socket Crimp Straight Cable Mount T/R | Avnet America |
| Contact | TME |
| MOLEX 39-00-0213 Female Crimp Terminal, 18-24 AWG, Reel Tin over Phosphor Bronze | Compona |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 39000213?
Additional datasheets, footprints and schematics for 39000213 are listed on our Part Details page. You can also find images and similar parts to 39000213 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 39000213 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 39000213 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 39000213 fall under?
The 39000213 is listed under Crimp Terminals.
Can I view similar or alternative parts?
You can view similar parts to 39000213 when available in the Crimp Terminals range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 39000213 you can contact the distributor directly for product support, shipping queries etc.
Is the 39000213 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 39000213 have stock available?
Authorised distributors including Heilind Americas, Conrad, Farnell, TTI Europe and Newark Electronics have stock available or on a lead time for 39000213.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 39000213 often in real-time on the comparison pages.
What if I can't find stock of 39000213?
You can fill out our help required form which you can use to request a quote for 39000213 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
