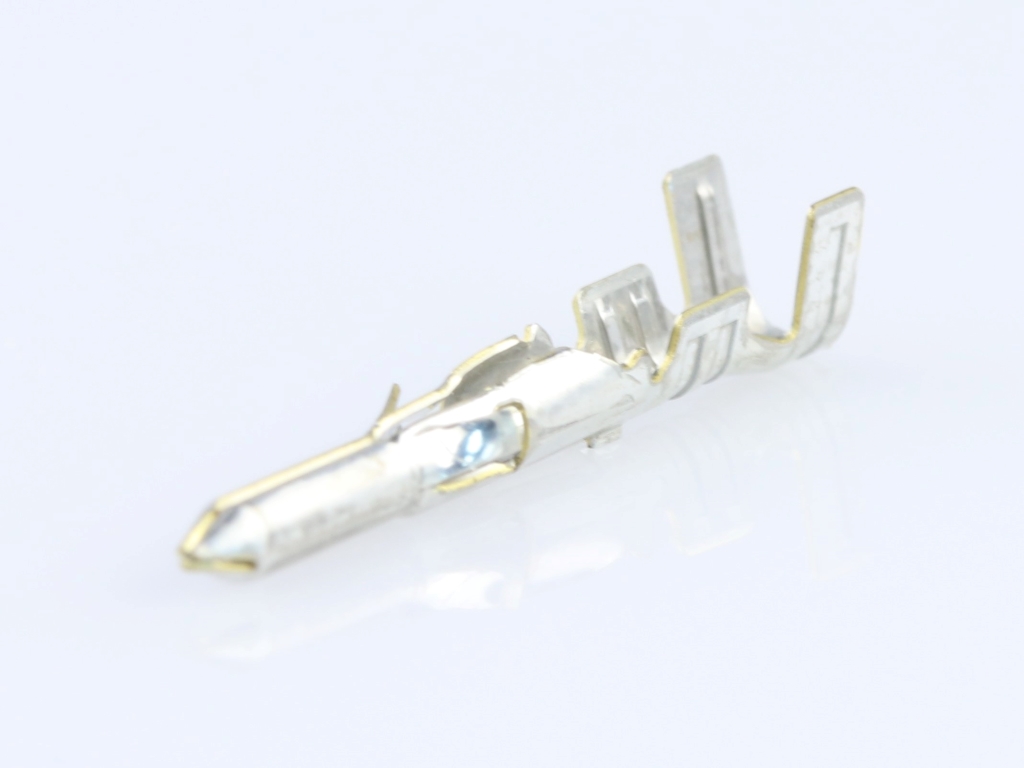

39000280 Standard .062" by Molex
1.57mm Diameter, Standard .062" Pin and Socket Crimp Terminal, Series 1854, 3.68mm Pitch, Male, Tin (Sn) Plated Brass Contact, 28-22 AWG, Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-00-0280,
0039000280, 1854T |
Where to Buy
Prices starting from US$0.0247
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.0247
|
80,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.0460
|
0
in stock
|
Buy Now |
|
RS Americas
from US$0.0400
|
0
in stock
|
Buy Now |
|
element14
from US$0.0311
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.0280
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.0289
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.0270
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Standard .062" |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Gender | Male |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 143.400/mg |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.889µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.10-1.50mm |
| Wire Size Awg | 22, 24, 26, 28 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| .062 PIN&SOCKET 22-28AWG MA | TTI Americas |
| .062Dia Crimp Pin Rohs Compliant: Yes |Molex 39-00-0280 | Newark Electronics |
| .062DIA CRIMP PIN | RS Americas |
| CONTACT, PIN, 22AWG, CRIMP | element14 |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 39000280?
Additional datasheets, footprints and schematics for 39000280 are listed on our Part Details page. You can also find images and similar parts to 39000280 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 39000280 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 39000280 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 39000280 fall under?
The 39000280 is listed under Crimp Terminals.
Can I view similar or alternative parts?
You can view similar parts to 39000280 when available in the Crimp Terminals range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 39000280 you can contact the distributor directly for product support, shipping queries etc.
Is the 39000280 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 39000280 have stock available?
Authorised distributors including TTI Americas, Newark Electronics, RS Americas, element14 and Heilind Americas have stock available or on a lead time for 39000280.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 39000280 often in real-time on the comparison pages.
What if I can't find stock of 39000280?
You can fill out our help required form which you can use to request a quote for 39000280 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
