39012145 Mini-Fit Jr. by Molex

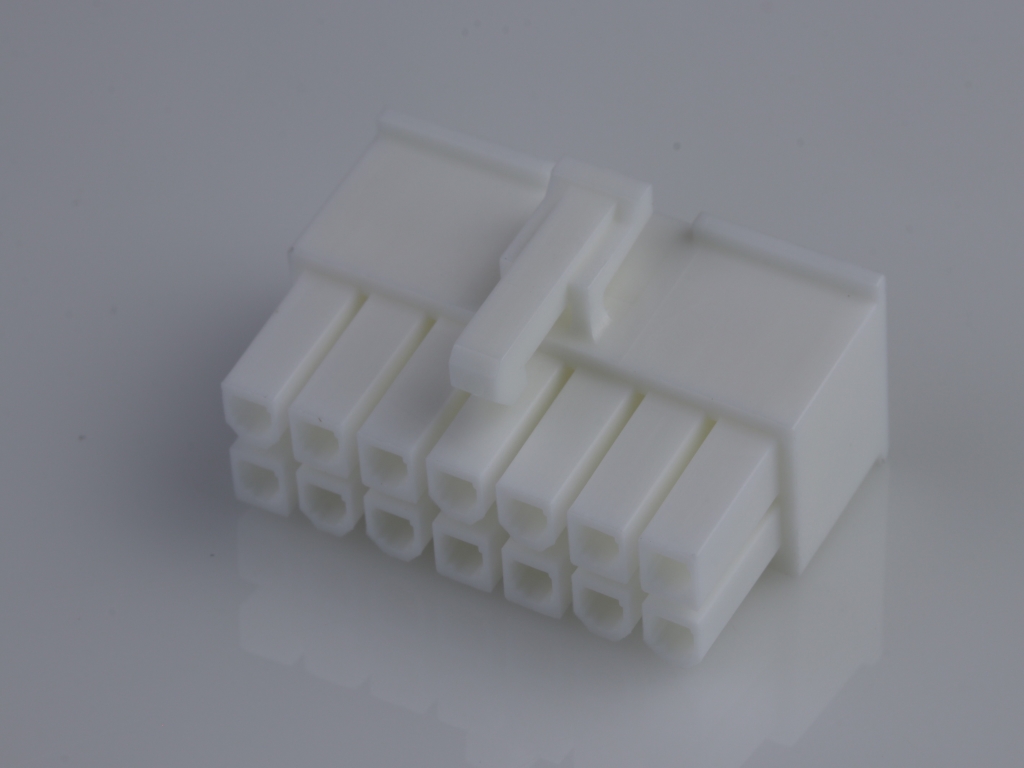

Mini-Fit Jr. Receptacle Housing, Dual Row, 14 Circuits, UL 94V-0, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-01-2145,
0039012145, 5557-14R-210 |
Where to Buy
Prices starting from US$0.17
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.17
|
48,584
in stock
|
Buy Now |
|
TTI Europe
from US$0.40
|
29,750
in stock
|
Buy Now |
|
Farnell
from US$0.54
|
13,702
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.17
|
9,545
in stock
|
Buy Now |
|
element14
from US$0.53
|
4,065
in stock
|
Buy Now |
|
RS
from US$0.97
|
1,915
in stock
|
Buy Now |
|
Newark Electronics
from US$0.34
|
1,579
in stock
|
Buy Now |
|
TME
from US$0.60
|
925
in stock
|
Buy Now |
|
Schukat Electronic
from US$0.61
|
375
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.90
|
244
in stock
|
Buy Now |
|
Conrad
from US$0.88
|
244
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
2,025
in stock
|
Buy Now |
|
Offical Electronic
-
|
101
in stock
|
Buy Now |
|
Avnet America
from US$0.22
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.41
|
0
in stock
|
Buy Now |
|
Compona
from US$0.47
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.45
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.34
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Power, Wire-to-Board, Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 14 |
| Color Resin | Natural |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 2.986/mg |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| NEW MINI FIT CONN CRIMP REC HOUS 5557 | Heilind Americas |
| MINI-FIT JR. RECEPT 94V-0 | TTI Europe |
| CONNECTOR HOUSING, RCPT, 14POS, 4.2MM | Farnell |
| MINI-FIT JR REC 14P 94V-0 | TTI Americas |
| CONNECTOR HOUSING, RCPT, 14POS | element14 |
| Molex 39-01-2145 Connector Housing | RS |
| Connector Housing, Rcpt, 14Pos | Newark Electronics |
| Connector: wire-wire/PCB | TME |
| Male Housing 14-pole 2-row V-0 N | Schukat Electronic |
| Molex 39012145 Mini-fit Jr. Receptacle Housing 14 Circuits Ul 94v-0 | Rapid Electronics |
| Molex Buchsengehäuse-Kabel 39012145 1 St. | Conrad |
| Connector Housing, Pull Tabs, UL 94V-0, Mini-Fit Jr. 5557, Receptacle, 14 Ways, 4.2 mm | Avnet America |
| MINI-FIT JR. SERIES 4.2MM PITCH 14 WAY 2 ROW FEMALE STRAIGHT PCB HOUSING 5557 | RS Americas |
| MOLEX 39-01-2145 Receptacle Housing 2 Row UL94V-0 14p Receptacle Housing 2 Row UL94V-0 14p | Compona |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 39012145?
Additional datasheets, footprints and schematics for 39012145 are listed on our Part Details page. You can also find images and similar parts to 39012145 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 39012145 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 39012145 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 39012145 fall under?
The 39012145 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 39012145 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 39012145 you can contact the distributor directly for product support, shipping queries etc.
Is the 39012145 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 39012145 have stock available?
Authorised distributors including Heilind Americas, TTI Europe, Farnell, TTI Americas and element14 have stock available or on a lead time for 39012145.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 39012145 often in real-time on the comparison pages.
What if I can't find stock of 39012145?
You can fill out our help required form which you can use to request a quote for 39012145 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
