39012160 Mini-Fit Jr. by Molex

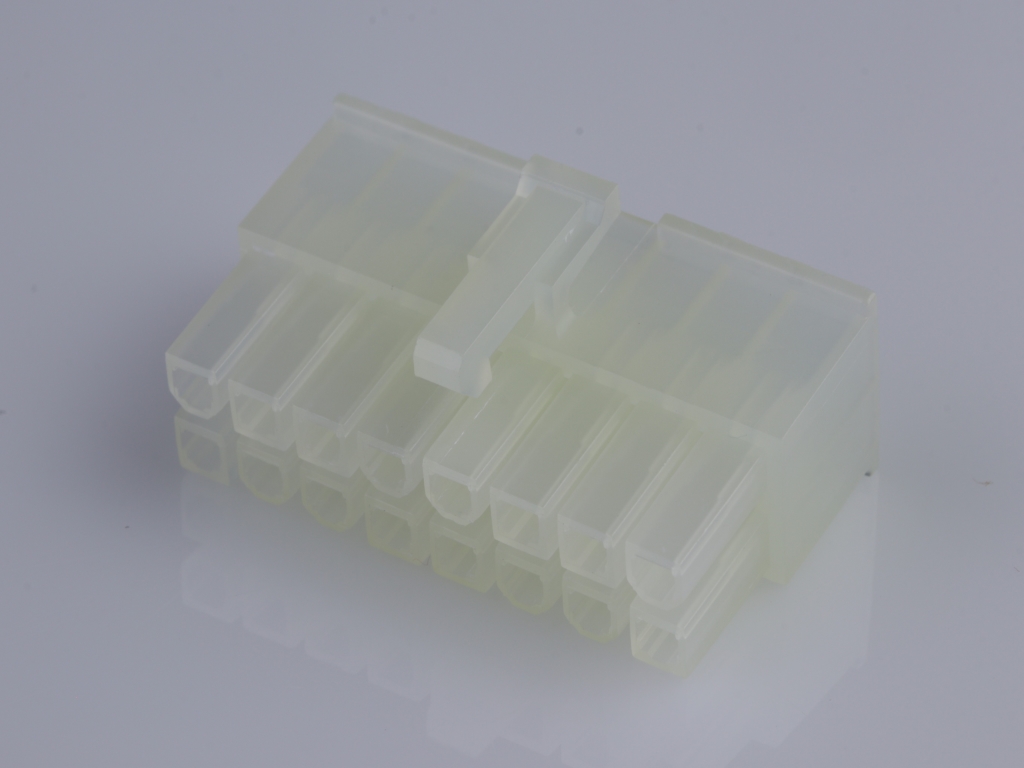

Mini-Fit Jr. Receptacle Housing, Dual Row, 16 Circuits, UL 94V-2, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-01-2160,
0039012160, 5557-16R |
Where to Buy
Prices starting from US$0.20
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.39
|
46,201
in stock
|
Buy Now |
|
Heilind Americas
from US$0.22
|
44,673
in stock
|
Buy Now |
|
TTI Americas
from US$0.22
|
18,378
in stock
|
Buy Now |
|
element14
from US$0.36
|
16,192
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.23
|
13,904
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.21
|
12,700
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.21
|
6,500
in stock
|
Buy Now |
|
Newark Electronics
from US$0.43
|
4,912
in stock
|
Buy Now |
|
TME
from US$0.27
|
4,530
in stock
|
Buy Now |
|
EME
from US$0.57
|
1,779
in stock
|
Buy Now |
|
RS Americas
from US$0.49
|
1,743
in stock
|
Buy Now |
|
|
RS
from US$0.57
|
975
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.44
|
319
in stock
|
Buy Now |
|
Conrad
from US$0.51
|
319
in stock
|
Buy Now |
|
Offical Electronic
-
|
12,142
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
2,700
in stock
|
Buy Now |
|
Rutronik
from US$0.20
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.28
|
0
in stock
|
Buy Now |
|
Compona
from US$0.25
|
0
in stock
|
Buy Now |
|
Schukat Electronic
from US$0.29
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 16 |
| Color Resin | Natural |
| Flammability | 94V-2 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 3.204/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTOR HOUSING, RCPT, 16POS, 4.2MM | Farnell |
| NEW MINI FIT CONN REC HSG 555716R | Heilind Americas |
| MINI-FIT JR REC 16P 94V-2 | TTI Americas |
| MINI-FIT JR. RECEPT 94V-2 | TTI Europe |
| Connector Housing, Rcpt, 16Pos | Newark Electronics |
| Connector: wire-wire/PCB | TME |
| MINI-FIT JR. SERIES 4.2MM PITCH 16 WAY 2 ROW FEMALE STRAIGHT PCB HOUSING 5557 | RS Americas |
| Molex 39-01-2160 Connector Housing | RS |
| Molex 39012160 Mini-fit Jr. 16-pin 4.2mm Spacing Ul 94v-2 Housing | Rapid Electronics |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 16 Rastermaß: 4.2 mm 39012160 1 St. Bag | Conrad |
| 16P RECEPTACLE 2 ROW STR W LOCK | Rutronik |
| Connector Housing, Nylon 66, Natural, Mini-Fit Jr. 5557 Series, Receptacle, 16 Ways, 4.2 mm | Avnet America |
| MOLEX 39-01-2160 Receptacle Housing 2 Row UL94V-2 16p Receptacle Housing 2 Row UL94V-2 16p | Compona |
| Male Housing 16-pole 2-row V-2 N | Schukat Electronic |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 39012160?
Additional datasheets, footprints and schematics for 39012160 are listed on our Part Details page. You can also find images and similar parts to 39012160 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 39012160 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 39012160 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 39012160 fall under?
The 39012160 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 39012160 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 39012160 you can contact the distributor directly for product support, shipping queries etc.
Is the 39012160 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 39012160 have stock available?
Authorised distributors including Farnell, Heilind Americas, TTI Americas, element14 and Heilind Europe have stock available or on a lead time for 39012160.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 39012160 often in real-time on the comparison pages.
What if I can't find stock of 39012160?
You can fill out our help required form which you can use to request a quote for 39012160 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
