39012166 Mini-Fit Jr. by Molex

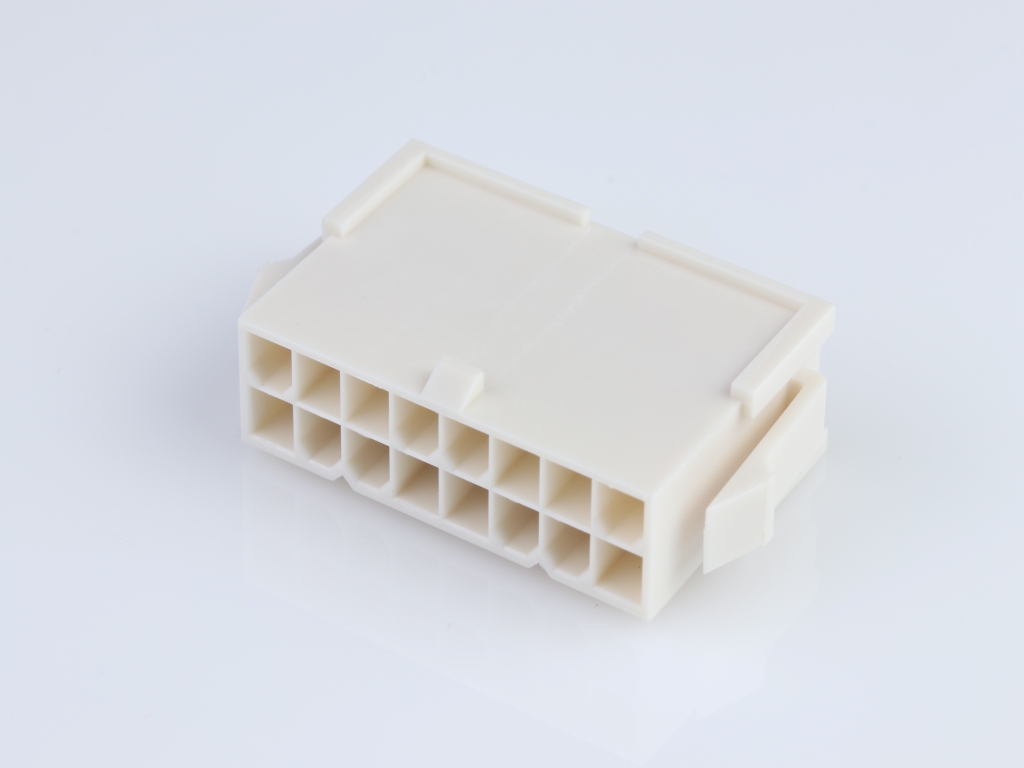

Mini-Fit Jr. Plug Housing, Dual Row, 16 Circuits, UL 94V-0, with Panel Mounting Ears, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-01-2166,
0039012166, 5559-16P-210 |
Where to Buy
Prices starting from US$0.50
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.72
|
6,391
in stock
|
Buy Now |
|
Farnell
from US$0.99
|
4,070
in stock
|
Buy Now |
|
element14
from US$0.79
|
2,489
in stock
|
Buy Now |
|
Newark Electronics
from US$0.94
|
1,434
in stock
|
Buy Now |
|
Heilind Americas
from US$0.61
|
952
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.59
|
800
in stock
|
Buy Now |
|
TME
from US$0.71
|
415
in stock
|
Buy Now |
|
RS
from US$0.66
|
201
in stock
|
Buy Now |
|
|
RS Americas
from US$1.28
|
38
in stock
|
Buy Now |
|
Avnet America
from US$0.69
|
0
in stock
|
Buy Now |
|
Rapid Electronics
from US$1.63
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.50
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.68
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 16 |
| Color Resin | Natural |
| Flammability | 94V-0 |
| Gender | Plug |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 4.824/g |
| Number Of Rows | 2 |
| Panel Mount | Yes |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MINI-FIT JR PLG 16P 94V-0 | TTI Americas |
| CONNECTOR HOUSING, PLUG, 16POS, 4.2MM | Farnell |
| Connector Housing, Plug, 16Pos | Newark Electronics |
| HOUSING | Heilind Americas |
| MINI-FIT JR. PLUG HOUSING | TTI Europe |
| Connector: wire-wire | TME |
| Molex 39-01-2166 Connector Housing | RS |
| MINI-FIT JR. SERIES 4.2MM PITCH 16 WAY 2 ROW MALE STRAIGHT PCB HOUSING 5559 | RS Americas |
| Conn Housing M 16 POS 4.2mm Crimp ST Panel Mount Bag | Avnet America |
| Molex 39012166 Mini-fit Jr. 16 Pin Plug 4.2mm Panel Mount Ears | Rapid Electronics |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 39012166?
Additional datasheets, footprints and schematics for 39012166 are listed on our Part Details page. You can also find images and similar parts to 39012166 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 39012166 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 39012166 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 39012166 fall under?
The 39012166 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 39012166 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 39012166 you can contact the distributor directly for product support, shipping queries etc.
Is the 39012166 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 39012166 have stock available?
Authorised distributors including TTI Americas, Farnell, element14, Newark Electronics and Heilind Americas have stock available or on a lead time for 39012166.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 39012166 often in real-time on the comparison pages.
What if I can't find stock of 39012166?
You can fill out our help required form which you can use to request a quote for 39012166 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
