39012185 Mini-Fit Jr. by Molex

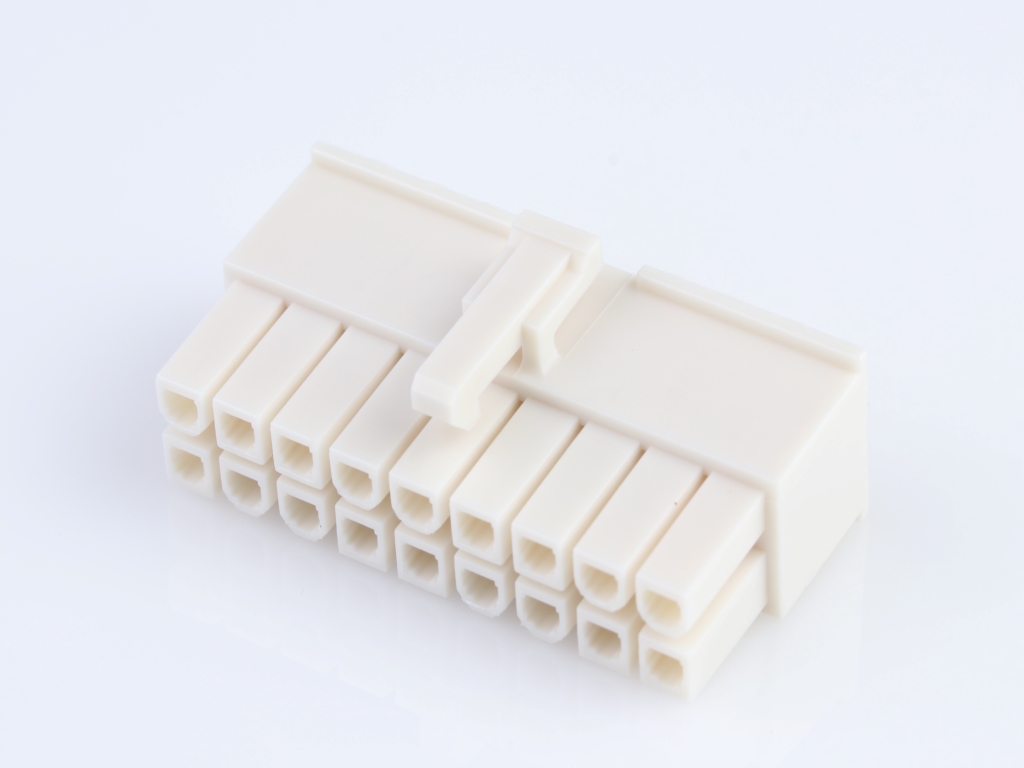

Mini-Fit Jr. Receptacle Housing, Dual Row, 18 Circuits, UL 94V-0, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-01-2185,
0039012185, 5557-18R-210 |
Where to Buy
Prices starting from US$0.45
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.62
|
30,511
in stock
|
Buy Now |
|
Heilind Americas
from US$0.45
|
10,714
in stock
|
Buy Now |
|
element14
from US$0.67
|
6,374
in stock
|
Buy Now |
|
Farnell
from US$0.68
|
6,084
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.67
|
3,200
in stock
|
Buy Now |
|
RS
from US$1.29
|
1,020
in stock
|
Buy Now |
|
TME
from US$0.85
|
764
in stock
|
Buy Now |
|
Schukat Electronic
from US$0.82
|
525
in stock
|
Buy Now |
|
Avnet America
from US$0.46
|
306
in stock
|
Buy Now |
|
Newark Electronics
from US$0.78
|
220
in stock
|
Buy Now |
|
Conrad
from US$1.16
|
200
in stock
|
Buy Now |
|
|
RS Americas
from US$0.84
|
99
in stock
|
Buy Now |
|
Offical Electronic
-
|
13
in stock
|
Buy Now |
|
Rapid Electronics
from US$1.20
|
0
in stock
|
Buy Now |
|
Compona
from US$0.68
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.65
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.55
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Power, Wire-to-Board, Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 18 |
| Color Resin | Natural |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 3.655/mg |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MINI-FIT JR REC 18P 94V-0 | TTI Americas |
| 18CKT RECEPTACLE HOUSING 555718R210 | Heilind Americas |
| CONNECTOR HOUSING, RCPT, 18POS | element14 |
| MINI-FIT JR. RECEPT 94V-0 18CT | TTI Europe |
| Molex 39-01-2185 Connector Housing | RS |
| Connector: wire-wire/PCB | TME |
| Male Housing 18-pole 2-row V-0 N | Schukat Electronic |
| Conn Wire to Board Housing Receptacle 18 POS 4.2mm ST Cable Mount Bag | Avnet America |
| Connector Housing, Rcpt, 18Pos | Newark Electronics |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 18 Rastermaß: 4.2 mm 39012185 1 St. Bag | Conrad |
| MINI-FIT JR. SERIES 4.2MM PITCH 18 WAY 2 ROW FEMALE STRAIGHT PCB HOUSING 5557 | RS Americas |
| Molex 39012185 Mini-fit Jr Housing 18 Pins 4.2mm Spacing Ul 94v-0 | Rapid Electronics |
| MOLEX 39-01-2185 Receptacle Housing 2 Row UL94V-0 18p Receptacle Housing 2 Row UL94V-0 18p | Compona |
