39013089 Mini-Fit Jr. by Molex

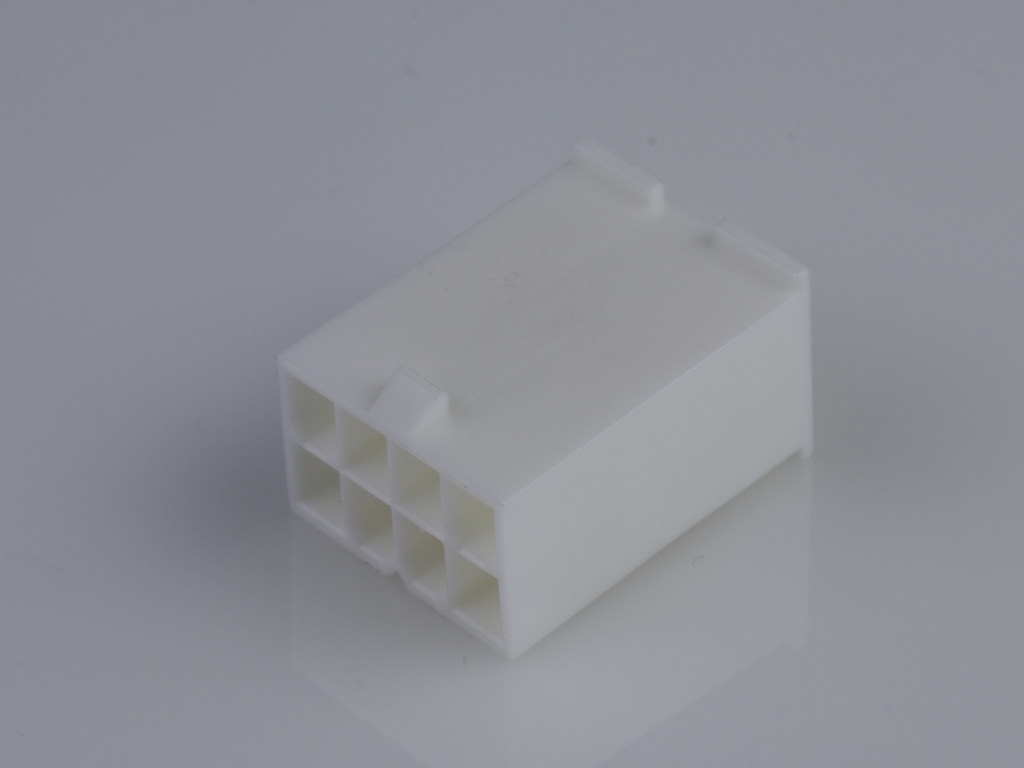

Mini-Fit Jr. Plug Housing, Dual Row, 8 Circuits, UL 94V-0, without Panel Mounting Ears, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-01-3089,
0039013089, 5559-08P1-210 |
Where to Buy
Prices starting from US$0.28
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.28
|
37,952
in stock
|
Buy Now |
|
Farnell
from US$0.48
|
8,740
in stock
|
Buy Now |
|
TTI Europe
from US$0.31
|
7,400
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.30
|
6,400
in stock
|
Buy Now |
|
element14
from US$0.39
|
5,196
in stock
|
Buy Now |
|
Schukat Electronic
from US$0.40
|
2,900
in stock
|
Buy Now |
|
Newark Electronics
from US$0.42
|
259
in stock
|
Buy Now |
|
TME
from US$0.42
|
193
in stock
|
Buy Now |
|
RS
from US$0.73
|
70
in stock
|
Buy Now |
|
|
RS Americas
from US$0.58
|
46
in stock
|
Buy Now |
|
Offical Electronic
-
|
5,234
in stock
|
Buy Now |
|
Avnet America
from US$0.37
|
0
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.68
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.34
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.32
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 8 |
| Color Resin | Natural |
| Flammability | 94V-0 |
| Gender | Plug |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 2.400/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MINIFITJRPLG FREEHNG /DH V-0 CKT | Heilind Americas |
| CONNECTOR HOUSING, PLUG, 8POS, 4.2MM | Farnell |
| MINI-FIT JR. PLUG HOUSING 8CIR | TTI Europe |
| MINI-FIT JR PLG 08P 94V-0 FREE | TTI Americas |
| Female Housing 8-pole 2-row V-0 N | Schukat Electronic |
| Connector Housing, Plug, 8Pos | Newark Electronics |
| Connector: wire-wire | TME |
| Molex 39-01-3089 Connector Housing | RS |
| MINI-FIT JR. SERIES 4.2MM PITCH 8 WAY 2ROW MALE STRAIGHT PCB HOUSING 5559 | RS Americas |
| Conn Housing Wire to Board Housing Plug 8 POS 4.2mm ST Cable Mount | Avnet America |
| Molex 39013089 Mini-fit Jr. Plug 8-pin 4.2mm Dual Row Ul 94v-0 Natural | Rapid Electronics |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 8 Rastermaß: 4.2 mm 39013089 1 St. Bag | Conrad |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 39013089?
Additional datasheets, footprints and schematics for 39013089 are listed on our Part Details page. You can also find images and similar parts to 39013089 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 39013089 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 39013089 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 39013089 fall under?
The 39013089 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 39013089 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 39013089 you can contact the distributor directly for product support, shipping queries etc.
Is the 39013089 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 39013089 have stock available?
Authorised distributors including Heilind Americas, Farnell, TTI Europe, TTI Americas and element14 have stock available or on a lead time for 39013089.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 39013089 often in real-time on the comparison pages.
What if I can't find stock of 39013089?
You can fill out our help required form which you can use to request a quote for 39013089 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
