39013103 Mini-Fit Jr. by Molex

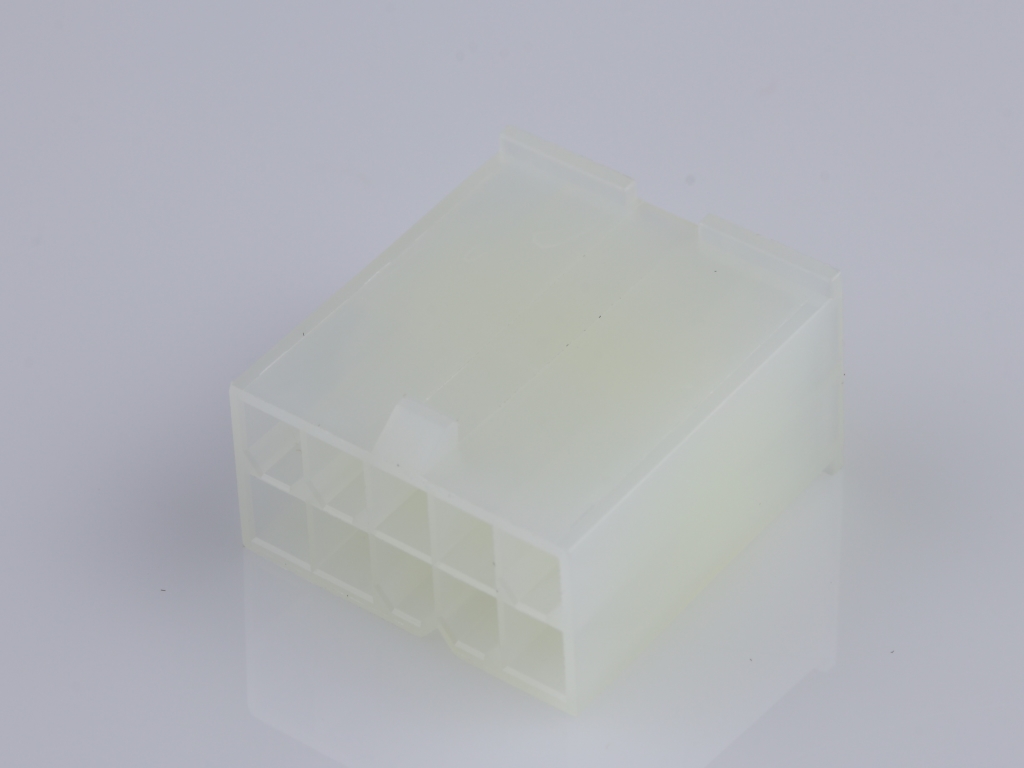

Mini-Fit Jr. Plug Housing, Dual Row, 10 Circuits, UL 94V-2, without Panel Mounting Ears, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-01-3103,
0039013103, 5559-10P1 |
Where to Buy
Prices starting from US$0.17
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.17
|
19,444
in stock
|
Buy Now |
|
TTI Asia
from US$0.21
|
12,000
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.18
|
3,646
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.39
|
2,723
in stock
|
Buy Now |
|
Newark Electronics
from US$0.34
|
2,382
in stock
|
Buy Now |
|
element14
from US$0.36
|
2,190
in stock
|
Buy Now |
|
Farnell
from US$0.35
|
2,190
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.86
|
292
in stock
|
Buy Now |
|
Conrad
from US$0.37
|
292
in stock
|
Buy Now |
|
RS Americas
from US$0.33
|
238
in stock
|
Buy Now |
|
TME
from US$0.42
|
80
in stock
|
Buy Now |
|
Offical Electronic
-
|
249
in stock
|
Buy Now |
|
Rutronik
from US$0.28
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.21
|
0
in stock
|
Buy Now |
|
Compona
from US$0.32
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.32
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 10 |
| Color Resin | Natural |
| Flammability | 94V-2 |
| Gender | Plug |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 2.830/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
