39013105 Mini-Fit Jr. by Molex

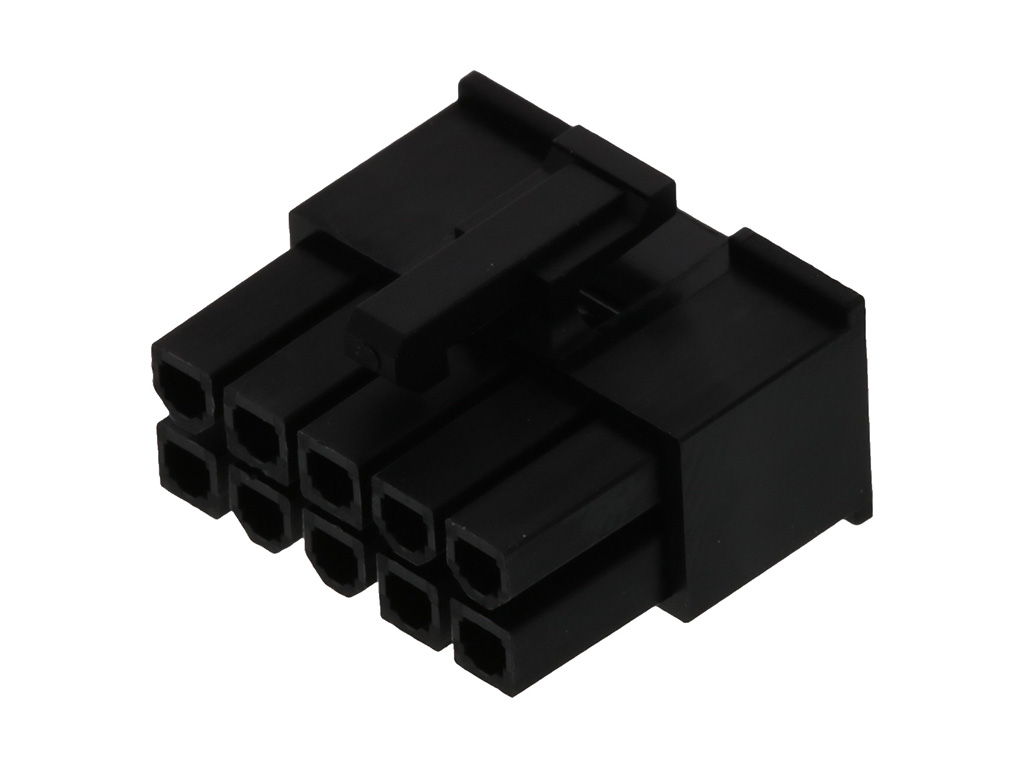

Mini-Fit Jr. Receptacle Housing, Dual Row, 10 Circuits, UL 94V-2, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-01-3105,
0039013105, 5557-10R-BL |
Where to Buy
Prices starting from US$0.10
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.29
|
6,040
in stock
|
Buy Now |
|
Heilind Americas
from US$0.29
|
3,166
in stock
|
Buy Now |
|
element14
from US$0.39
|
1,305
in stock
|
Buy Now |
|
Farnell
from US$0.37
|
1,305
in stock
|
Buy Now |
|
Newark Electronics
from US$0.10
|
36
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.52
|
17
in stock
|
Buy Now |
|
Conrad
from US$0.60
|
17
in stock
|
Buy Now |
|
RS Americas
from US$0.41
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.25
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.49
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 10 |
| Color Resin | Black |
| Flammability | 94V-2 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 2.455/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MINI-FIT JR REC 02X05P 94V-2 | TTI Americas |
| 10CKT MINFIT RECEPTACLE T 555 10RBL | Heilind Americas |
| CONNECTOR HOUSING, RCPT, 10POS, 4.2MM | element14 |
| 10Ckt Minfit Receptacle T 555710Rbl Rohs Compliant: Yes |Molex 39-01-3105 | Newark Electronics |
| Molex 39013105 Mini-fit Jr. 10-pin Socket Housing Dual Row Black | Rapid Electronics |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 10 39013105 1 St. Bulk | Conrad |
| 10CKT MINFIT RECEPTACLE T 555710RBL | RS Americas |
