39013149 Mini-Fit Jr. by Molex

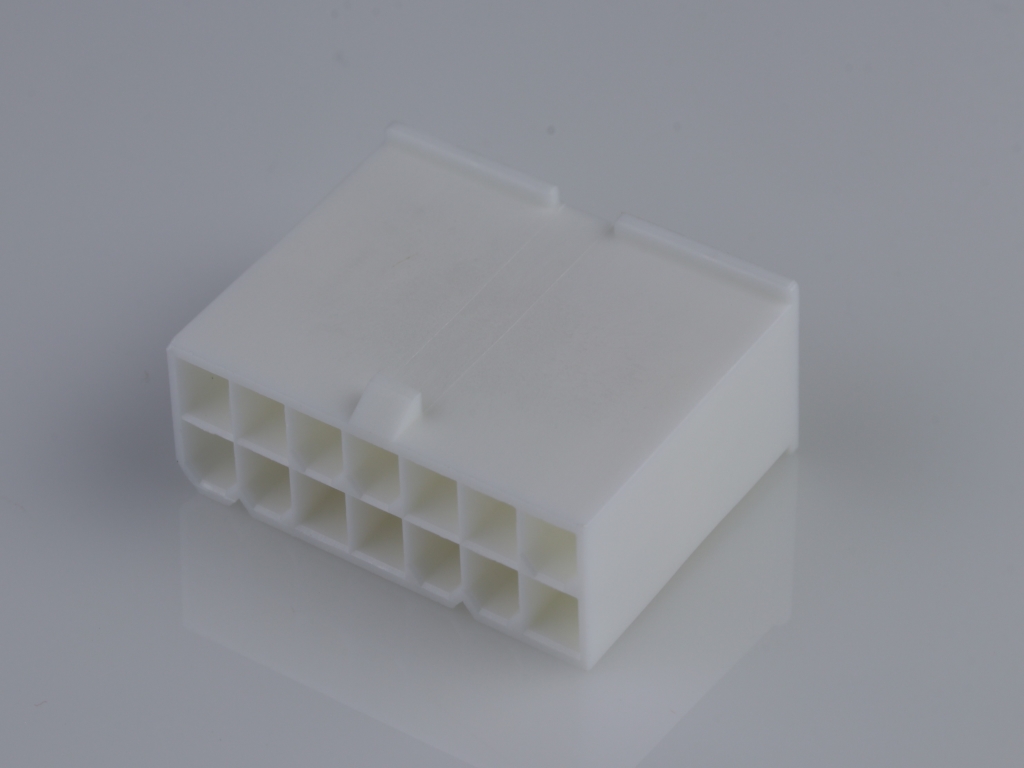

Mini-Fit Jr. Plug Housing, Dual Row, 14 Circuits, UL 94V-0, without Panel Mounting Ears, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-01-3149,
0039013149, 5559-14P1-210 |
Where to Buy
Prices starting from US$0.37
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.51
|
9,550
in stock
|
Buy Now |
|
Conrad
from US$0.79
|
9,550
in stock
|
Buy Now |
|
Farnell
from US$0.73
|
8,595
in stock
|
Buy Now |
|
Newark Electronics
from US$0.58
|
6,116
in stock
|
Buy Now |
|
element14
from US$0.52
|
6,116
in stock
|
Buy Now |
|
Heilind Americas
from US$0.41
|
3,905
in stock
|
Buy Now |
|
TTI Americas
from US$0.45
|
1,506
in stock
|
Buy Now |
|
RS
from US$0.91
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.55
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.74
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.37
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.64
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 14 |
| Color Resin | Natural |
| Flammability | 94V-0 |
| Gender | Plug |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 3.933/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-wire | TME |
| Molex Stiftgehäuse-Kabel 39013149 1 St. Bulk | Conrad |
| CONNECTORS | Farnell |
| Connector Housing, Plug, 14Pos Rohs Compliant: Yes |Molex 39-01-3149 | Newark Electronics |
| CONNECTOR HOUSING, PLUG, 14POS | element14 |
| MINIFITJRPLG FREEHNG /DH V-0 4CKT | Heilind Americas |
| MINI-FIT JR HSG 02X07P 94V-0 | TTI Americas |
| Molex 39-01-3149 Housing | RS |
| Conn Housing M 14 POS 4.2mm Crimp ST Cable Mount Bag | Avnet America |
| MINIFITJRPLG FREEHNG /DH V-0 14CKT | RS Americas |
