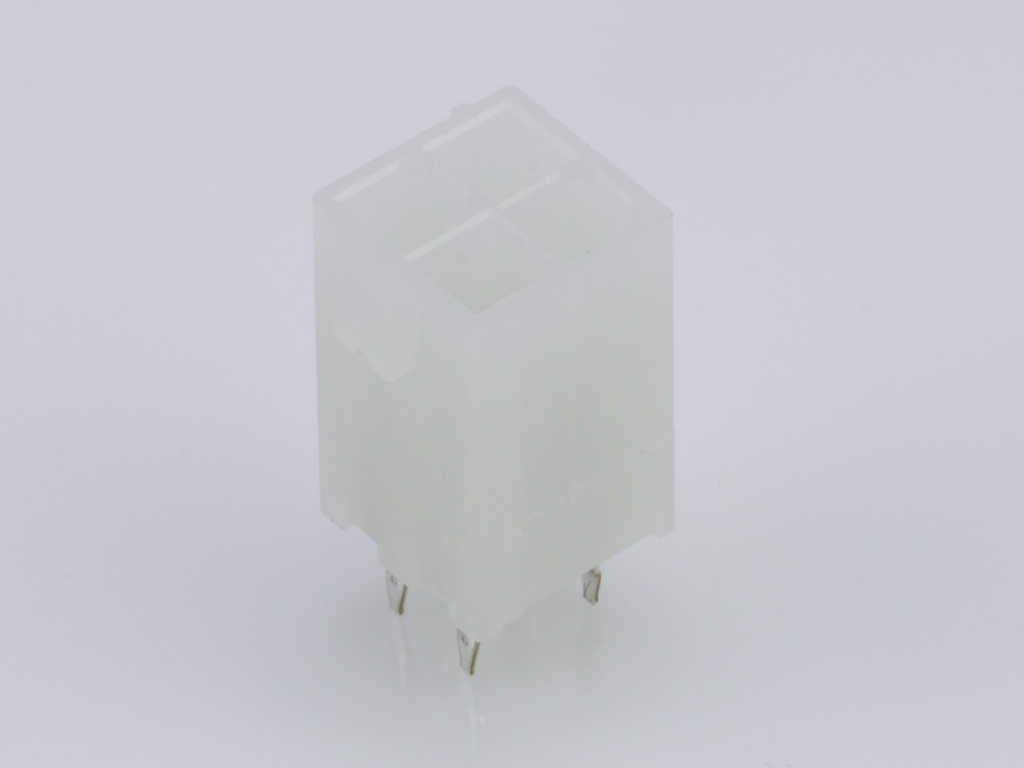

39281043 Mini-Fit Jr. by Molex
Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 4 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-28-1043,
0039281043, 5566-04A |
Where to Buy
Prices starting from US$0.17
| Distributor | Stock | ||
|---|---|---|---|
|
Rutronik
from US$0.17
|
119,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.41
|
58,461
in stock
|
Buy Now |
|
element14
from US$0.38
|
45,854
in stock
|
Buy Now |
|
Farnell
from US$0.60
|
43,145
in stock
|
Buy Now |
|
TTI Americas
from US$0.32
|
40,571
in stock
|
Buy Now |
|
Heilind Americas
from US$0.32
|
39,160
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.32
|
26,000
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.24
|
11,975
in stock
|
Buy Now |
|
RS
from US$0.65
|
8,244
in stock
|
Buy Now |
|
TME
from US$0.34
|
8,043
in stock
|
Buy Now |
|
EME
from US$0.26
|
5,080
in stock
|
Buy Now |
|
Schukat Electronic
from US$0.21
|
1,900
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.54
|
1,729
in stock
|
Buy Now |
|
Conrad
from US$0.59
|
1,729
in stock
|
Buy Now |
|
Micros
from US$0.22
|
1,000
in stock
|
Buy Now |
|
CoreStaff
from US$0.33
|
934
in stock
|
Buy Now |
|
|
RS Americas
from US$0.58
|
751
in stock
|
Buy Now |
|
Offical Electronic
-
|
9,676
in stock
|
Buy Now |
|
Tongyida Electronic
-
|
6,000
in stock
|
Buy Now |
|
Avnet America
from US$0.35
|
0
in stock
|
Buy Now |
|
Compona
from US$0.19
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.29
|
0
in stock
|
Buy Now |
|
Walker Component Group
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 0.951/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.889µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 04P Mini-Fit Header 2 ROW W/O PEGS | Rutronik |
| New Mini Fit Header Assy 4Ckt Rohs Compliant: Yes |Molex 39-28-1043 | Newark Electronics |
| CONN, HDR, 4POS, 2ROW, 4.2MM | element14 |
| CONN, HEADER, 4POS, 2ROW, 4.2MM | Farnell |
| MINI-FIT JR HDR 04P 94V-2 | TTI Americas |
| NEW MINI FIT HEADER ASSY 4CKT | Heilind Americas |
| MINI-FIT JR. HEADER 94V-2 | TTI Asia |
| Molex 39-28-1043 PCB Header | RS |
| Connector: wire-board | TME |
| PCB Header 2-row 4-pole V-2 | Schukat Electronic |
| Molex 39281043 Mini-fit Jr Vertical Header 4 Pins 4.2mm Pitch | Rapid Electronics |
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 4 Rastermaß: 4.2 mm 39281043 1 St. Bag | Conrad |
| Socket | Micros |
| VERTICAL HEADER ASSEMBLIES-TIN PLATD 94V-2 4 CIRCUITS | RS Americas |
| Pin Header, Vertical, 94V-2, Power, Wire-to-Board, 4.2 mm, 2 Rows, 4 Contacts | Avnet America |
| MOLEX 39-28-1043 Header 2 Row 180° w/o PCB Lock 4p 94V-2 Tin Plating w/o Drain Holes | Compona |
