39281063 Mini-Fit Jr. by Molex

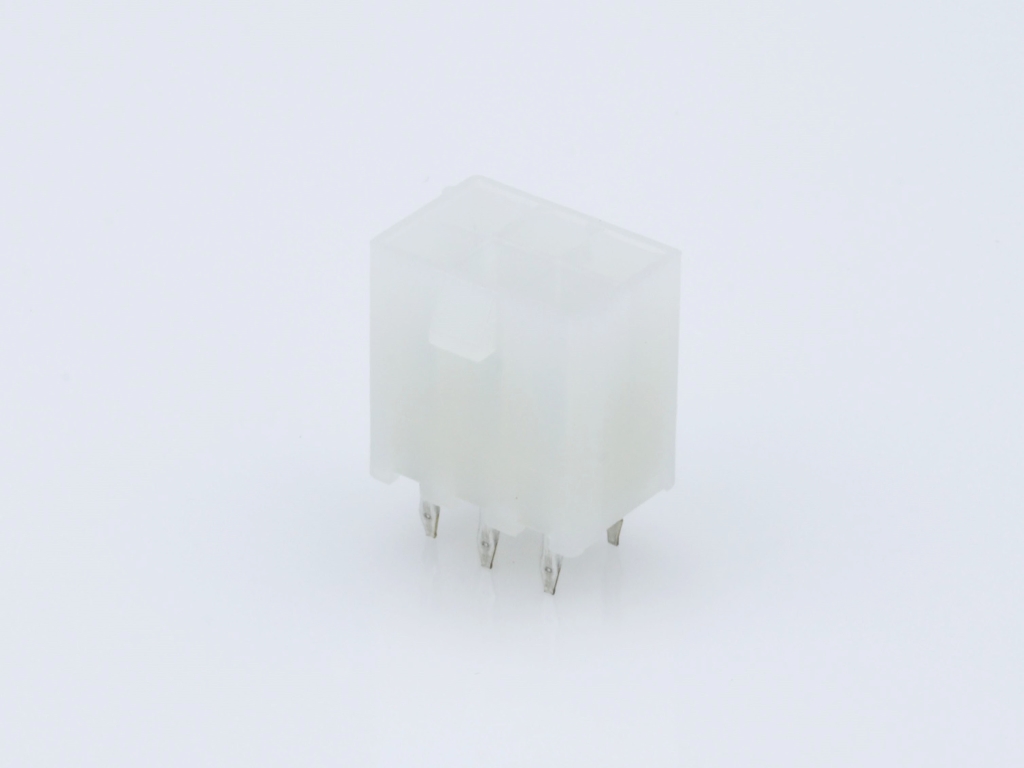

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 6 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-28-1063,
0039281063, 5566-06A |
Where to Buy
Prices starting from US$0.25
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.50
|
135,595
in stock
|
Buy Now |
|
Farnell
from US$0.66
|
56,072
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.40
|
51,500
in stock
|
Buy Now |
|
Heilind Americas
from US$0.41
|
46,337
in stock
|
Buy Now |
|
element14
from US$0.56
|
22,072
in stock
|
Buy Now |
|
Rutronik
from US$0.25
|
20,500
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.32
|
11,713
in stock
|
Buy Now |
|
EME
from US$0.35
|
11,340
in stock
|
Buy Now |
|
TME
from US$0.37
|
10,209
in stock
|
Buy Now |
|
RS
from US$0.64
|
4,533
in stock
|
Buy Now |
|
|
RS Americas
from US$0.66
|
2,406
in stock
|
Buy Now |
|
CoreStaff
from US$0.56
|
1,788
in stock
|
Buy Now |
|
Schukat Electronic
from US$0.30
|
1,050
in stock
|
Buy Now |
|
Newark Electronics
from US$0.56
|
1,041
in stock
|
Buy Now |
|
Rapid Electronics
from US$1.11
|
581
in stock
|
Buy Now |
|
Conrad
from US$0.88
|
581
in stock
|
Buy Now |
|
Micros
from US$0.30
|
500
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
198
in stock
|
Buy Now |
|
Offical Electronic
-
|
15
in stock
|
Buy Now |
|
Avnet America
from US$0.47
|
0
in stock
|
Buy Now |
|
Compona
from US$0.30
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.41
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 1.410/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.889µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MINI-FIT JR HDR 06P 94V-2 | TTI Americas |
| CONN, HEADER, 6POS, 2ROW, 4.2MM | Farnell |
| MINI-FIT JR. HEADER 94V-2 | TTI Europe |
| NEW MINI FIT HEADER ASSY 6CKT | Heilind Americas |
| CONN, HDR, 6POS, 2ROW, 4.2MM | element14 |
| 06P Mini-Fit Header 2 ROW | Rutronik |
| Connector: wire-board | TME |
| Molex 39-28-1063 PCB Header | RS |
| VERTICAL HEADER ASSEMBLIES-TIN PLATD 94V-2 6 CIRCUITS | RS Americas |
| PCB Header 2-row 6-pole V-2 | Schukat Electronic |
| Connector, Header, 6Pos, 2Row, 4.2Mm | Newark Electronics |
| Molex 39281063 Mini-fit Jr. Sil Socket 6 Pin 4.2mm Pitch Tin Finish | Rapid Electronics |
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 6 Rastermaß: 4.2 mm 39281063 1 St. Bag | Conrad |
| Socket | Micros |
| Conn Power Header 6 POS 4.2mm Solder ST Through Hole 6 Terminal 1 Port Bag | Avnet America |
| MOLEX 39-28-1063 Header 2 Row 180° w/o PCB Lock 6p 94V-2 Tin Plating w/o Drain Holes | Compona |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 39281063?
Additional datasheets, footprints and schematics for 39281063 are listed on our Part Details page. You can also find images and similar parts to 39281063 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 39281063 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 39281063 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 39281063 fall under?
The 39281063 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 39281063 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 39281063 you can contact the distributor directly for product support, shipping queries etc.
Is the 39281063 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 39281063 have stock available?
Authorised distributors including TTI Americas, Farnell, TTI Europe, Heilind Americas and element14 have stock available or on a lead time for 39281063.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 39281063 often in real-time on the comparison pages.
What if I can't find stock of 39281063?
You can fill out our help required form which you can use to request a quote for 39281063 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
