39281083 Mini-Fit Jr. by Molex

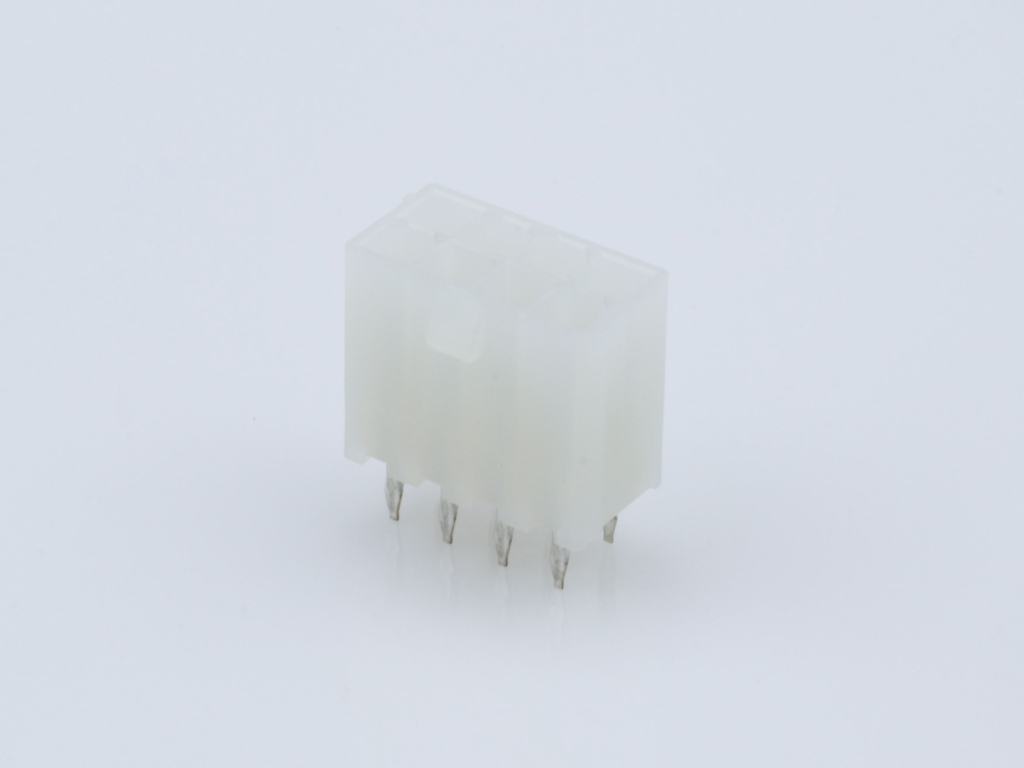

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 8 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-28-1083,
0039281083, 5566-08A |
Where to Buy
Prices starting from US$0.22
| Distributor | Stock | ||
|---|---|---|---|
|
Rutronik
from US$0.22
|
137,000
in stock
|
Buy Now |
|
TTI Americas
from US$0.70
|
68,023
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.36
|
32,300
in stock
|
Buy Now |
|
Heilind Europe
from US$0.26
|
32,048
in stock
|
Buy Now |
|
Farnell
from US$0.84
|
31,869
in stock
|
Buy Now |
|
Newark Electronics
from US$0.80
|
13,538
in stock
|
Buy Now |
|
element14
from US$0.57
|
12,871
in stock
|
Buy Now |
|
|
Heilind Americas
from US$0.58
|
11,218
in stock
|
Buy Now |
|
TME
from US$0.37
|
3,904
in stock
|
Buy Now |
|
RS Americas
from US$0.93
|
2,400
in stock
|
Buy Now |
|
Schukat Electronic
from US$0.27
|
1,775
in stock
|
Buy Now |
|
Micros
from US$0.26
|
1,000
in stock
|
Buy Now |
|
|
RS
from US$1.41
|
125
in stock
|
Buy Now |
|
EME
from US$0.31
|
40
in stock
|
Buy Now |
|
Offical Electronic
-
|
11,766
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
235
in stock
|
Buy Now |
|
Avnet America
from US$0.73
|
0
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.43
|
0
in stock
|
Buy Now |
|
Compona
from US$0.23
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.49
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 1.775/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.889µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 08P Mini-Fit Header 2 ROW W/O PEGS | Rutronik |
| MINI-FIT JR HDR 08P 94V-2 | TTI Americas |
| MINI-FIT JR. HEADER 94V-2 | TTI Europe |
| NEW MINI FIT HEADER ASSY 8CKT | Heilind Europe |
| PIN HEADERS | Farnell |
| New Mini Fit Header Assy 8Ckt Rohs Compliant: Yes |Molex 39-28-1083 | Newark Electronics |
| CONNECTOR, HEADER, 8POS, 2ROW, 4.2MM | element14 |
| Connector: wire-board | TME |
| VERTICAL HEADER ASSEMBLIES-TIN PLATD 94V-2 8 CIRCUITS | RS Americas |
| PCB Header 2-row 8-pole V-2 | Schukat Electronic |
| Socket | Micros |
| Molex 39-28-1083 PCB Header | RS |
| Pin Header, Vertical, 94V-2, Power, Wire-to-Board, 4.2 mm, 2 Rows, 8 Contacts | Avnet America |
| Molex 39281083 Mini-fit Jr. Sil Socket 8-pin 4.2mm Pitch PCB Mount | Rapid Electronics |
| MOLEX 39-28-1083 Header 2 Row 180° w/o PCB Lock 8p 94V-2 Tin Plating w/o Drain Holes | Compona |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 39281083?
Additional datasheets, footprints and schematics for 39281083 are listed on our Part Details page. You can also find images and similar parts to 39281083 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 39281083 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 39281083 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 39281083 fall under?
The 39281083 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 39281083 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 39281083 you can contact the distributor directly for product support, shipping queries etc.
Is the 39281083 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 39281083 have stock available?
Authorised distributors including Rutronik, TTI Americas, TTI Europe, Heilind Europe and Farnell have stock available or on a lead time for 39281083.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 39281083 often in real-time on the comparison pages.
What if I can't find stock of 39281083?
You can fill out our help required form which you can use to request a quote for 39281083 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
