39281123 Mini-Fit Jr. by Molex

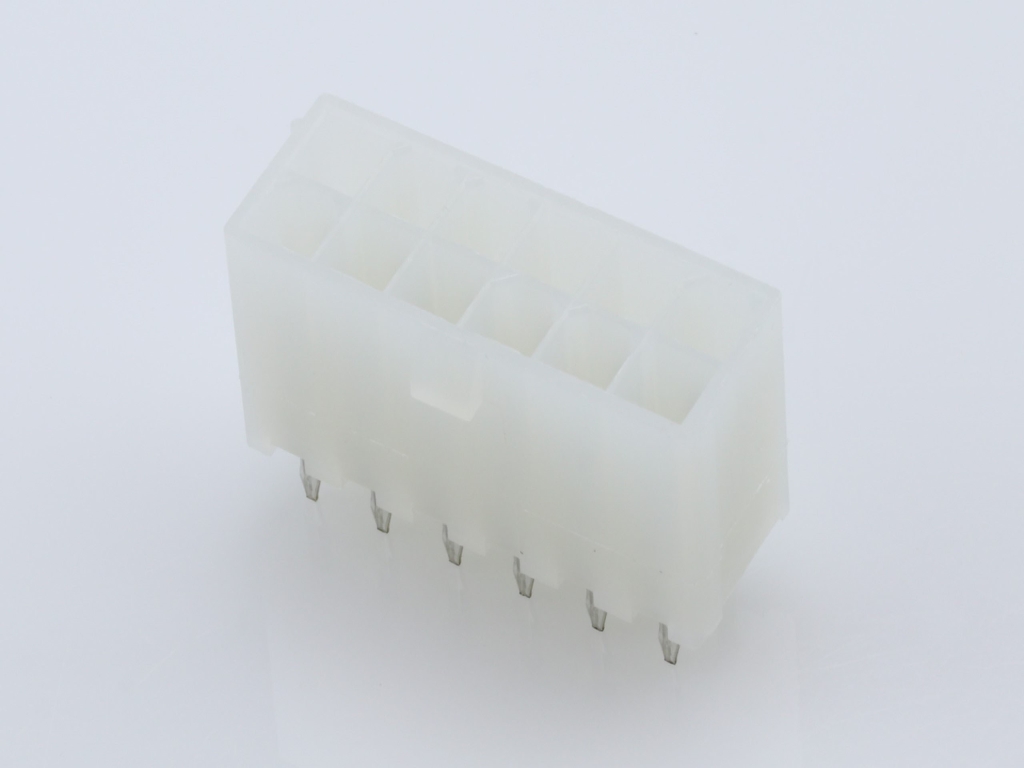

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 12 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-28-1123,
0039281123, 5566-12A |
Where to Buy
Prices starting from US$0.38
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$0.61
|
65,600
in stock
|
Buy Now |
|
Rutronik
from US$0.39
|
58,400
in stock
|
Buy Now |
|
Newark Electronics
from US$0.76
|
36,648
in stock
|
Buy Now |
|
Avnet America
from US$0.64
|
36,648
in stock
|
Buy Now |
|
Heilind Americas
from US$0.71
|
27,688
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.77
|
7,240
in stock
|
Buy Now |
|
Farnell
from US$1.01
|
7,203
in stock
|
Buy Now |
|
Sager
from US$0.67
|
6,514
in stock
|
Buy Now |
|
TME
from US$0.72
|
2,268
in stock
|
Buy Now |
|
EME
from US$4.07
|
1,800
in stock
|
Buy Now |
|
RS
from US$1.59
|
800
in stock
|
Buy Now |
|
Schukat Electronic
from US$0.43
|
775
in stock
|
Buy Now |
|
Conrad
from US$0.45
|
545
in stock
|
Buy Now |
|
|
RS Americas
from US$0.98
|
475
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.53
|
140
in stock
|
Buy Now |
|
Avnet Abacus
-
|
32,400
in stock
|
Buy Now |
|
Offical Electronic
-
|
3,990
in stock
|
Buy Now |
|
Compona
from US$0.38
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.69
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 12 |
| Circuits Maximum | 12 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-2 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 3.224/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.889µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
