39288040 Mini-Fit Jr. by Molex

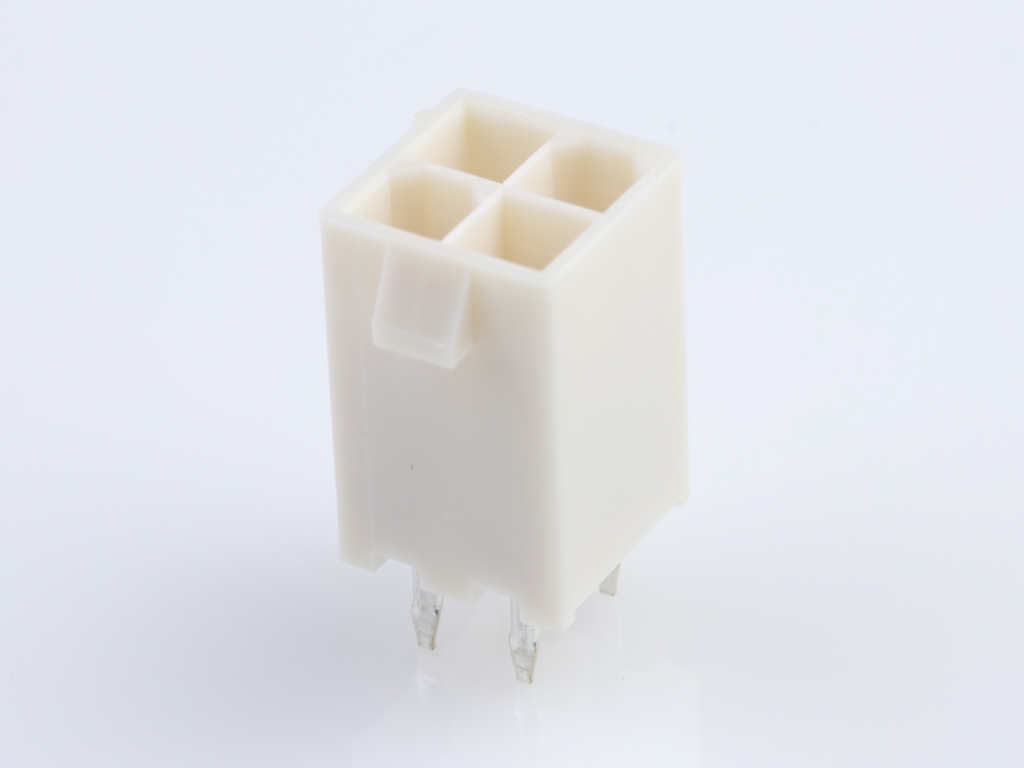

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 4 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
39-28-8040,
0039288040, 5566-04A-210 |
Where to Buy
Prices starting from US$0.28
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.67
|
76,466
in stock
|
Buy Now |
|
TTI Europe
from US$0.42
|
36,100
in stock
|
Buy Now |
|
Rutronik
from US$0.28
|
28,500
in stock
|
Buy Now |
|
element14
from US$0.65
|
19,214
in stock
|
Buy Now |
|
Farnell
from US$0.70
|
19,038
in stock
|
Buy Now |
|
Heilind Europe
from US$0.30
|
7,450
in stock
|
Buy Now |
|
|
Heilind Americas
from US$0.44
|
6,635
in stock
|
Buy Now |
|
TME
from US$0.39
|
4,218
in stock
|
Buy Now |
|
EME
from US$0.38
|
1,540
in stock
|
Buy Now |
|
Schukat Electronic
from US$0.31
|
175
in stock
|
Buy Now |
|
RS
from US$1.29
|
50
in stock
|
Buy Now |
|
Avnet America
from US$0.51
|
0
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.62
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.91
|
0
in stock
|
Buy Now |
|
Compona
from US$0.28
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.53
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.44
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 1.015/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.889µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| New Mini Fit Header Assy 4Ckt Rohs Compliant: Yes |Molex 39-28-8040 | Newark Electronics |
| MINI-FIT JR. HEADER 94V-0 4CT | TTI Europe |
| 04P Mini-Fit Header 2 ROW W/O PEGS | Rutronik |
| CONNECTOR, HEADER, 4POS, 2ROW, 4.2MM | element14 |
| NEW MINI FIT HEADER ASSY 4CKT 5566-04A-210 | Heilind Europe |
| Connector: wire-board | TME |
| PCB Header 2-row 4-pole V-0 | Schukat Electronic |
| Molex 39-28-8040 Connector Housing | RS |
| Pin Header, Vertical, 94V-0, Power, Wire-to-Board, 4.2 mm, 2 Rows, 4 Contacts | Avnet America |
| Molex 39288040 Mini-fit Jr. 4-pin Sil Socket 4.2mm Spacing Tin Bag | Rapid Electronics |
| MINI-FIT JR. SERIES 4.2MM PITCH 4 WAY 2ROW MALE STRAIGHT PCB HOUSING 5566 | RS Americas |
| MOLEX 39-28-8040 Header 2 Row 180° w/o PCB Lock 4p 94V-0 Tin Plating w/o Drain Holes | Compona |
| MINI-FIT JR HDR 04P 94V-0 | TTI Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 39288040?
Additional datasheets, footprints and schematics for 39288040 are listed on our Part Details page. You can also find images and similar parts to 39288040 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 39288040 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 39288040 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 39288040 fall under?
The 39288040 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 39288040 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 39288040 you can contact the distributor directly for product support, shipping queries etc.
Is the 39288040 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 39288040 have stock available?
Authorised distributors including Newark Electronics, TTI Europe, Rutronik, element14 and Farnell have stock available or on a lead time for 39288040.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 39288040 often in real-time on the comparison pages.
What if I can't find stock of 39288040?
You can fill out our help required form which you can use to request a quote for 39288040 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
